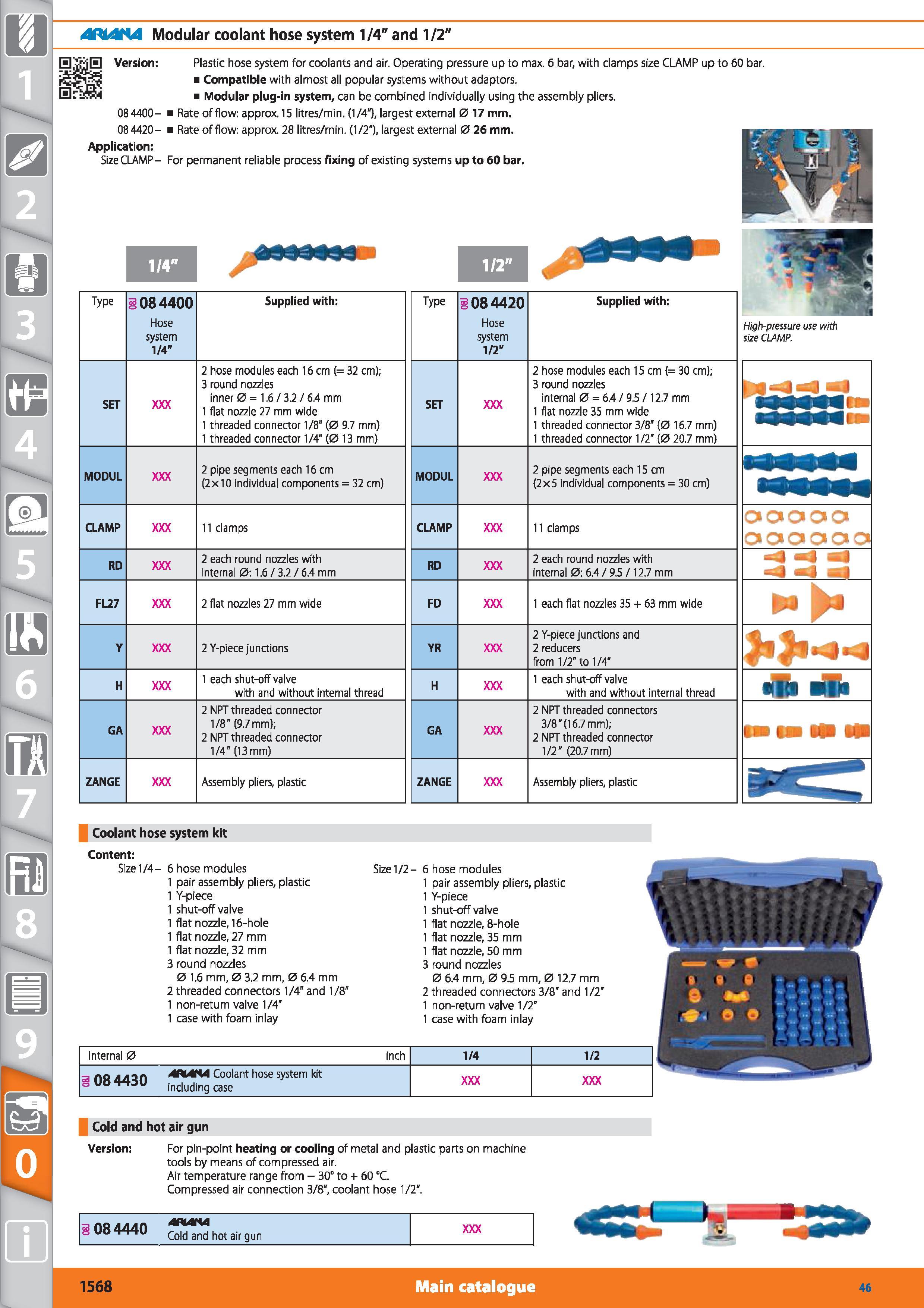

1 4RI4N4 Modular coolant hose system 1/4" and 1/2" Version Plastic hose system for coolants and air. Operating pressure up to max. 6 bar, with clamps size CLAMP up to 60 bar. Compatible with almost all popular systems without adaptors. Modular plug-in system, can be combined individually using the assembly pliers. 08 4400- Rate of flow approx. 15 litres/min. (1/4"), largest external 0 17 mm. 08 4420- Rate of flow approx. 28 litres/min. (1/2"), largest external 0 26 mm. Application Size CLAMP- For permanent reliable process fixing of existing systems up to 60 bar. Type 1084400 Flose system 1/4" Supplied with Type 1084420 Flose system 1/2" Supplied with '1 High-pressure use with size CLAMP. SET 2 hose modules each 16 cm (= 32 cm); 3 round nozzles inner 0 1.6 / 3.2 / 6.4 mm 1 flat nozzle 27 mm wide 1 threaded connector 1/8" (0 9.7 mm) 1 threaded connector 1/4” (0 13 mm) SET 2 hose modules each 15 cm (= 30 cm); 3 round nozzles internal 0 6.4 / 9.5 / 12.7 mm 1 flat nozzle 35 mm wide 1 threaded connector 3/8” (0 16.7 mm) 1 threaded connector 1/2” (0 20.7 mm) SmmSv MODUL 2 pipe segments each 16 cm (2x10 individual components 32 cm) MODUL 2 pipe segments each 15 cm (2x5 individual components 30 cm) "SSSSS CLAMP 11 clamps CLAMP 11 clamps oc oc c ooaooc RD 2 each round nozzles with internal 0:1.6/ 3.2/6.4 mm RD 2 each round nozzles with internal 0:6.4/9.5 /12.7 mm FL27 2 flat nozzles 27 mm wide FD 1 each flat nozzles 35 + 63 mm wide > Y 2 Y-piece junctions YR 2 Y-piece junctions and 2 reducers from 1/2” to 1/4” H 1 each shut-off valve with and without internal thread H 1 each shut-off valve with and without internal thread mRi w GA 2 NPT threaded connector 1/8” (9.7 mm); 2 NPT threaded connector 1/4” (13 mm) GA 2 NPT threaded connectors 3/8 "(16.7 mm); 2 NPT threaded connector 1/2" (20.7mm) 1 1 3 1 ZANGE Assembly pliers, plastic ZANGE Assembly pliers, plastic Coolant hose system kit Content Size 1/4- 6 hose modules 1 pair assembly pliers, plastic 1 Y-piece 1 shut-off valve 1 flat nozzle, 16-hole 1 flat nozzle, 27 mm 1 flat nozzle, 32 mm 3 round nozzles 0 1.6 mm, 0 3.2 mm, 0 6.4 mm 2 threaded connectors 1/4” and 1/8" 1 non-return valve 1/4” 1 case with foam inlay Size 1/2- 6 hose modules 1 pair assembly pliers, plastic 1 Y-piece 1 shut-off valve 1 flat nozzle, 8-hole 1 flat nozzle, 35 mm 1 flat nozzle, 50 mm 3 round nozzles 0 6.4 mm, 0 9.5 mm, 0 12.7 mm 2 threaded connectors 3/8” and 1/2" 1 non-return valve 1/2” 1 case with foam inlay Internal 0 inch 1/4 1/2 AA n Coolant hose system kit including case Cold and hot air gun Version For pin-point heating or cooling of metal and plastic parts on machine tools by means of compressed air. Air temperature range from - 30° to + 60 °C. Compressed air connection 3/8", coolant hose 1/2". 084440 4M4N4 Cold and hot air gun 1568 Main catalogue
