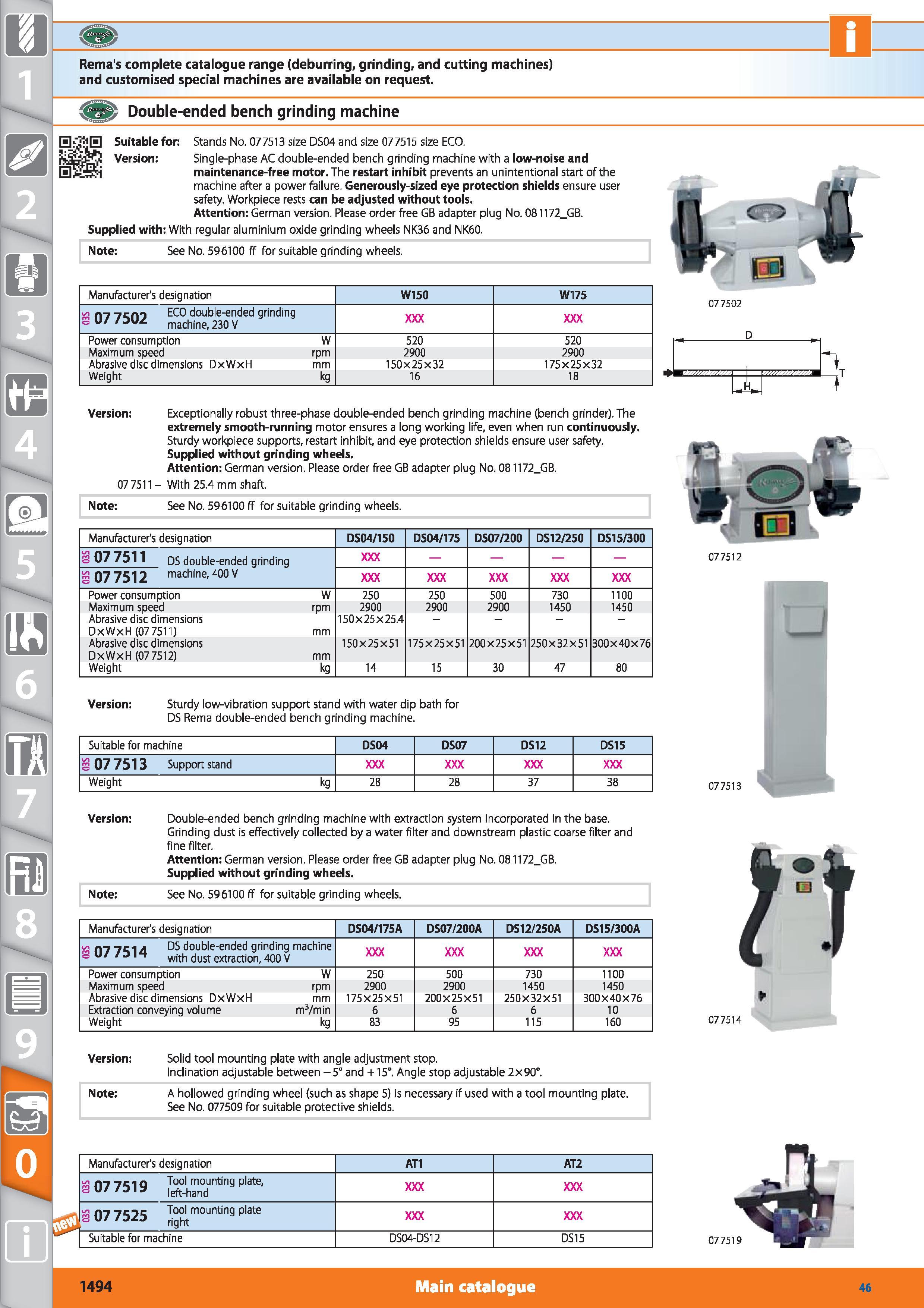

Rema's complete catalogue range (deburring, grinding, and cutting machines) and customised special machines are available on request. Double-ended bench grinding machine Suitable for Stands No. 077513 size DS04 and size 077515 size ECO. Version Single-phase AC double-ended bench grinding machine with a low-noise and maintenance-free motor. The restart inhibit prevents an unintentional start of the machine after a power failure. Generously-sized eye protection shields ensure user safety. Workpiece rests can be adjusted without tools. Attention German version. Please order free GB adapter plug No. 081172_GB. Supplied with With regular aluminium oxide grinding wheels NK36 and NK60. Note See No. 596100 ff for suitable grinding wheels. & Manufacturer's designation W150 W175 i/i n-7 7cni ECO double-ended grinding 3077502 machine, 230 V Power consumption W 520 520 Maximum speed rpm 2900 2900 Abrasive disc dimensions DxWxH mm 150x25x32 175x25x32 Weight kg 16 18 077502 Version Exceptionally robust three-phase double-ended bench grinding machine (bench grinder). The extremely smooth-running motor ensures a long working life, even when run continuously. Sturdy workpiece supports, restart inhibit, and eye protection shields ensure user safety. Supplied without grinding wheels. Attention German version. Please order free GB adapter plug No. 081172_GB. 07 7511 - With 25.4 mm shaft. Note See No. 596100 ff for suitable grinding wheels. Manufacturer's designation DS04/150 DS04/175 DS07/200 DS12/250 DS15/300 S 07 7511 DS double-ended grinding ifi g7 7512 machine, 400 V Power consumption W 250 250 500 730 1100 Maximum speed rpm 2900 2900 2900 1450 1450 Abrasive disc dimensions DxWxH (077511) mm 150x25x25.4 Abrasive disc dimensions DxWxH (077512) mm 150x25x51 175x25x51 200x25x51 250x32x51 300x40x76 Weight kg 14 15 30 47 80 077512 m Version Sturdy low-vibration support stand with water dip bath for DS Rema double-ended bench grinding machine. Suitable for machine DS04 DS07 DS12 DS15 g 07 7513 Support stand Weight kg 28 28 37 38 077513 Version Double-ended bench grinding machine with extraction system incorporated in the base. Grinding dust is effectively collected by a water filter and downstream plastic coarse filter and fine filter. Attention German version. Please order free GB adapter plug No. 081172_GB. Supplied without grinding wheels. Note See No. 596100 ff for suitable grinding wheels. Manufacturer's designation DS04/175A DS07/200A DS12/250A DS15/300A n-j yei a DS double-ended grinding machine with dust extraction, 400 V Power consumption W 250 500 730 1100 Maximum speed Abrasive disc dimensions DxWxH rpm mm 2900 175X25X51 2900 200X25X51 1450 250X32X51 1450 300X40X76 Extraction conveying volume m3/min 6 6 6 10 Weight kg 83 95 115 160 077514 Version Solid tool mounting plate with angle adjustment stop. Inclination adjustable between -5° and +15°. Angle stop adjustable 2x90°. Note A hollowed grinding wheel (such as shape 5) is necessary if used with a tool mounting plate. See No. 077509 for suitable protective shields. Manufacturer's designation AT1 AT2 un n-7 -7 c i n Tool mounting plate, o 07 7519 left-hand 3 r7mp Tool mounting plate o u/ right Suitable for machine DS04-DS12 DS15 1494 Main catalogue Hoffmann Group 46 077519
