1475 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1475

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1475 1475 ENG Lab2u

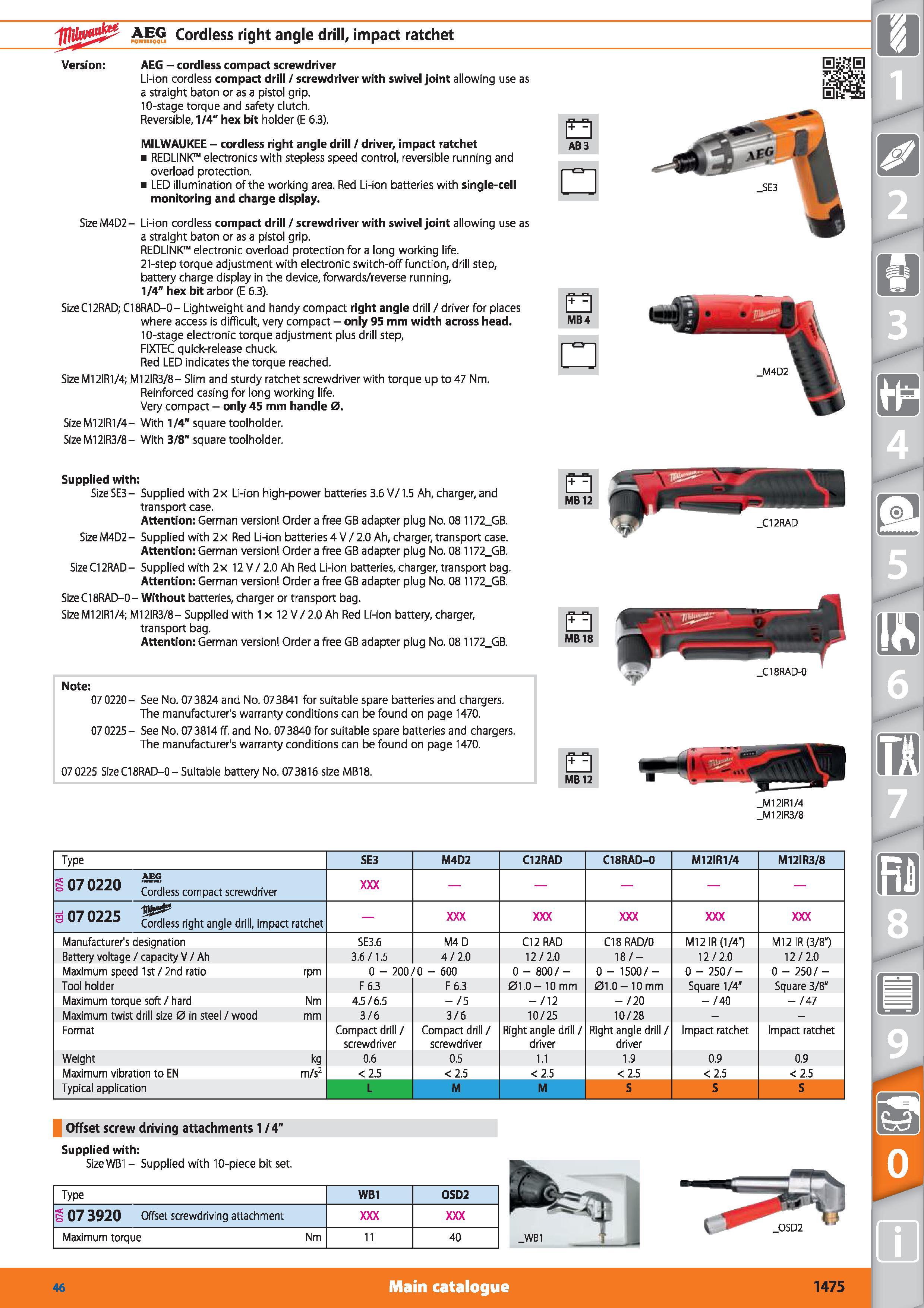

Version AEG - cordless compact screwdriver Li-ion cordless compact drill / screwdriver with swivel joint allowing use as a straight baton or as a pistol grip. 10-stage torque and safety clutch. Reversible, 1/4" hex bit holder (E 6.3). MILWAUKEE - cordless right angle drill / driver, impact ratchet REDLINK electronics with stepless speed control, reversible running and overload protection. LED illumination of the working area. Red Li-ion batteries with single-cell monitoring and charge display. Size M4D2 - Li-ion cordless compact drill / screwdriver with swivel joint allowing use as a straight baton or as a pistol grip. REDLINK electronic overload protection for a long working life. 21-step torque adjustment with electronic switch-off function, drill step, battery charge display in the device, forwards/reverse running, 1/4" hex bit arbor (E 6.3). SizeC12RAD; C18RAD-0- Lightweight and handy compact right angle drill / driver for places where access is difficult, very compact - only 95 mm width across head. 10-stage electronic torque adjustment plus drill step, FIXTEC quick-release chuck Red LED indicates the torque reached. Size M12IR1/4; Ml2IR3/8 Slim and sturdy ratchet screwdriver with torque up to 47 Nm. Reinforced casing for long working life. Very compact - only 45 mm handle 0. Size Ml2IR1 /4 With 1/4" square toolholder. Size Ml 2IR3/8 With 3/8" square toolholder. MB 4 Supplied with SizeSE3- Supplied with 2x Li-ion high-power batteries 3.6 V/1.5 Ah, charger, and transport case. Attention German version Order a free GB adapter plug No. 08 1172_GB. SizeM4D2- Supplied with 2x Red Li-ion batteries4 V/2.0 Ah, charger, transport case. Attention German version Order a free GB adapter plug No. 08 1172_GB. SizeC12RAD- Supplied with 2x 12 V/ 2.0 Ah Red Li-ion batteries, charger, transport bag. Attention German version Order a free GB adapter plug No. 08 1172_GB. SizeC18RAD-0- Without batteries, charger or transport bag. Size Ml 2IR1/4; Ml 2IR3/8-Supplied with lx 12V/2.0Ah Red Li-ion battery, charger, transport bag. Attention German version Order a free GB adapter plug No. 08 1172_GB. Note 07 0220- See No. 073824 and No. 073841 for suitable spare batteries and chargers. The manufacturer's warranty conditions can be found on page 1470. 07 0225- See No. 073814 ff. and No. 073840 for suitable spare batteries and chargers. The manufacturer's warranty conditions can be found on page 1470. 070225 Size Cl 8RAD-0- Suitable battery No. 073816 size MB18. MB 12 E3 MB 12 E3 MB 18 _M12IR1/4 _M12IR3/8 Type SE3 M4D2 C12RAD C18RAD-0 M12IR1/4 M12IR3/8 07 0220 Cordless compact screwdriver S U/ UZZ3 Cordless right angle drill, impact ratchet Manufacturer's designation SE3.6 M4D Cl 2 RAD Cl 8 RAD/0 M12 IR (1/4”) M12 IR (3/8") Battery voltage / capacity V / Ah 3.6/1.5 4/2.0 12/2.0 18/- 12/2.0 12/2.0 Maximum speed 1st/2nd ratio rpm 0 - 200/0 - 600 0 - 800/ - 0 - 1500/ 0 - 250/ - 0 - 250/ - Tool holder F 6.3 F 6.3 01.0- 10 mm 01.0 -10 mm Square 1/4” Square 3/8" Maximum torque soft / hard Nm 4.5/6.5 - /5 /12 -/ 20 - /40 /47 Maximum twist drill size 0 in steel / wood mm 3/6 3/6 10/25 10/28 Format Compact drill / Compact drill / Right angle drill / Right angle drill / Impact ratchet Impact ratchet screwdriver screwdriver driver driver Weight kg 0.6 0.5 1.1 1.9 0.9 0.9 Maximum vibration to EN m/s2 <2.5 <2.5 <2.5 <2.5 < 2.5 <2.5 Typical application L M S S S Offset screw driving attachments 1 / 4" Supplied with Size WB1 - Supplied with 10-piece bit set. Type WB1 OSD2 S 07 3920 Offset screwdriving attachment Maximum torque Nm 11 40 M4D2 Main catalogue Hoffmann Group 46 1475
