1471 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1471

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1471 1471 ENG Lab2u

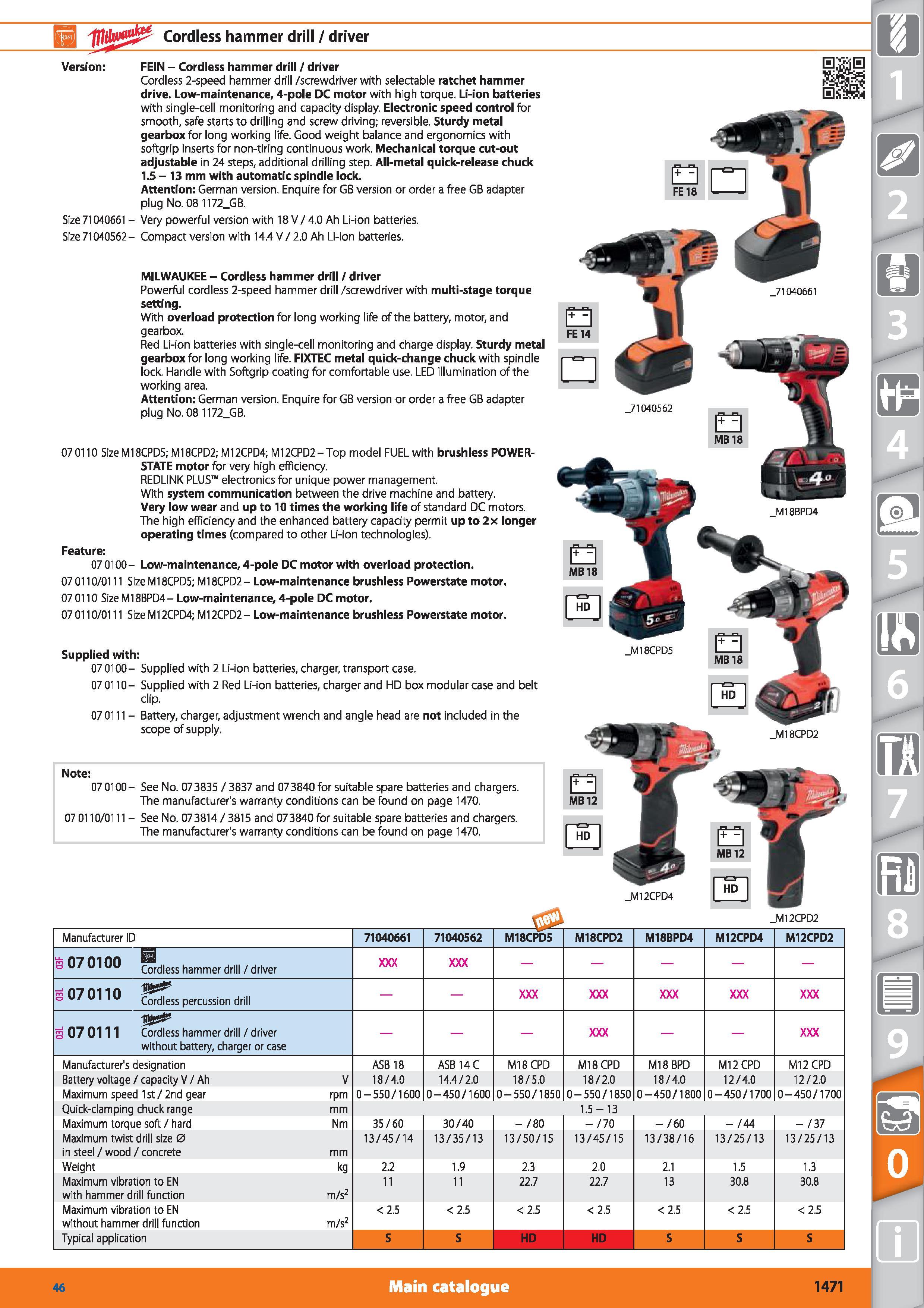

13 1Wjj222 Cordless hammer drill / driver Version FEIN - Cordless hammer drill / driver Cordless 2-speed hammer drill /screwdriver with selectable ratchet hammer drive. Low-maintenance, 4-pole DC motor with high torque. Li-ion batteries with single-cell monitoring and capacity display. Electronic speed control for smooth, safe starts to drilling and screw driving; reversible. Sturdy metal gearbox for long working life. Good weight balance and ergonomics with softgrip inserts for non-tiring continuous work. Mechanical torque cut-out adjustable in 24 steps, additional drilling step. All-metal quick-release chuck 1.5 - 13 mm with automatic spindle lock. Attention German version. Enquire for GB version or order a free GB adapter plug No. 08 1172_GB. Size 71040661 - Very powerful version with 18 V/4.0 Ah Li-ion batteries. Size 71040562- Compact version with 14.4 V/2.0 Ah Li-ion batteries. MILWAUKEE - Cordless hammer drill / driver Powerful cordless 2-speed hammer drill /screwdriver with multi-stage torque setting. With overload protection for long working life of the battery, motor, and gearbox. Red Li-ion batteries with single-cell monitoring and charge display. Sturdy metal gearbox for long working life. FIXTEC metal quick-change chuck with spindle lock Handle with Softgrip coating for comfortable use. LED illumination of the working area. Attention German version. Enquire for GB version or order a free GB adapter plug No. 08 1172_GB. 070110 Size M18CPD5; M18CPD2; M12CPD4; M12CPD2-Top model FUEL with brushless POWER-STATE motor for very high efficiency. REDLINK PLUS electronics for unique power management. With system communication between the drive machine and battery. Very low wear and up to 10 times the working life of standard DC motors. The high efficiency and the enhanced battery capacity permit up to 2x longer operating times (compared to other Li-ion technologies). Feature 07 0100- Low-maintenance, 4-pole DC motor with overload protection. 070110/0111 SizeM18CPD5; Ml 8CPD2- Low-maintenance brushless Powerstate motor. 070110 Size M18BPD4- Low-maintenance, 4-pole DC motor. 07 0110/0111 Size M12CPD4; M12CPD2 - Low-maintenance brushless Powerstate motor. Supplied with 07 0100- Supplied with 2 Li-ion batteries, charger, transport case. 07 0110- Supplied with 2 Red Li-ion batteries, charger and HD box modular case and belt clip. 07 0111 - Battery, charger, adjustment wrench and angle head are not included in the scope of supply. _M12CPD4 _M12CPD2 Manufacturer ID 71040661 71040562 M18CPD5 M18CPD2 M18BPD4 M12CPD4 M12CPD2 S 07 0100 Cordless hammer drill / driver si 070110 Cordless percussion drill 3 07 0111 Cordless hammer drill / driver without battery, charger or case Manufacturer's designation ASB 18 ASB 14 C M18CPD M18CPD M18BPD M12CPD M12CPD Battery voltage / capacity V / Ah V 18/4.0 14.4/2.0 18/5.0 18/2.0 18/4.0 12/4.0 12/2.0 Maximum speed 1st/2nd gear rpm 0-550/1600 0 - 450/1600 0-550/1850 0-550/1850 0-450/1800 0 - 450/1700 0-450/1700 Quick-damping chuck range mm 1.5-13 Maximum torque soft / hard Nm 35/60 30/40 - /80 / 70 - /60 - /44 / 37 Maximum twist drill size 0 in steel / wood / concrete mm 13/45/14 13/35/13 13/50/15 13/45/15 13/38/16 13/25/13 13/25/13 Weight kg 2.2 1.9 2.3 2.0 2.1 1.5 1.3 Maximum vibration to EN with hammer drill function m/s2 11 11 22.7 22.7 13 30.8 30.8 Maximum vibration to EN without hammer drill function m/s2 <2.5 < 2.5 <2.5 < 2.5 <2.5 <2.5 <2.5 Typical application S S HD HD S S S Main catalogue Hoffmann Group 46 1471
