1397 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1397

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1397 1397 ENG Lab2u

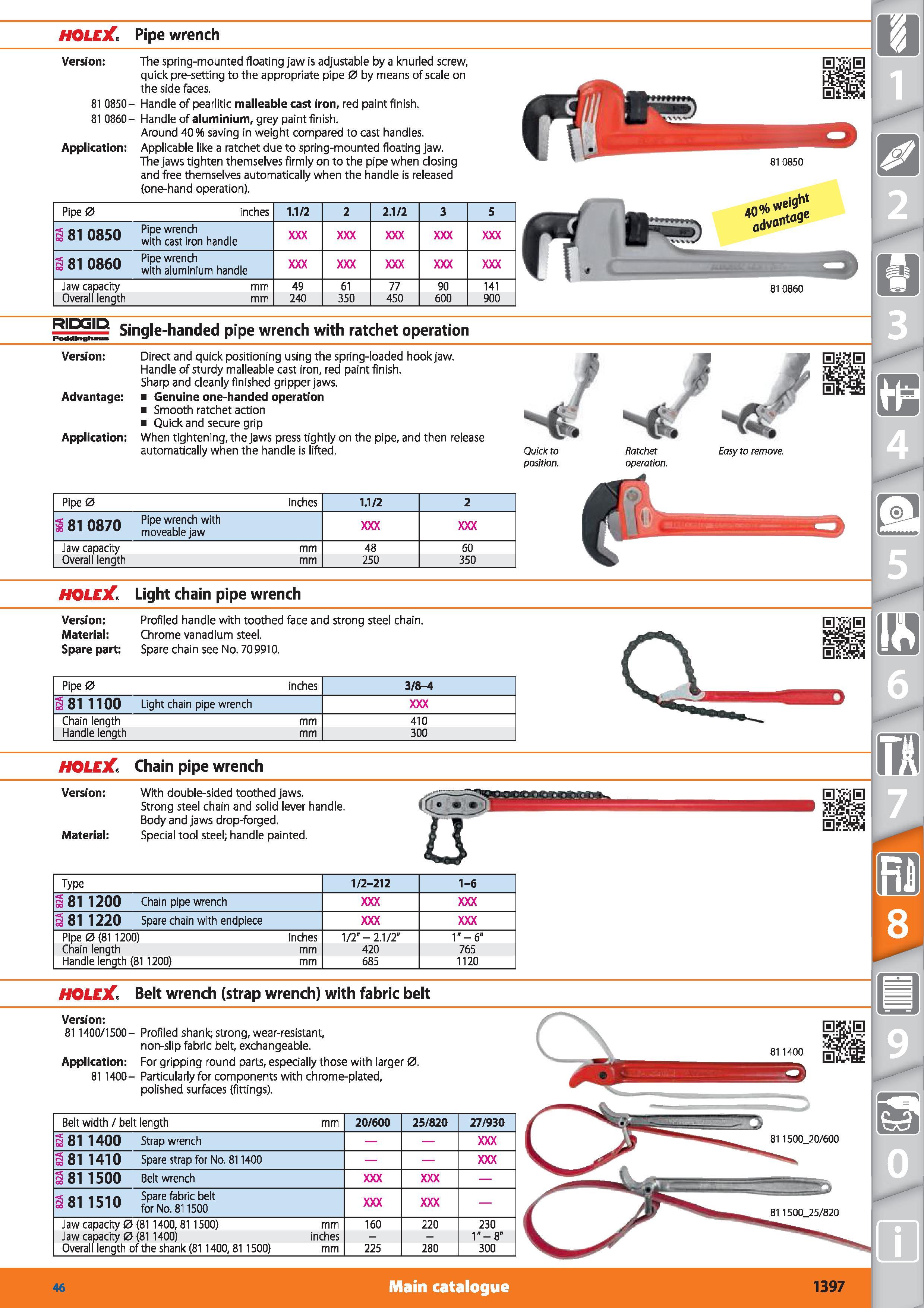

HOLEX Pipe wrench Version 81 0850-81 0860- Application The spring-mounted floating jaw is adjustable by a knurled screw, quick pre-setting to the appropriate pipe 0 by means of scale on the side faces. Handle of pearlitic malleable cast iron, red paint finish. Handle of aluminium, grey paint finish. Around 40% saving in weight compared to cast handles. Applicable like a ratchet due to spring-mounted floating jaw. The jaws tighten themselves firmly on to the pipe when closing and free themselves automatically when the handle is released (one-hand operation). Pipe 0 inches 1.1/2 2 2.1/2 3 5 a 81 0850 Pipe wrench with cast iron handle a 81 0860 Pipe wrench with aluminium handle Jaw capacity mm 49 61 77 90 141 Overall length mm 240 350 450 600 900 0dvor'tay 81 0860 Single-handed pipe wrench with ratchet operation Version Direct and quick positioning using the spring-loaded hook jaw. Handle of sturdy malleable cast iron, red paint finish. Sharp and cleanly finished gripper jaws. Advantage Genuine one-handed operation Smooth ratchet action Quick and secure grip Application When tightening, the jaws press tightly on the pipe, and then release automatically when the handle is lifted. Pipe 0 inches 1.1/2 2 81 0870 Pipe wrench with moveable jaw Jaw capacity mm 48 60 Overall length mm 250 350 HOLEX Light chain pipe wrench Version Profiled handle with toothed face and strong steel chain. Material Chrome vanadium steel. Spare part Spare chain see No. 709910. Pipe 0 inches 3/8-4 B 81 1100 Light chain pipe wrench Chain length mm 410 Handle length mm 300 HOLEX Chain pipe wrench Version With double-sided toothed jaws. Strong steel chain and solid lever handle. Body and jaws drop-forged. Material Special tool steel; handle painted. Type 1/2-212 1-6 S 81 1200 Chain pipe wrench 3 81 1220 Spare chain with endpiece Pipe 0 (811200) inches 1/2”-2.1/2" r-6" Chain length mm 420 765 Handle length (81 1200) mm 685 1120 HOLEX Belt wrench (strap wrench) with fabric belt Version 811400/1500- Profiled shank; strong, wear-resistant, non-slip fabric belt, exchangeable. Application For gripping round parts, especially those with larger 0. 81 1400- Particularly for components with chrome-plated, polished surfaces (fittings). Belt width / belt length mm 20/600 25/820 27/930 81 1400 Strap wrench 81 1410 Spare strap for No. 811400 81 1500 Belt wrench <01 Spare fabric belt a 81 1510 for No. 811500 Jaw capacity 0 (81 1400,81 1500) mm 160 220 230 Jaw capacity 0 (811400) inches r-8” Overall length of the shank (81 1400,81 1500) mm 225 280 300 0 Jj 81 0850 Main catalogue Hoffmann Group 46 1397
