1379 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1379

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1379 1379 ENG Lab2u

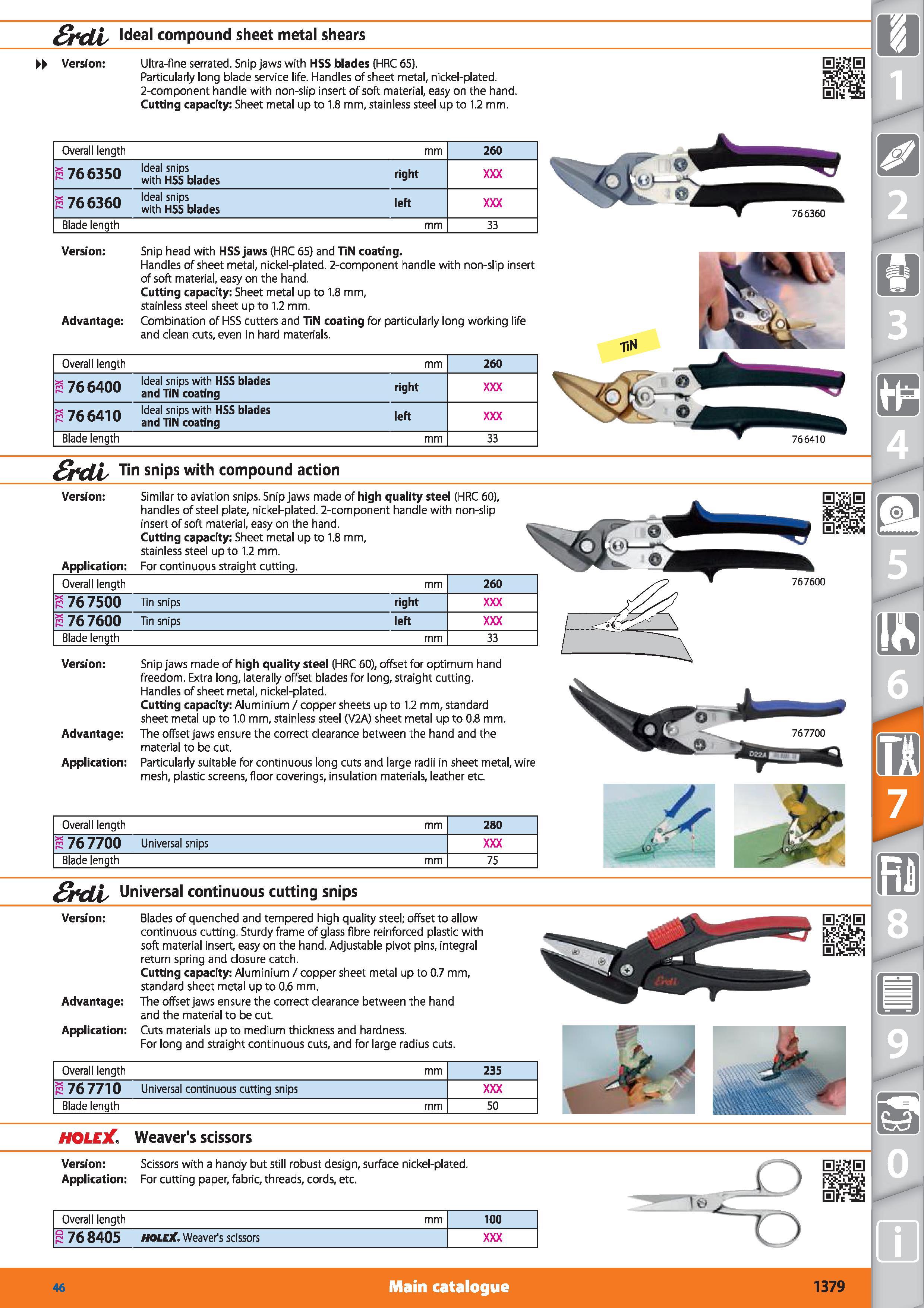

&dl Ideal compound sheet metal shears ii Version Ultra-fine serrated. Snip jaws with HSS blades (HRC 65). Particularly long blade service life. Handles of sheet metal, nickel-plated. 2-component handle with non-slip insert of soft material, easy on the hand. Cutting capacity Sheet metal up to 1.8 mm, stainless steel up to 1.2 mm. Overall length mm 260 S 76 6350 Ideal snips with HSS blades right S 76 6360 Ideal snips with HSS blades left Blade length mm 33 Version Snip head with HSS jaws (HRC 65) and TiN coating. Handles of sheet metal, nickel-plated. 2-component handle with non-slip insert of soft material, easy on the hand. Cutting capacity Sheet metal up to 1.8 mm, stainless steel sheet up to 1.2 mm. Advantage Combination of HSS cutters and TiN coating for particularly long working life and clean cuts, even in hard materials. Overall length mm 260 S 76 6400 Ideal snips with HSS blades and TiN coating right B 76 6410 Ideal snips with HSS blades and TiN coating left Blade length mm 33 &dl Tin snips with compound action Version Similar to aviation snips. Snip jaws made of high quality steel (HRC 60), handles of steel plate, nickel-plated. 2-component handle with non-slip insert of soft material, easy on the hand. Cutting capacity Sheet metal up to 1.8 mm, stainless steel up to 1.2 mm. Application For continuous straight cutting. Overall length mm 260 B 76 7500 Tin snips right k 76 7600 Tin snips left Blade length mm 33 Version Snip jaws made of high quality steel (HRC 60), offset for optimum hand freedom. Extra long, laterally offset blades for long, straight cutting. Handles of sheet metal, nickel-plated. Cutting capacity Aluminium / copper sheets up to 1.2 mm, standard sheet metal up to 1.0 mm, stainless steel (V2A) sheet metal up to 0.8 mm. Advantage The offset jaws ensure the correct clearance between the hand and the material to be cut. Application Particularly suitable for continuous long cuts and large radii in sheet metal, wire mesh, plastic screens, floor coverings, insulation materials, leather etc. Overall length mm 280 r 76 7700 Universal snips Blade length mm 75 Universal continuous cutting snips Version Blades of quenched and tempered high quality steel; offset to allow continuous cutting. Sturdy frame of glass fibre reinforced plastic with soft material insert, easy on the hand. Adjustable pivot pins, integral return spring and closure catch. Cutting capacity Aluminium / copper sheet metal up to 0.7 mm, standard sheet metal up to 0.6 mm. Advantage The offset jaws ensure the correct clearance between the hand and the material to be cut. Application Cuts materials up to medium thickness and hardness. For long and straight continuous cuts, and for large radius cuts. Overall length mm 235 r 76 7710 Universal continuous cutting snips Blade length mm 50 HOLEX Weaver's scissors Version Scissors with a handy but still robust design, surface nickel-plated. Application For cutting paper, fabric, threads, cords, etc. Overall length mm 100 76 8405 HOLEX Weaver's scissors 46 Main catalogue
