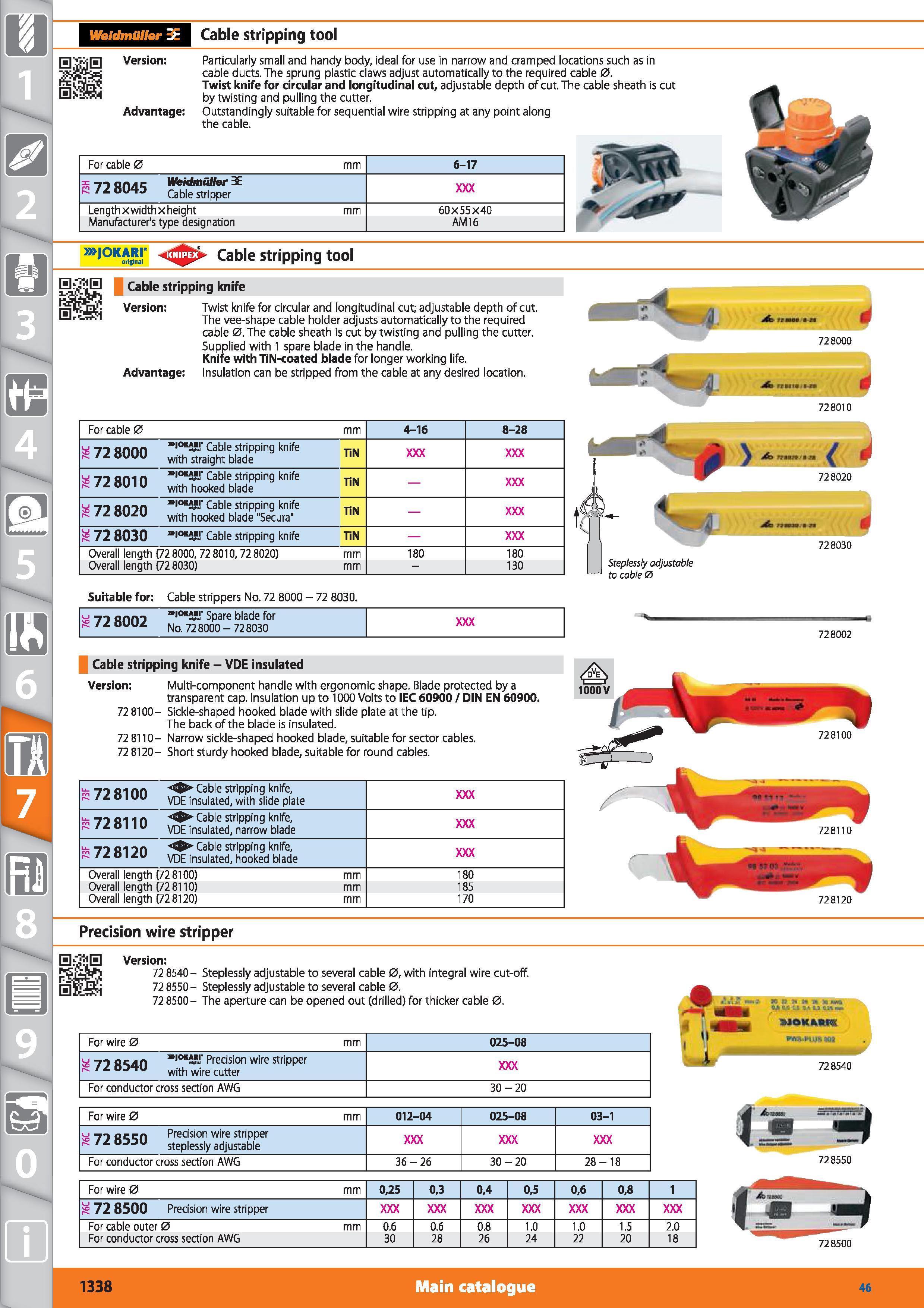

Weidmuller BE Cable stripping tool Version Particularly small and handy body, ideal for use in narrow and cramped locations such as in cable ducts. The sprung plastic claws adjust automatically to the required cable 0. Twist knife for circular and longitudinal cut, adjustable depth of cut. The cable sheath is cut by twisting and pulling the cutter. Advantage Outstandingly suitable for sequential wire stripping at any point along the cable. For cable 0 mm 6-17 i onjic Weidmuller 3E r. 72 8045 Cab e stripper Length x widthx height mm 60X55X40 Manufacturer's type designation AM16 > j°KARr Cable stripping tool Cable stripping knife Version Advantage Twist knife for circular and longitudinal cut; adjustable depth of cut. The vee-shape cable holder adjusts automatically to the required cable 0. The cable sheath is cut by twisting and pulling the cutter. Supplied with 1 spare blade in the handle. Knife with TiN-coated blade for longer working life. Insulation can be stripped from the cable at any desired location. For cable 0 mm 4-16 8-28 72 8000 ” OK5SJ' Cable stripping knife with straight blade TiN 72 8010 ” OK5K' Cable stripping knife with hooked blade TiN 72 8020 ” OK SJ' Cable stripping knife with hooked blade "Secura" TiN 72 8030 0K B Cable stripping knife TiN Overall length (728000,728010,728020) mm 180 180 Overall length (728030) mm - 130 Suitable for Cable strippers No. 72 8000 - 72 8030. I 72 8002 No. 728000 - 728030 728030 Steplessly adjustable to cable 0 728002 Cable stripping knife - VDE insulated Version Multi-component handle with ergonomic shape. Blade protected by a transparent cap. Insulation up to 1000 Volts to IEC 60900 / DIN EN 60900. 72 8100- Sickle-shaped hooked blade with slide plate at the tip. The back of the blade is insulated. 72 8110- Narrow sickle-shaped hooked blade, suitable for sector cables. 72 8120- Short sturdy hooked blade, suitable for round cables. b 72 8100 Cable stripping knife, VDE insulated, with slide plate b 728110 Cable stripping knife, VDE insulated, narrow blade b 72 8120 Cable stripping knife, VDE insulated, hooked blade Overall length (728100) mm 180 Overall length (728110) mm 185 Overall length (728120) mm 170 Precision wire stripper 728120 0 it 0 Version 72 8540 - Steplessly adjustable to several cable 0, with integral wire cut-off. 72 8550 - Steplessly adjustable to several cable 0. 72 8500 - The aperture can be opened out (drilled) for thicker cable 0. For wire 0 mm 025-08 ijj 79 oyn ” OK5SJ' Precision wire stripper with wire cutter For conductor cross section AWG 30-20 MOKUR W1S-MAIS0M 728540 For wire 0 mm 012-04 025-08 03-1 s 72 8550 Precision wire stripper steplessly adjustable For conductor cross section AWG 36-26 30-20 28-18 k 728550 For wire 0 mm 0,25 0,3 0,4 0,5 0,6 0,8 1 g 72 8500 Precision wire stripper For cable outer 0 mm 0.6 0.6 0.8 1.0 1.0 1.5 2.0 For conductor cross section AWG 30 28 26 24 22 20 18 728500 1338 Main catalogue Hoffmann Group 46
