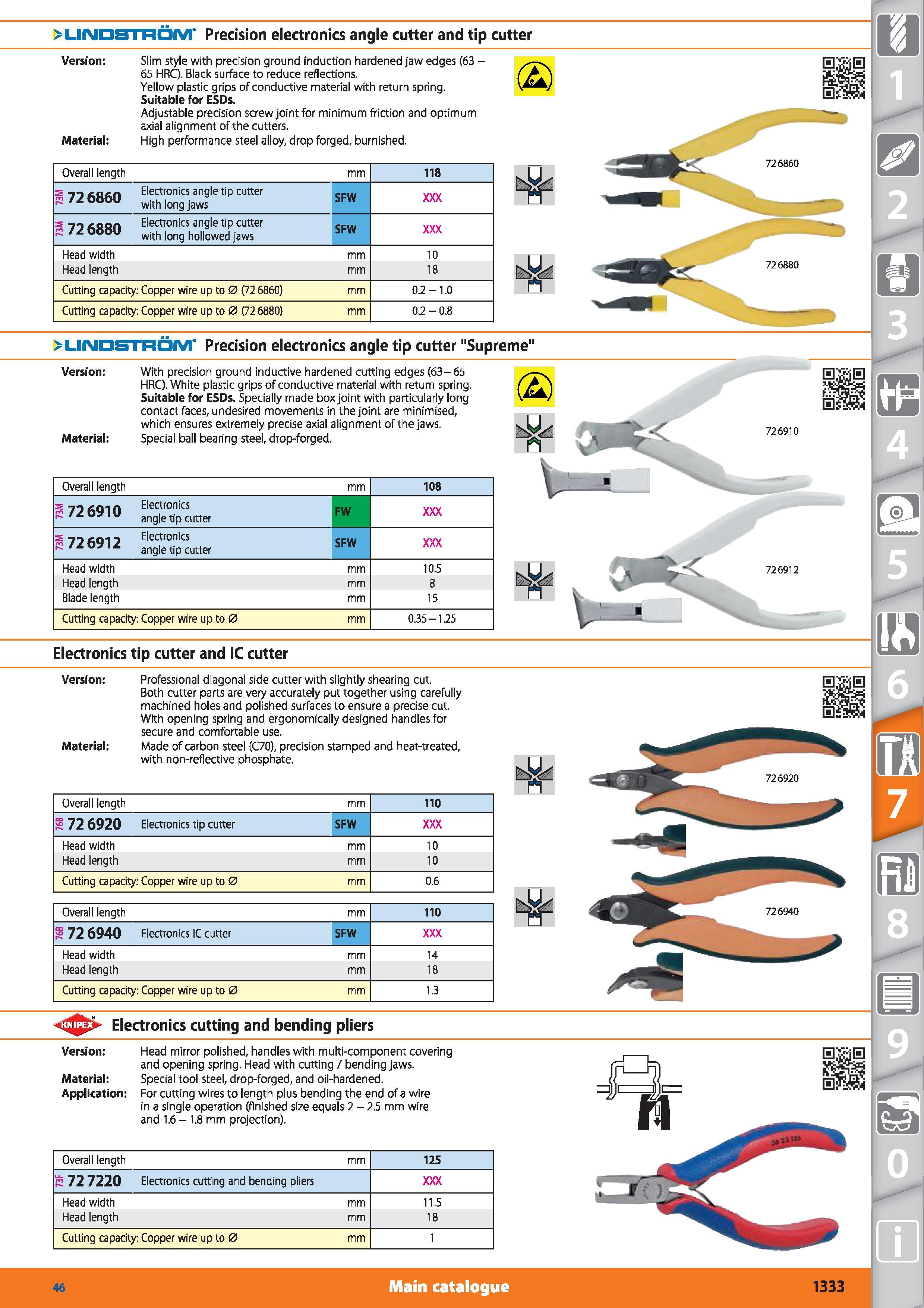

Version 'LIIVID STROM' Precision electronics angle cutter and tip cutter Slim style with precision ground induction hardened jaw edges (63 - 65 HRC). Black surface to reduce reflections. ( Yellow plastic grips of conductive material with return spring. Suitable for ESDs. Adjustable precision screw joint for minimum friction and optimum axial alignment of the cutters. Material High performance steel alloy, drop forged, burnished. Overall length mm 118 s - c.oe.n Electronics angle tip cutter K 72 6860 with 0ng jaws SFW s -j’) fioon Electronics angle tip cutter H /z OoOU wit ong followed jaws SFW Head width mm 10 Head length mm 18 Cutting capacity Copper wire up to 0 (726860) mm 0.2-1.0 Cutting capacity Copper wire up to 0 (726880) mm 0.2 - 0.8 ’’LIIMDSTROM' Precision electronics angle tip cutter "Supreme" Version Material With precision ground inductive hardened cutting edges (63-65 HRC). White plastic grips of conductive material with return spring. Suitable for ESDs. Specially made box joint with particularly long contact faces, undesired movements in the joint are minimised, which ensures extremely precise axial alignment of the jaws. Special ball bearing steel, drop-forged. Overall length mm 108 S 72 6910 Electronics angle tip cutter FW r 72 6912 Electronics angle tip cutter SFW Head width mm 10.5 Head length mm 8 Blade length mm 15 Cutting capacity Copper wire up to 0 mm 0.35-1.25 Electronics tip cutter and IC cutter Version Material Professional diagonal side cutter with slightly shearing cut. Both cutter parts are very accurately put together using carefully machined holes and polished surfaces to ensure a precise cut. With opening spring and ergonomically designed handles for secure and comfortable use. Made of carbon steel (C70), precision stamped and heat-treated, with non-reflective phosphate. Overall length mm 110 72 6920 Electronics tip cutter IsFW Head width mm 10 Head length mm 10 Cutting capacity Copper wire up to 0 mm 0.6 Overall length mm 110 1 72 6940 Electronics IC cutter IsFW Head width mm 14 Head length mm 18 Cutting capacity Copper wire up to 0 mm 1.3 Electronics cutting and bending pliers Version Head mirror polished, handles with multi-component covering and opening spring. Head with cutting / bending jaws. Material Special tool steel, drop-forged, and oil-hardened. Application For cutting wires to length plus bending the end of a wire in a single operation (finished size equals 2 - 2.5 mm wire and 1.6 - 1.8 mm projection). Overall length mm 125 H 72 7220 Electronics cutting and bending pliers Head width mm 11.5 Head length mm 18 Cutting capacity Copper wire up to 0 mm 1 726920 726940 Main catalogue Hoffmann Group 46 1333
