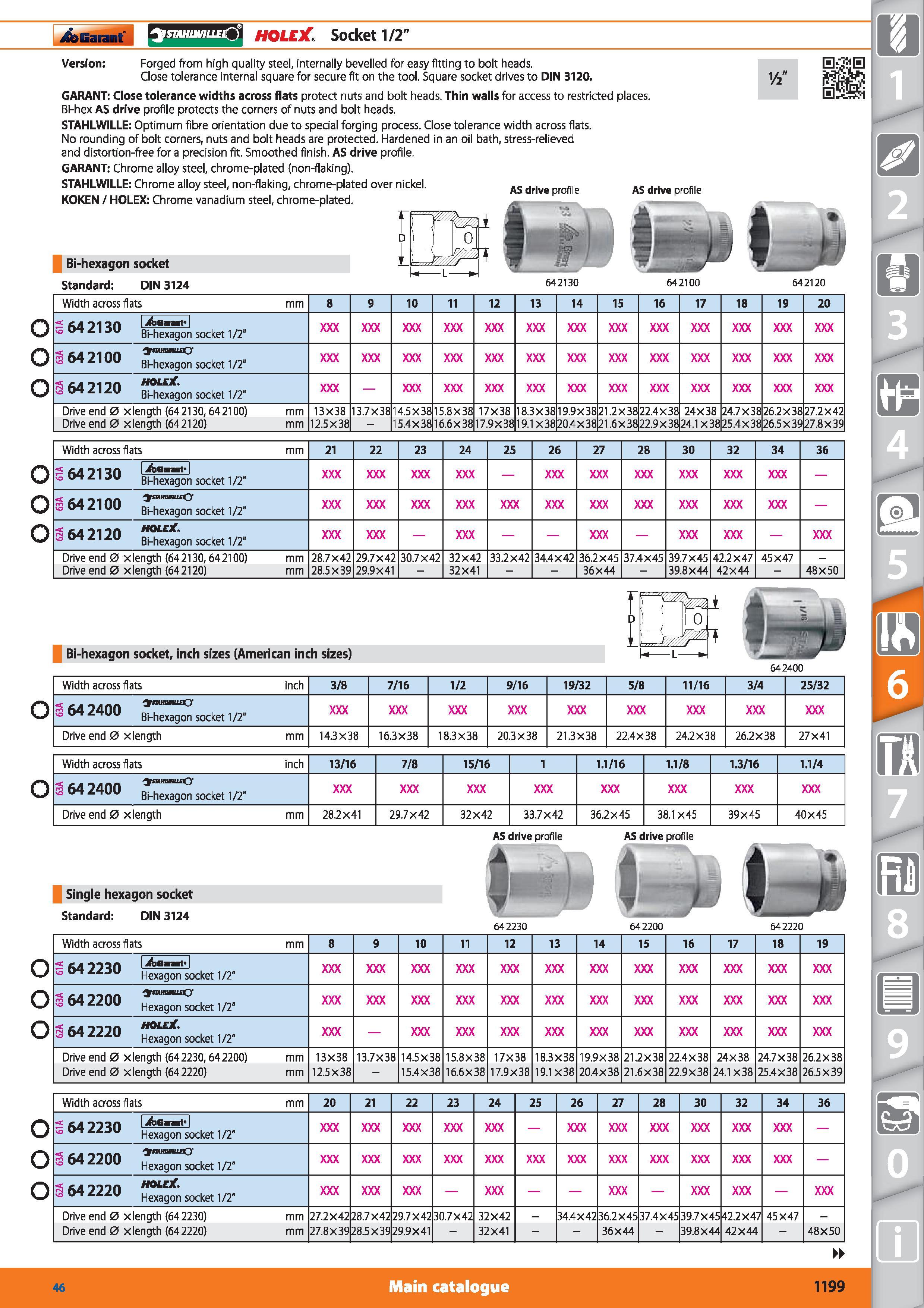

1199 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1199

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1199 1199 ENG Lab2u

jfeGarant" SnHlM/ILLE( ) HOLEX Socket 1/2" Version Forged from high quality steel, internally bevelled for easy fitting to bolt heads. Close tolerance internal square for secure fit on the tool. Square socket drives to DIN 3120. GARANT Close tolerance widths across flats protect nuts and bolt heads. Thin walls for access to restricted places. Bi-hex AS drive profile protects the corners of nuts and bolt heads. STAHLWILLE Optimum fibre orientation due to special forging process. Close tolerance width across flats. No rounding of bolt corners, nuts and bolt heads are protected. Fiardened in an oil bath, stress-relieved and distortion-free for a precision fit. Smoothed finish. AS drive profile. GARANT Chrome alloy steel, chrome-plated (non-flaking). STAHLWILLE Chrome alloy steel, non-flaking, chrome-plated over nickel. KOKEN / HOLEX Chrome vanadium steel, chrome-plated. Bi-hexagon socket Standard DIN 3124 u AS drive profile AS drive profile 642130 642100 642120 Width across flats mm 8 9 10 11 12 13 14 15 16 17 18 19 20 3 642130 1 J&Gmnt”l Bi-hexagon socket 1/2" 3 642100 SWfUHUfO' Bi-hexagon socket 1/2" 642120 HOLEX Bi-hexagon socket 1/2” Drive end 0 xlength (642130,642100) mm 13X38 13.7X38 14.5X38 15.8X38 17X38 18.3X38 19.9X38 21.2X38 22.4X38 24X38 24.7X38 26.2X38 27.2X42 Drive end 0 xlength (642120) mm 12.5X38 - 15.4x38 16.6X38 17.9X38 19.1X38 20.4x38 21.6X38 22.9X38 24.1x38 25.4x38 26.5X39 27.8X39 Width across flats mm 21 22 23 24 25 26 27 28 30 32 34 36 3 642130 1 jfecmnt 1 Bi-hexagon socket 1/2" s 642100 Bi-hexagon socket 1/2” s 642120 HOLEX Bi-hexagon socket 1/2" Drive end 0 xlength (642130,642100) mm 28.7x42 29.7x42 30.7x42 32x42 33.2x42 34.4x42 36.2x45 37.4x45 39.7x45 42.2x47 45x47 - Drive end 0 xlength (642120) mm 28.5X39 29.9X41 - 32X41 36X44 - 39.8X44 42X44 - 48X50 Bi-hexagon socket, inch sizes (American inch sizes) n D Li J r 642400 Width across flats inch 3/8 7/16 1/2 9/16 19/32 5/8 11/16 3/4 25/32 3 64 2400 1 , iwu Bi-hexagon socket 1/2” Drive end 0 xlength mm 14.3x38 16.3x38 18.3x38 20.3x38 21.3x38 22.4x38 24.2x38 26.2x38 27x41 Width across flats inch 13/16 7/8 15/16 1 1.1/16 1.1/8 1.3/16 1.1/4 -642400 :°' Bi-hexagon socket 1/2” Drive end 0 xlength mm 28.2X41 29.7X42 32X42 33.7X42 36.2X45 38.1 X45 39X45 40X45 AS drive profile AS drive profile Single hexagon socket Standard DIN 3124 642230 642220 Width across flats mm 8 9 10 11 12 13 14 15 16 17 18 19 3 642230 1 j&Gmnt 1 Flexagon socket 1/2” 3 642200 Hexagon socket 1/2" 3 642220 HOLEX Hexagon socket 1/2” Drive end 0 xlength (642230,642200) mm 13X38 13.7X38 14.5X38 15.8X38 17X38 18.3X38 19.9X38 21.2X38 22.4X38 24X38 24.7X38 26.2X38 Drive end 0 xlength (642220) mm 12.5x38 - 15.4x38 16.6x38 17.9x38 19.1x38 20.4x38 21.6x38 22.9x38 24.1 x38 25.4x38 26.5x39 Width across flats mm 20 21 22 23 24 25 26 27 28 30 32 34 36 3 642230 1 J&Gmnt”l Hexagon socket 1/2" 3 642200 Hexagon socket 1/2” 3 642220 HOLEX Hexagon socket 1/2" Drive end 0 xlength (642230) mm 27.2X42 28.7X42 29.7X42 30.7X42 32X42 - 34.4X42 36.2X45 37.4X45 39.7X45 42.2X47 45X47 - Drive end 0 xlength (642220) mm 27.8X39 28.5X39 29.9X41 - 32x41 36X44 - 39.8X44 42x44 - 48X50 m Main catalogue Hoffmann Group 46 1199
