1181 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1181

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1181 1181 ENG Lab2u

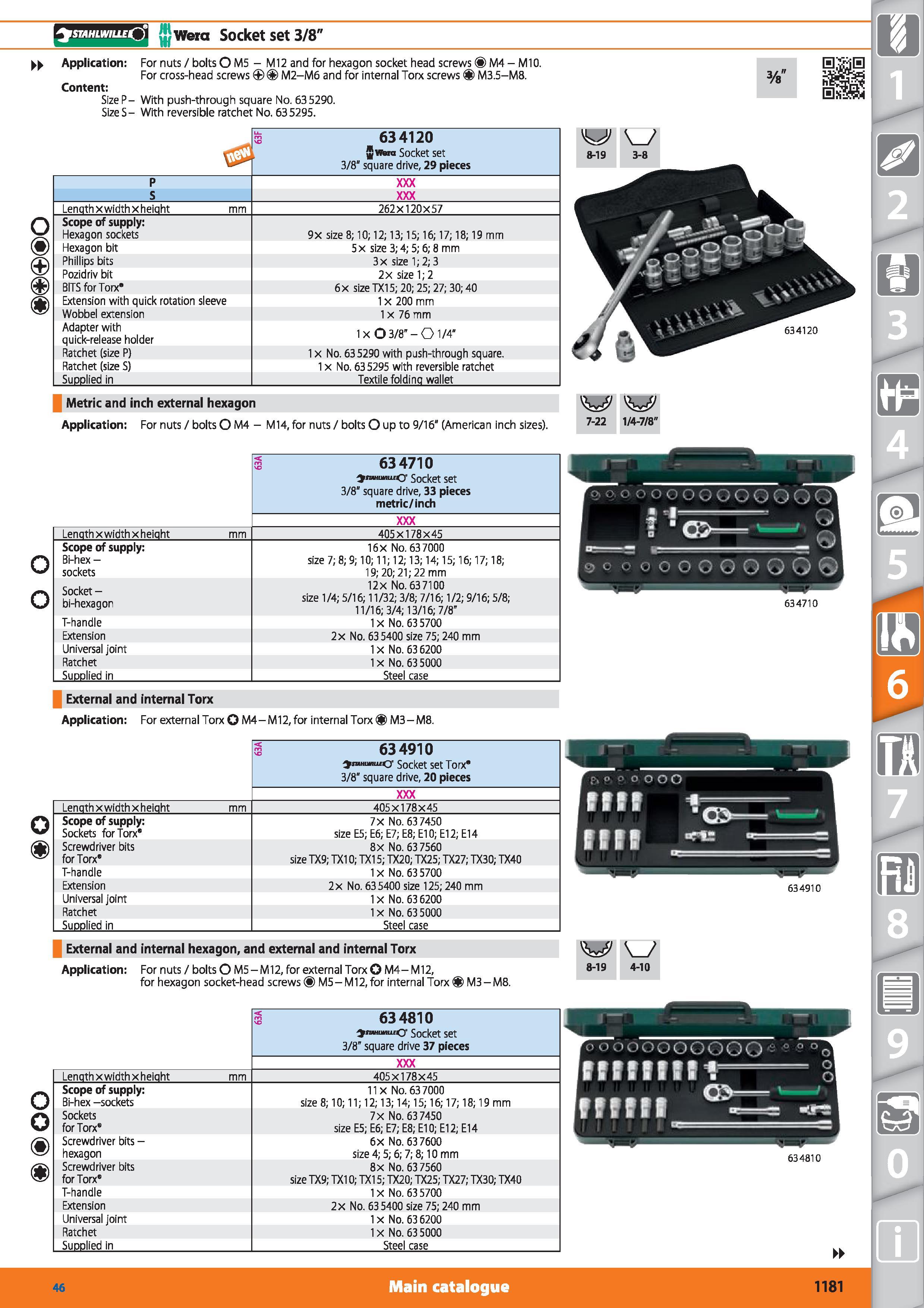

Wera Socket set 3/8" yy Application For nuts / bolts O M5 - M12 and for hexagon socket head screws M4 - M10. For cross-head screws M2-M6 and for internal Torx screws M3.5-M8. Content SizeP- With push-through square No. 635290. SizeS- With reversible ratchet No. 635295. o m s 634120 jjjftam Socket set 3/8" square drive, 29 pieces p s Length x width xheiaht mm 262X120X57 Scope of supply Hexagon sockets 9x size 8; 10; 12; 13; 15; 16; 17; 18; 19 mm Hexagon bit 5x size 3; 4; 5; 6; 8 mm Phillips bits 3x size 1; 2; 3 Pozidriv bit 2x size 1; 2 BITS for Torx” 6x size TX15; 20; 25; 27; 30; 40 Extension with quick rotation sleeve 1 x 200 mm Wobbel extension 1 x 76 mm Adapter with quick-release holder lx 03/8”-O 1/4” Ratchet (size P) 1 x No. 635290 with push-through square. Ratchet (size S) 1 x No. 635295 with reversible ratchet Supplied in Textile folding wallet w 8-19 3-8 634120 Metric and inch external hexagon Application For nuts / bolts O M4 - M14, for nuts / bolts O up to 9/16" (American inch sizes). W 7-22 1/4-7/8" 3 634710 JnmumifO Socket Set 3/8" square drive, 33 pieces metric/inch Lengthxwidthxheight mm 405x178x45 Scope of supply Bi-hex -sockets 16x No. 637000 size 7; 8; 9; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22 mm Socket -bi-hexagon 12x No.637100 size 1/4; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16; 5/8; 11/16; 3/4; 13/16; 7/8” T-handle IX No. 63 5700 Extension 2x No. 635400 size 75; 240 mm Universal joint lx No.63 6200 Ratchet lx No. 635000 Supplied in Steel case 63 4710 External and internal Torx Application For external Torx O M4-M12, for internal Torx M3-M8. o m Length x width x height Scope of supply Sockets forTorx” Screwdriver bits for Torx” T-handle Extension Universal joint Ratchet Supplied in 634910 Socket set Torx” 3/8” square drive, 20 pieces 405x178x45 7X No. 63 7450 size E5; E6; E7; E8; El 0; E12; E14 8x No. 63 7560 size TX9; TX10; TX15; TX20; TX25; TX27; TX30; TX40 IX No. 63 5700 2x No. 635400 size 125; 240 mm IX No. 63 6200 lx No. 635000 Steel case p, O mv t nil 634910 External and internal hexagon, and external and internal Torx Application For nuts / bolts O M5 -M12, for external Torx O M4- M12, for hexagon socket-head screws ( > M5-M12, for internal Tc w 8-19 4-10 3 634810 JnmumifO Socket Set 3/8” square drive 37 pieces Lengthxwidthxheight mm 405x178x45 Scope of supply 11 X No. 63 7000 Bi-hex -sockets size 8; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19 mm Sockets 7x No. 63 7450 for Torx” size E5; E6; E7; E8; El 0; E12; E14 Screwdriver bits - 6x No. 63 7600 hexagon size 4; 5; 6; 7; 8; 10 mm Screwdriver bits 8x No. 63 7560 for Torx” size TX9; TX10; TX15; TX20; TX25; TX27; TX30; TX40 T-handle 1X No. 63 5700 Extension 2x No. 635400 size 75; 240 mm Universal joint lx No.636200 Ratchet lx No.635000 Supplied in Steel case 634810 m 1 Main catalogue Hoffmann Group 46 1181
