1174 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1174

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1174 1174 ENG Lab2u

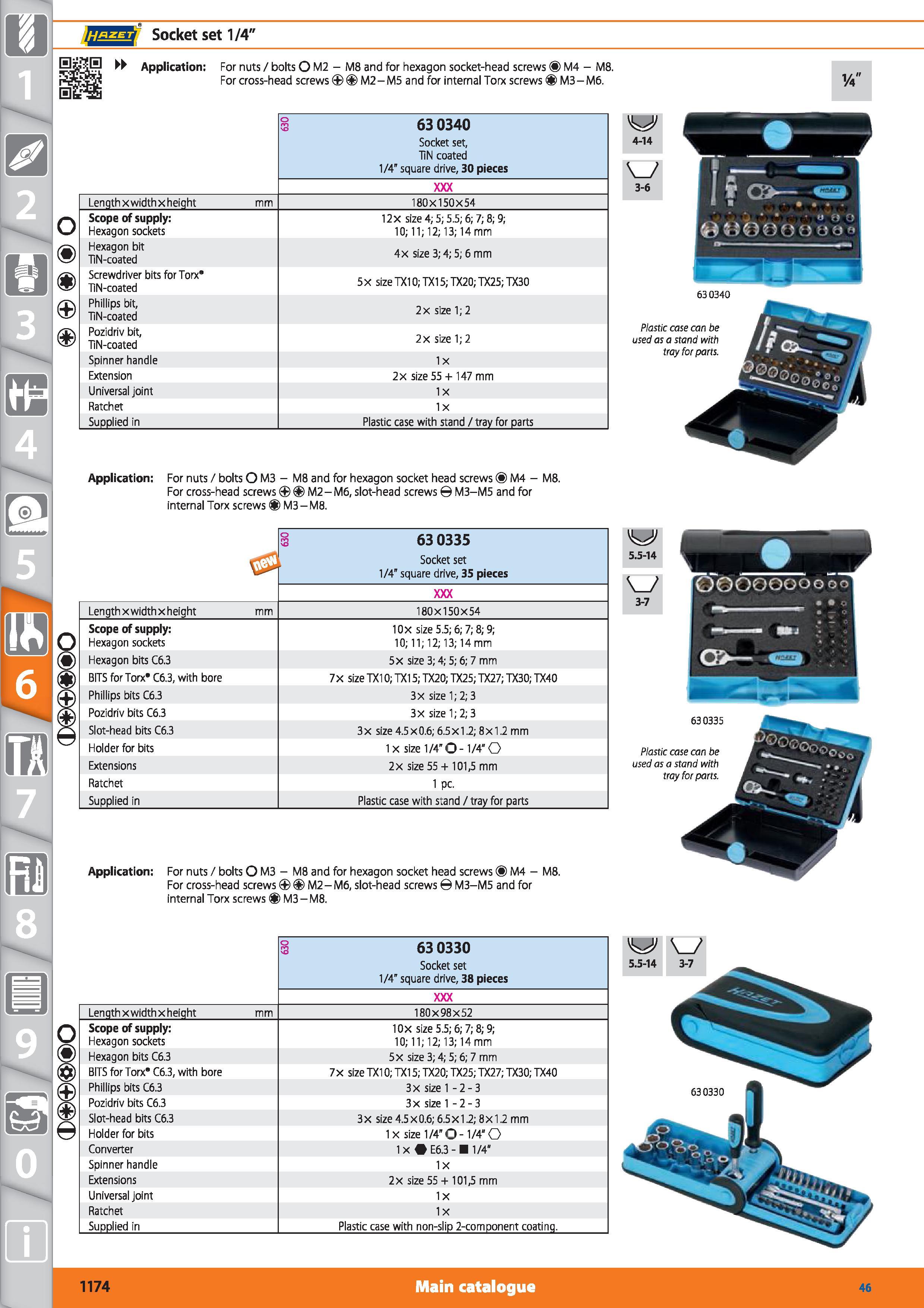

Socket set 1/4" Application For nuts / bolts O M2 - M8 and for hexagon socket-head screws M4 - M8. For cross-head screws M2-M5 and for internal Torx screws M3-M6. Length xwidthx height Scope of supply Hexagon sockets Hexagon bit TiN-coated Screwdriver bits for Torx TiN-coated Phillips bit, TiN-coated Pozidriv bit, TiN-coated Spinner handle Extension Universal joint Ratchet Supplied in 63 0340 Socket set, UN coated 1/4” square drive, 30 pieces 180X150X54 12x size 4; 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm 4x size 3; 4; 5; 6 mm 5x size TX10; TX15; TX20; TX25; TX30 2x size 1; 2 2x size 1;2 lx 2x size 55 + 147 mm lx lx Plastic case with stand / tray for parts Application For nuts / bolts O M3 - M8 and for hexagon socket head screws M4 - M8. For cross-head screws M2-M6, slot-head screws M3-M5 and for internal Torx screws M3-M8. 63 0335 Socket set 1/4” square drive, 35 pieces 5.5-14 w 3-7 Length xwidthx height 180x150x54 Scope of supply Hexagon sockets Hexagon bits C6.3 BITS for Tone C6.3, with bore Phillips bits C6.3 Pozidriv bits C6.3 Slot-head bits C6.3 Holder for bits Extensions Ratchet Supplied in 10X size 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm 5x size 3; 4; 5; 6; 7 mm 7x size TX10; TX15; TX20; TX25; TX27; TX30; TX40 3x size 1; 2; 3 3x size 1; 2; 3 3x size 4.5x0.6; 6.5x12; 8x1.2 mm 1x size 1/4”0-1/4" O 2x size 55 + 101,5 mm 1 pc. Plastic case with stand / tray for parts Application For nuts / bolts O M3 - M8 and for hexagon socket head screws M4 - M8. For cross-head screws M2-M6, slot-head screws M3-M5 and for internal Torx screws M3-M8. o ( > < ) e m Length xwidthx height Scope of supply Hexagon sockets Hexagon bits C6.3 BITS for Torx C6.3, with bore Phillips bits C6.3 Pozidriv bits C6.3 Slot-head bits C6.3 Holder for bits Converter Spinner handle Extensions Universal joint Ratchet Supplied in 63 0330 Socket set 1/4” square drive, 38 pieces 180 x 98 x 52 10x size 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm 5x size 3; 4; 5; 6; 7 mm 7x size TX10; TX15; TX20; TX25; TX27; TX30; TX40 3x size 1 - 2-3 3x size 1-2-3 3x size 4.5x0.6; 6.5x12; 8x1.2 mm 1x size 1/4” O-1/4" O 1 x E6.3 - 1/4" lx 2x size 55 + 101,5 mm lx lx Plastic case with non-slip 2-component coating. 630340 Plastic case can be used as a stand with tray for parts. 630335 Plastic case can be used as a stand with tray for parts. 1174 Main catalogue Hoffmann Group 46
