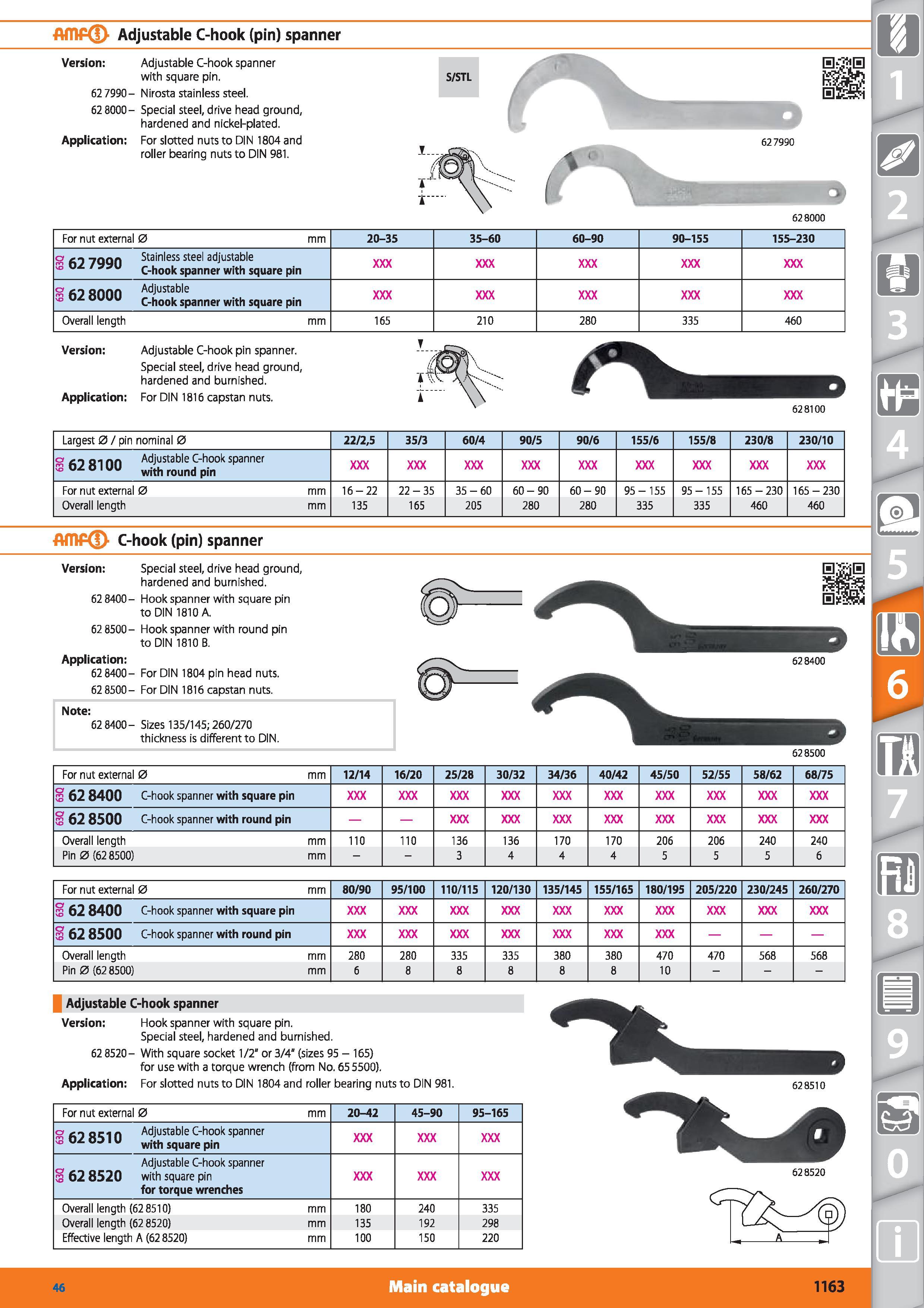

AmP Adjustable C-hook (pin) spanner Version Adjustable C-hook spanner with square pin. 62 7990- Nirosta stainless steel. 628000- Special steel, drive head ground, hardened and nickel-plated. Application For slotted nuts to DIN 1804 and roller bearing nuts to DIN 981. For nut external 0 mm 20-35 35-60 60-90 90-155 155-230 62 7990 Stainless steel adjustable C-hook spanner with square pin 62 8000 Adjustable C-hook spanner with square pin Overall length mm 165 210 280 335 460 Version Adjustable C-hook pin spanner. Special steel, drive head ground, hardened and burnished. Application For DIN 1816 capstan nuts. 628100 Largest 0 / pin nominal 0 22/2,5 35/3 60/4 90/5 90/6 155/6 155/8 230/8 230/10 62 8100 Adjustable C-hook spanner with round pin For nut external 0 mm 16-22 22-35 35-60 60-90 60-90 95-155 95-155 165 -230 165-230 Overall length mm 135 165 205 280 280 335 335 460 460 AmP C-hook (pin) spanner Version Special steel, drive head ground, hardened and burnished. 62 8400- Hook spanner with square pin to DIN 1810 A. 62 8500- Hook spanner with round pin to DIN 1810 B. Application 62 8400- For DIN 1804 pin head nuts. 62 8500- For DIN 1816 capstan nuts. Note 62 8400- Sizes 135/145; 260/270 thickness is different to DIN. 628500 For nut external 0 mm 12/14 16/20 25/28 30/32 34/36 40/42 45/50 52/55 58/62 68/75 62 8400 C-hook spanner with square pin 62 8500 C-hook spanner with round pin Overall length mm 110 110 136 136 170 170 206 206 240 240 Pin 0 (628500) mm 3 4 4 4 5 5 5 6 For nut external 0 mm 80/90 95/100 110/115 120/130 135/145 155/165 180/195 205/220 230/245 260/270 62 8400 C-hook spanner with square pin 628500 C-hook spanner with round pin Overall length mm 280 280 335 335 380 380 470 470 568 568 Pin 0 (628500) mm 6 8 8 8 8 8 10 - Adjustable C-hook spanner Version Hook spanner with square pin. Special steel, hardened and burnished. 62 8520- With square socket 1/2" or 3/4" (sizes 95 - 165) for use with a torque wrench (from No. 655500). Application For slatted nuts to DIN 1804 and roller bearing nuts to DIN 981. For nut external 0 mm 20-42 45-90 95-165 o or i n Adjustable C-hook spanner S3 DZODIU with square pin Adjustable C-hook spanner 62 8520 with square pin for torque wrenches Overall length (628510) mm 180 240 335 Overall length (628520) mm 135 192 298 Effective length A (62 8520) mm 100 150 220 m S/STL Main catalogue Hoffmann Group 46 1163
