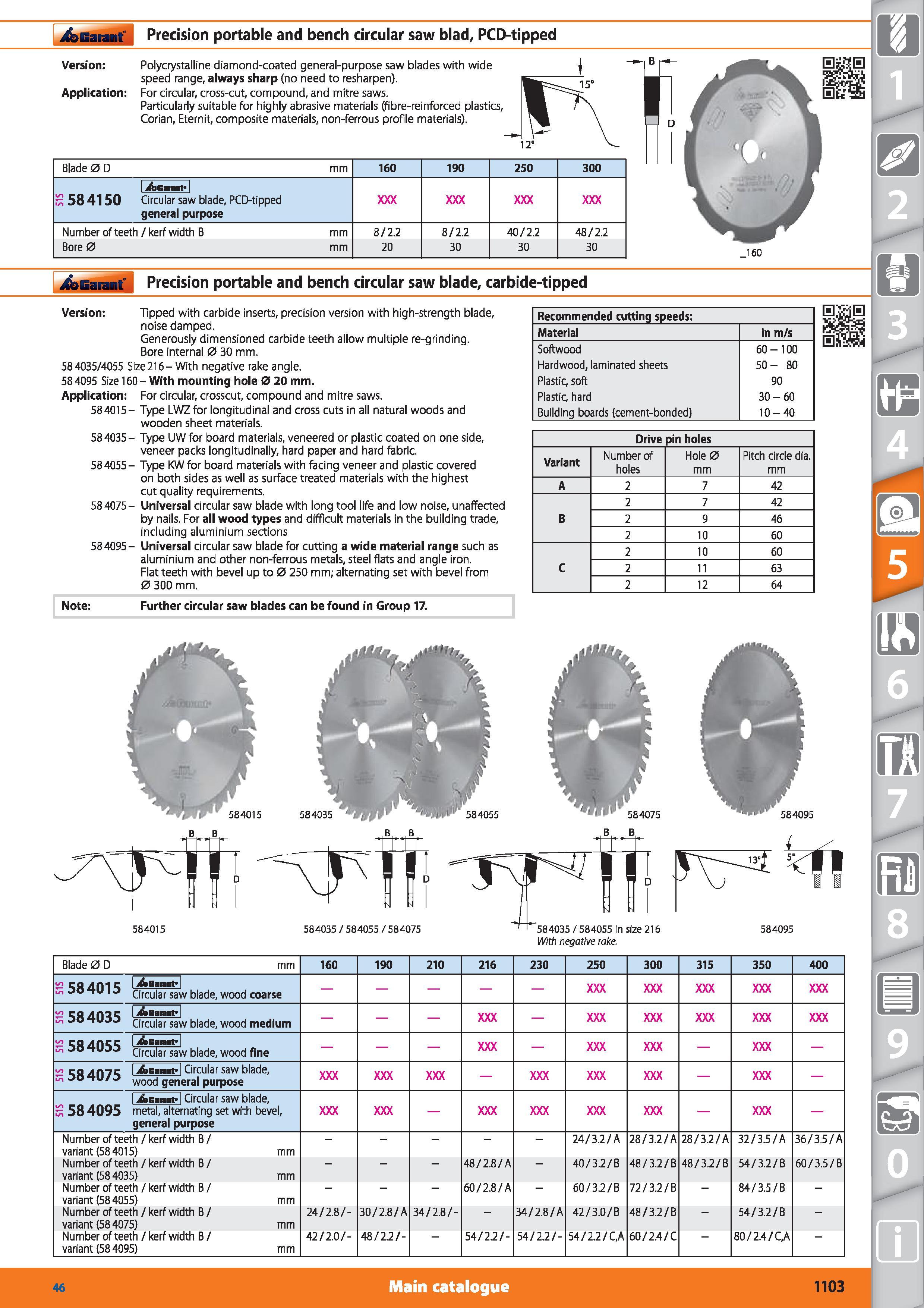

Garant Precision portable and bench circular saw blad, PCD-tipped Version Application Polycrystalline diamond-coated general-purpose saw blades with wide speed range, always sharp (no need to resharpen). For circular, cross-cut, compound, and mitre saws. Particularly suitable for highly abrasive materials (fibre-reinforced plastics, Corian, Eternit, composite materials, non-ferrous profile materials). r- Blade 0 D mm 160 190 250 300 S 584150 I j&Gmnt I Circular saw blade, PCD-tipped general purpose Number of teeth / kerf width B mm 8/2.2 8/2.2 40/2.2 48/2.2 Bore 0 mm 20 30 30 30 Garant Precision portable and bench circular saw blade, carbide-tipped Version Tipped with carbide inserts, precision version with high-strength blade, noise damped. Generously dimensioned carbide teeth allow multiple re-grinding. Bore internal 0 30 mm. 58 4035/4055 Size 216-With negative rake angle. 584095 Size 160- With mounting hole 0 20 mm. Application For circular, crosscut, compound and mitre saws. 584015- Type LWZfor longitudinal and cross cuts in all natural woods and wooden sheet materials. 584035- Type UW for board materials, veneered or plastic coated on one side, veneer packs longitudinally, hard paper and hard fabric. 584055- Type KW for board materials with facing veneer and plastic covered on both sides as well as surface treated materials with the highest cut quality requirements. 584075- Universal circular saw blade with long tool life and low noise, unaffected by nails. For all wood types and difficult materials in the building trade, including aluminium sections 584095- Universal circular saw blade for cutting a wide material range such as aluminium and other non-ferrous metals, steel flats and angle iron. Flat teeth with bevel up to 0 250 mm; alternating set with bevel from 0 300 mm. Recommended cutting speeds Material in m/s Softwood Hardwood, laminated sheets Plastic, soft Plastic, hard Building boards (cement-bonded) 60-100 50- 80 90 30-60 10-40 Drive pin holes Variant Number of holes Hole 0 mm Pitch circle dia. mm A 2 7 42 B 2 7 42 2 9 46 2 10 60 C 2 10 60 2 11 63 2 12 64 Note Further circular saw blades can be found in Group 17. 584015 584035 / 584055 / 584075 584035 / 584055 in size 216 With negative rake. 584095 Blade 0 D mm 160 190 210 216 230 250 300 315 350 400 1/1 m jo j Circular saw blade, wood coarse lAsmnfl u-, tCircular saw blade, wood medium “TOiincr Ij&EiiiiipI u-, Do Circular saw blade, wood fine rq jATr j&emwipI Circular saw blade, u-, 30 “iU/J wood general purpose I Garant Circular saw blade, S 58 4095 metal, alternating set with bevel, general purpose Number of teeth / kerf width B / variant (584015) mm - 24/3.2/A 28/3.2/A 28/3.2/A 32/3.5/A 36/3.5/A Number of teeth / kerf width B / variant (58 4035) mm 48/2.8/A 40/3.2/B 48/3.2/B 48/3.2/B 54/3.2/B 60/3.5/B Number of teeth / kerf width B / variant (58 4055) mm 60/2.8/A 60/3.2 / B 72/3.2/B 84/3.5/B Number of teeth / kerf width B / variant (58 4075) mm 24/2.8/- 30/2.8/A 34/2.8/- 34/2.8/A 42/3.0/B 48/3.2/B 54/3.2/B Number of teeth / kerf width B / variant (58 4095) mm 42/2.0/- 48/2.2/- 54/2.2/- 54/2.2/- 54 / 2.2/C, A 60/2.4/C 80 / 2.4/C, A m Main catalogue Hoffmann Group 46 1103
