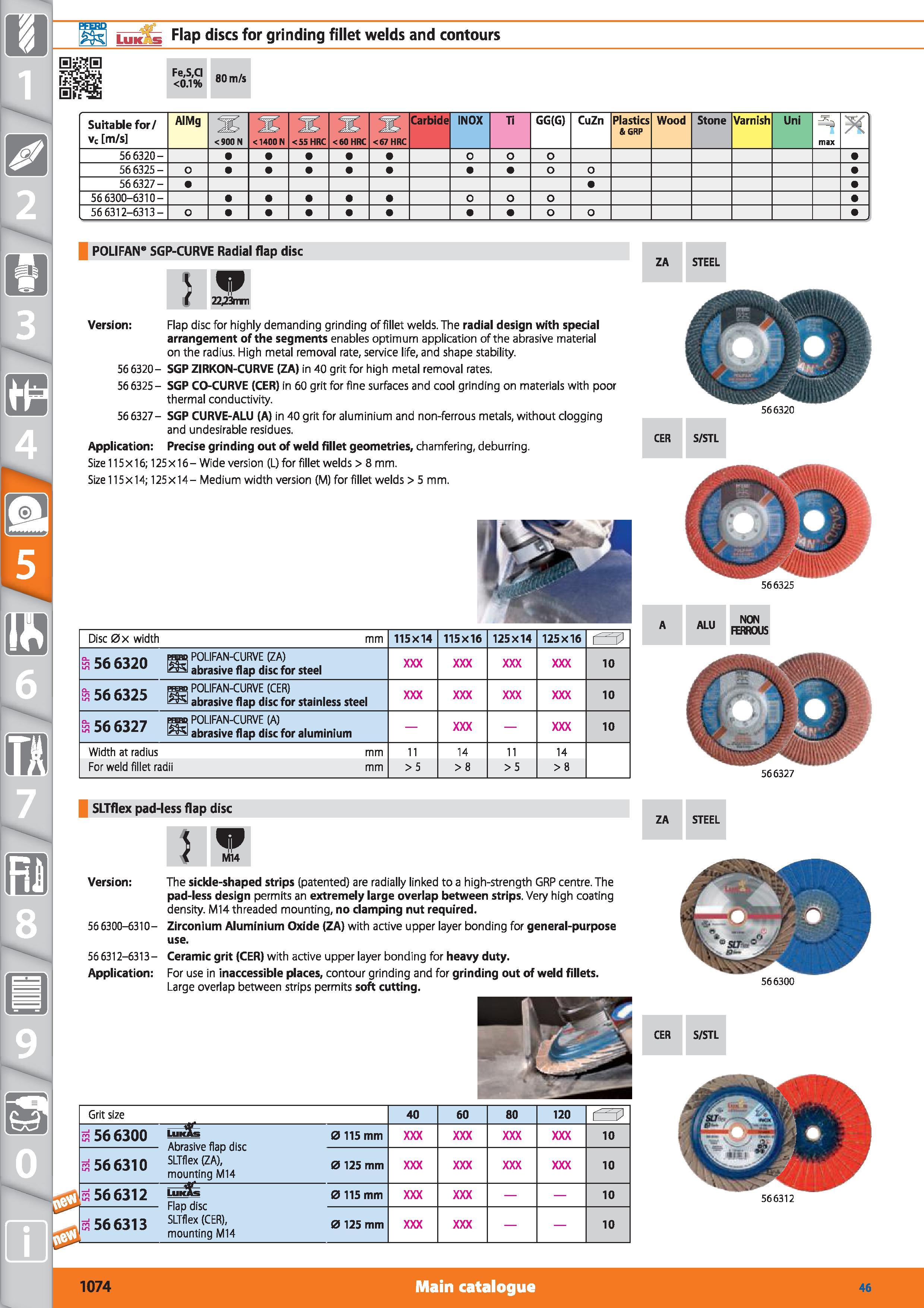

1 Luk s Flap discs for grinding fillet welds and contours Fe,S,CI <0.1% 80 m/s Suitable for/ vc m/s AIMg <900 N <1400 N <55 HRC <60 HRC <67 HRC Carbide INOX Ti GG(G) CuZn Plastics & GRP Wood Stone Varnish Uni max H 566320- 0 566325- O 566327- 56 6300-6310- 0 56 6312-6313- POLIFAN SGP-CURVE Radial flap disc \ ( 22,23mm Version Flap disc for highly demanding grinding of fillet welds. The radial design with special arrangement of the segments enables optimum application of the abrasive material on the radius. High metal removal rate, service life, and shape stability. 56 6320- SGP ZIRKON-CURVE (ZA) in 40 grit for high metal removal rates. 56 6325 - SGP CO-CURVE (CER) in 60 grit for fine surfaces and cool grinding on materials with poor thermal conductivity. 56 6327 - SGP CURVE-ALU (A) in 40 grit for aluminium and non-ferrous metals, without clogging and undesirable residues. Application Precise grinding out of weld fillet geometries, chamfering, deburring. Size 115 x 16; 125 x 16 - Wide version (L) for fillet welds > 8 mm. Size 115x14; 125x14- Medium width version (M) for fillet welds > 5 mm. ZA STEEL CER S/STL Disc 0x width mm 115X14 115x16 125X14 125X16 55 a 56 6320 us POLIFAN-CURVE (ZA) abrasive flap disc for steel 10 s 56 6325 PFERD 5 POLIFAN-CURVE (CER) abrasive flap disc for stainless steel 10 s 56 6327 18 POLIFAN-CURVE (A) abrasive flap disc for aluminium 10 Width at radius mm 11 14 11 14 For weld fillet radii mm >5 >8 >5 >8 SLTflex pad-less flap disc J < M14 Version The sickle-shaped strips (patented) are radially linked to a high-strength GRP centre. The pad-less design permits an extremely large overlap between strips. Very high coating density. M14 threaded mounting, no clamping nut required. 56 6300-6310- Zirconium Aluminium Oxide (ZA) with active upper layer bonding for general-purpose use. 566312-6313- Ceramic grit (CER) with active upper layer bonding for heavy duty. Application For use in inaccessible places, contour grinding and for grinding out of weld fillets. Large overlap between strips permits soft cutting. Grit size 1566300 - Abrasive flap disc 156 6310 SLTfle (ZAL mounting M14 1566312 oijSi- 0 115 mm 0 125 mm Flap disc 1566313 SLTfle (CES' mounting M14 0 115 mm 0 125 mm 40 60 80 120 10 10 10 10 ZA STEEL 566320 NON FERROUS 566325 566327 566300 566312 1074 Main catalogue Hoffmann Group 46
