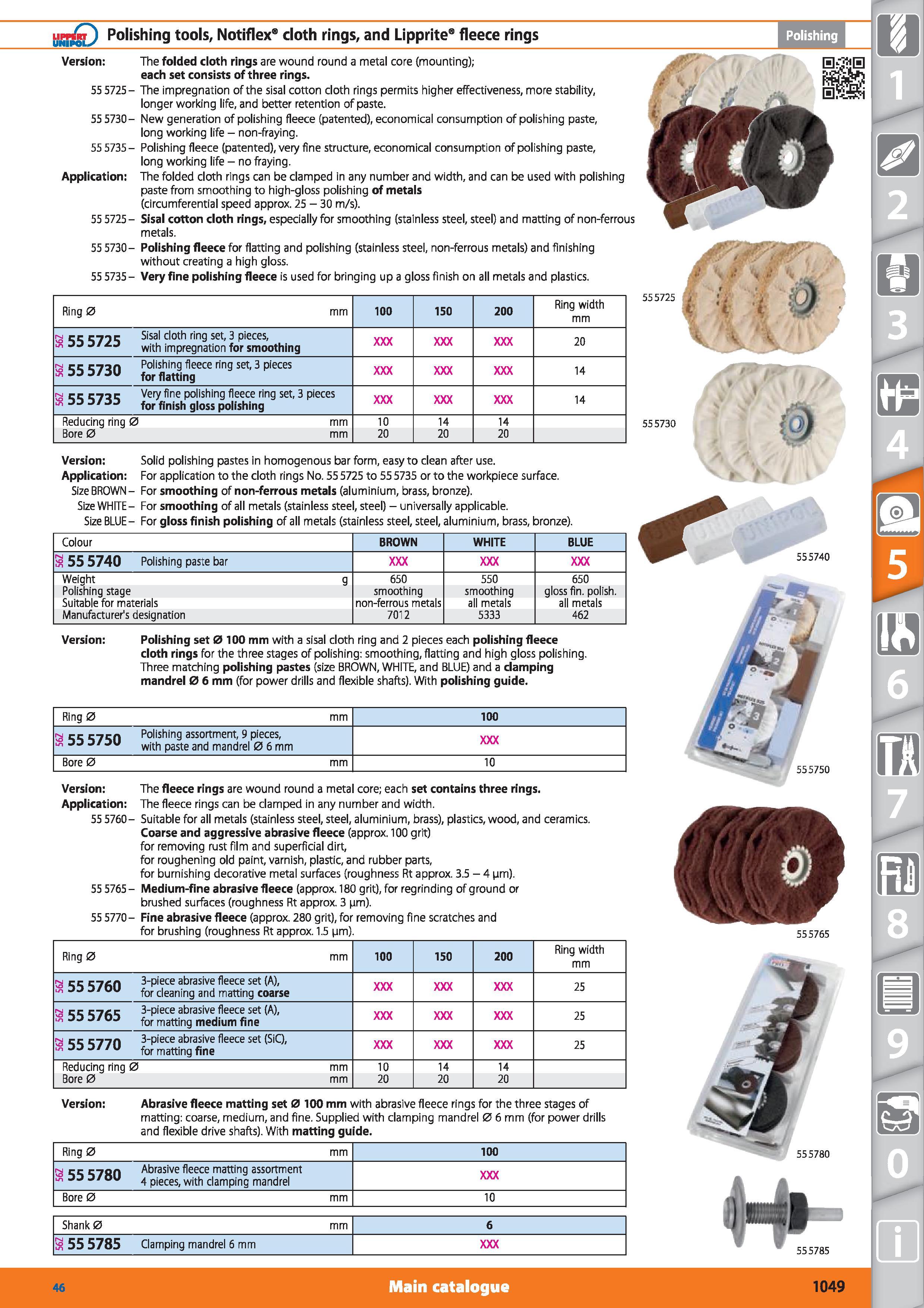

unSpoD Polishing tools, Notiflex doth rings, and Lipprite fleece rings Version The folded cloth rings are wound round a metal core (mounting); each set consists of three rings. 55 5725- The impregnation of the sisal cotton cloth rings permits higher effectiveness, more stability, longer working life, and better retention of paste. 55 5730- New generation of polishing fleece (patented), economical consumption of polishing paste, long working life - non-fraying. 55 5735- Polishing fleece (patented), very fine structure, economical consumption of polishing paste, long working life - no fraying. Application The folded doth rings can be clamped in any number and width, and can be used with polishing paste from smoothing to high-gloss polishing of metals (circumferential speed approx. 25 - 30 m/s). 55 5725 - Sisal cotton cloth rings, especially for smoothing (stainless steel, steel) and matting of non-ferrous metals. 55 5730- Polishing fleece for flatting and polishing (stainless steel, non-ferrous metals) and finishing without creating a high gloss. 55 5735- Very fine polishing fleece is used for bringing up a gloss finish on all metals and plastics. Ring 0 mm 100 150 200 Ring width mm 8 55 5725 Sisal cloth ring set, 3 pieces, with impregnation for smoothing 20 8 55 5730 Polishing fleece ring set, 3 pieces for flatting 14 9> 55 5735 Very fine polishing fleece ring set, 3 pieces for finish gloss polishing 14 Reducing ring 0 mm 10 14 14 Bore 0 mm 20 20 20 Version Solid polishing pastes in homogenous bar form, easy to clean after use. Application For application to the cloth rings No. 55 5725 to 55 5735 or to the workpiece surface. Size BROWN - For smoothing of non-ferrous metals (aluminium, brass, bronze). Size WHITE- For smoothing of all metals (stainless steel, steel) - universally applicable. Size BLUE- For gloss finish polishing of all metals (stainless steel, steel, aluminium, brass, bronze). Colour BROWN WHITE BLUE 8 55 5740 Polishing paste bar Weight g 650 550 650 Polishing stage smoothing smoothing gloss fin. polish. Suitable for materials non-ferrous metals all metals all metals Manufacturer's designation 7012 5333 462 Version Polishing set 0 100 mm with a sisal cloth ring and 2 pieces each polishing fleece cloth rings for the three stages of polishing smoothing, flatting and high gloss polishing. Three matching polishing pastes (size BROWN, WHITE, and BLUE) and a clamping mandrel 0 6 mm (for power drills and flexible shafts). With polishing guide. Ring 0 mm 100 55 5750 Polishing assortment, 9 pieces, with paste and mandrel 0 6 mm Bore 0 mm 10 Version The fleece rings are wound round a metal core; each set contains three rings. Application The fleece rings can be clamped in any number and width. 55 5760- Suitable for all metals (stainless steel, steel, aluminium, brass), plastics, wood, and ceramics. Coarse and aggressive abrasive fleece (approx. 100 grit) for removing rust film and superficial dirt, for roughening old paint, varnish, plastic, and rubber parts, for burnishing decorative metal surfaces (roughness Rt approx. 3.5 - 4 nm). 55 5765- Medium-fine abrasive fleece (approx. 180 grit), for regrinding of ground or brushed surfaces (roughness Rt approx. 3 pm). 55 5770- Fine abrasive fleece (approx. 280 grit), for removing fine scratches and for brushing (roughness Rt approx. 1.5 nm). Ring 0 mm 100 150 200 Ring width mm 8 55 5760 3-piece abrasive fleece set (A), for cleaning and matting coarse 25 8 55 5765 3-piece abrasive fleece set (A), for matting medium fine 25 8 55 5770 3-piece abrasive fleece set (SiC), for matting fine 25 Reducing ring 0 mm 10 14 14 Bore 0 mm 20 20 20 Version Abrasive fleece matting set 0 100 mm with abrasive fleece rings for the three stages of matting coarse, medium, and fine. Supplied with clamping mandrel 0 6 mm (for power drills and flexible drive shafts). With matting guide. Ring 0 mm 100 8 55 5780 Abrasive fleece matting assortment 4 pieces, with clamping mandrel Bore 0 mm 10 Shank 0 mm 6 3 55 5785 Clamping mandrel 6 mm 555785 1049 Polishing l(J 555725 555730 555765 555740 555750 Main catalogue
