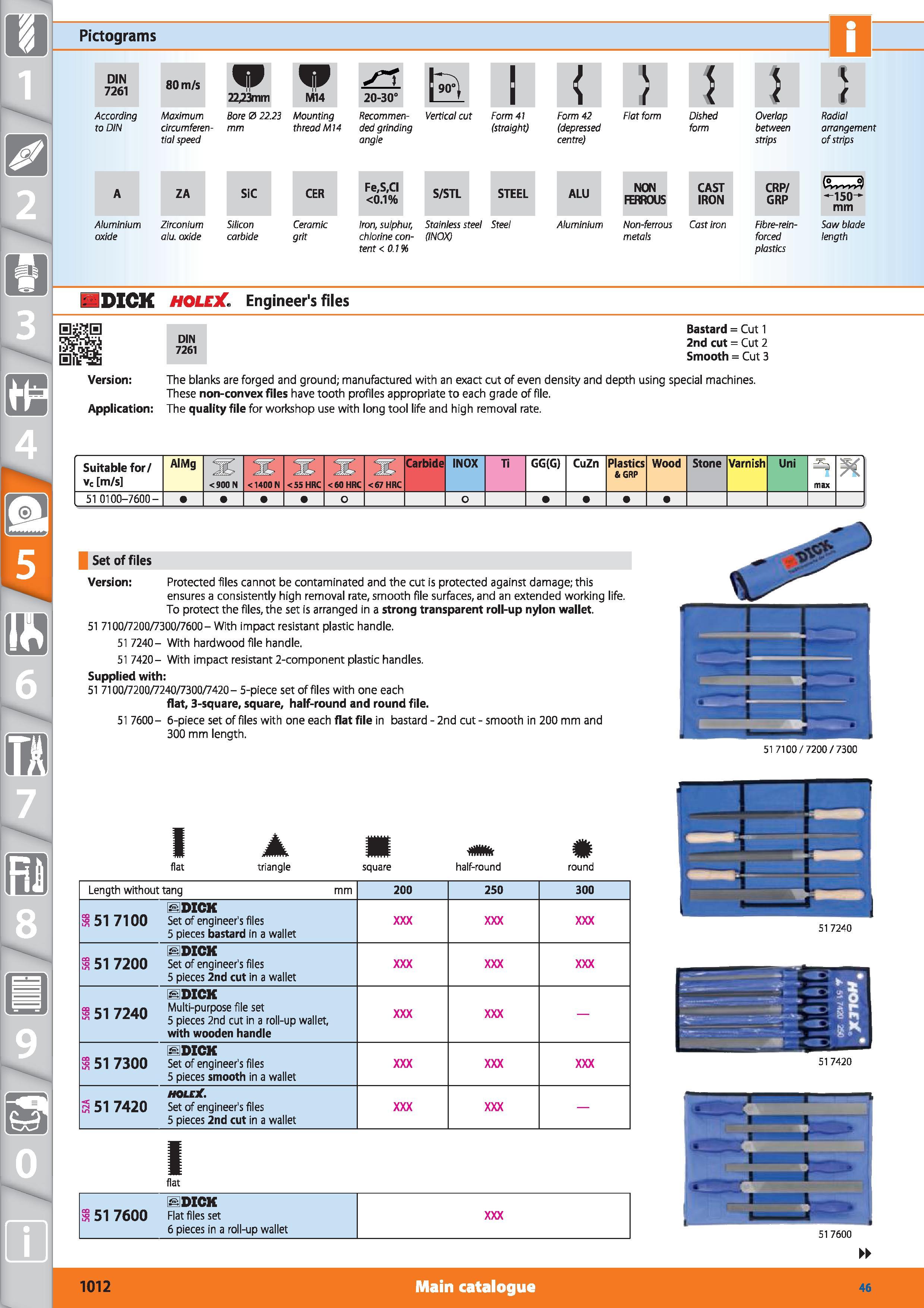

1 Pictograms DIN 7261 According to DIN 80 m/s Maximum circumferential speed 22,23mm M14 20-30° Bore 0 22.23 mm Mounting thread Ml4 Recommended grinding angle Vertical cut Form 41 (straight) Form 42 Flat form (depressed centre) Dished form \ Overlap ) Radial between arrangement strips of strips A ZA Aluminium Zirconium oxide alu. oxide SiC CER Fe,S,CI <0.1% S/STL STEEL ALU NON FERROUS CAST IRON CRP/ GRP (W3 -150- mm Silicon carbide Ceramic grit Iron, sulphur, Stainless steel Steel chlorine con- (INOX) tent <0.196 Aluminium Non-ferrous Cast iron metals Fibre-rein- Saw blade forced length plastics DICK HOLEX Engineer's files 11 DIN 7261 Bastard Cut 1 2nd cut Cut 2 Smooth Cut 3 Version The blanks are forged and ground; manufactured with an exact cut of even density and depth using special machines. These non-convex files have tooth profiles appropriate to each grade of file. Application The quality file for workshop use with long tool life and high removal rate. (Ul to Suitable for/ vc m/s AIMg <900 N < 1400 N < 55 HRC < 60 HRC <67HRC Carbide INOX Ti GG(G) CuZn Plastics & GRP Wood Stone Varnish Uni max 51 0100-7600- Set of files Version Protected files cannot be contaminated and the cut is protected against damage; this ensures a consistently high removal rate, smooth file surfaces, and an extended working life. To protect the files, the set is arranged in a strong transparent roll-up nylon wallet. 51 7100/7200/7300/7600- With impact resistant plastic handle. 51 7240- With hardwood file handle. 51 7420- With impact resistant 2-component plastic handles. Supplied with 51 7100/7200/7240/7300/7420- 5-piece set of files with one each flat, 3-square, square, half-round and round file. 51 7600 - 6-piece set of files with one each flat file in bastard - 2nd cut-smooth in 200 mm and 300 mm length. flat A triangle square half-round round Length without tang mm 200 250 300 a 51 7100 19 DICK Set of engineer's files 5 pieces bastard in a wallet a 51 7200 19 DICK Set of engineer's files 5 pieces 2nd cut in a wallet a 51 7240 DICK Multi-purpose file set 5 pieces 2nd cut in a roll-up wallet, with wooden handle a 51 7300 DICK Set of engineer's files 5 pieces smooth in a wallet s 51 7420 HOLEX Set of engineer's files 5 pieces 2nd cut in a wallet 517240 517420 flat 19 DICK a 51 7600 Flat files set 6 pieces in a roll-up wallet 51 7600 51 7100 / 7200 / 7300 1012 Main catalogue Hoffmann Group 46
