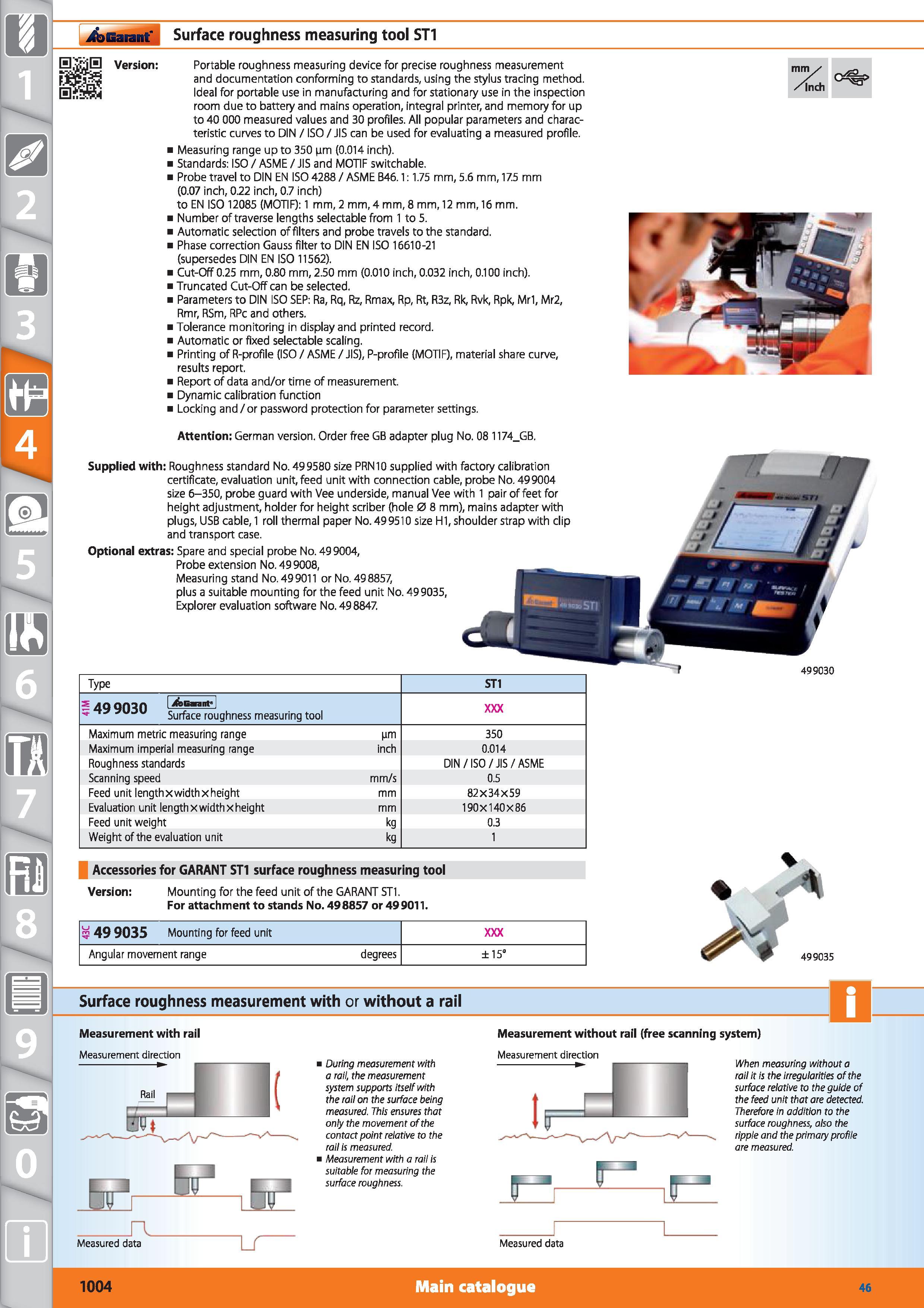

Garant Surface roughness measuring tool ST1 Version Da (Ul Portable roughness measuring device for precise roughness measurement and documentation conforming to standards, using the stylus tracing method. Ideal for portable use in manufacturing and for stationary use in the inspection room due to battery and mains operation, integral printer, and memory for up to 40 000 measured values and 30 profiles. All popular parameters and characteristic curves to DIN / ISO / JIS can be used for evaluating a measured profile, i Measuring range up to 350 nm (0.014 inch), i Standards ISO / ASME / JIS and MOTIF switchable. i Probe travel to DIN EN ISO 4288 / ASME B46.1:1.75 mm, 5.6 mm, 17.5 mm (0.07 inch, 0.22 inch, 0.7 inch) to EN ISO 12085 (MOTIF) 1 mm, 2 mm, 4 mm, 8 mm, 12 mm, 16 mm. i Number of traverse lengths selectable from 1 to 5. i Automatic selection of filters and probe travels to the standard, i Phase correction Gauss filter to DIN EN ISO 16610-21 (supersedes DIN EN ISO 11562). i Cut-Off 0.25 mm, 0.80 mm, 2.50 mm (0.010 inch, 0.032 inch, 0.100 inch), i Truncated Cut-Off can be selected. i Parameters to DIN ISO SEP Ra, Rq, Rz, Rmax, Rp, Rt, R3z, Rk, Rvk, Rpk, Mrl, Mr2, Rmr, RSm, RPc and others, i Tolerance monitoring in display and printed record, i Automatic or fixed selectable scaling. i Printing of R-profile (ISO / ASME / JIS), P-profile (MOTIF), material share curve, results report, i Report of data and/or time of measurement, i Dynamic calibration function i Locking and/or password protection for parameter settings. Attention German version. Order free GB adapter plug No. 08 1174_GB. Supplied with Roughness standard No. 499580 size PRN10 supplied with factory calibration certificate, evaluation unit, feed unit with connection cable, probe No. 499004 size 6-350, probe guard with Vee underside, manual Vee with 1 pair of feet for height adjustment, holder for height scriber (hole 0 8 mm), mains adapter with plugs, USB cable, 1 roll thermal paper No. 499510 size H1, shoulder strap with clip and transport case. Optional extras Spare and special probe No. 499004, Probe extension No. 49 9008, Measuring stand No. 49 9011 or No. 498857, plus a suitable mounting for the feed unit No. 499035, Explorer evaluation software No. 498847. mm/ /inch Type ST1 -499030 Surface roughness measuring tool Maximum metric measuring range Hm 350 Maximum imperial measuring range inch 0.014 Roughness standards DIN/ISO/JIS/ASME Scanning speed mm/s 0.5 Feed unit lengthxwidthxheight mm 82x34x59 Evaluation unit lengthxwidthxheight mm 190X140 X 86 Feed unit weight kg 0.3 Weight of the evaluation unit kg 1 499030 Accessories for GARANT ST1 surface roughness measuring tool Version Mounting for the feed unit of the GARANT ST1. For attachment to stands No. 498857 or 499011. 9 49 9035 Mounting for feed unit Angular movement range degrees ±15“ 499035 Surface roughness measurement with or without a rail Measurement with rail Measurement direction _TL Measured data “LT i During measurement with a rail, the measurement system supports itself with the rail on the surface being measured This ensures that only the movement of the contact point relative to the rail is measured. i Measurement with a rail is suitable for measuring the surface roughness. Measurement without rail (free scanning system) Measurement direction za a _a Measured data When measuring without a rail it is the irregularities of the surface relative to the guide of the feed unit that are detected. Therefore in addition to the surface roughness, also the ripple and the primary profile are measured. 1004 Main catalogue Hoffmann Group 46
