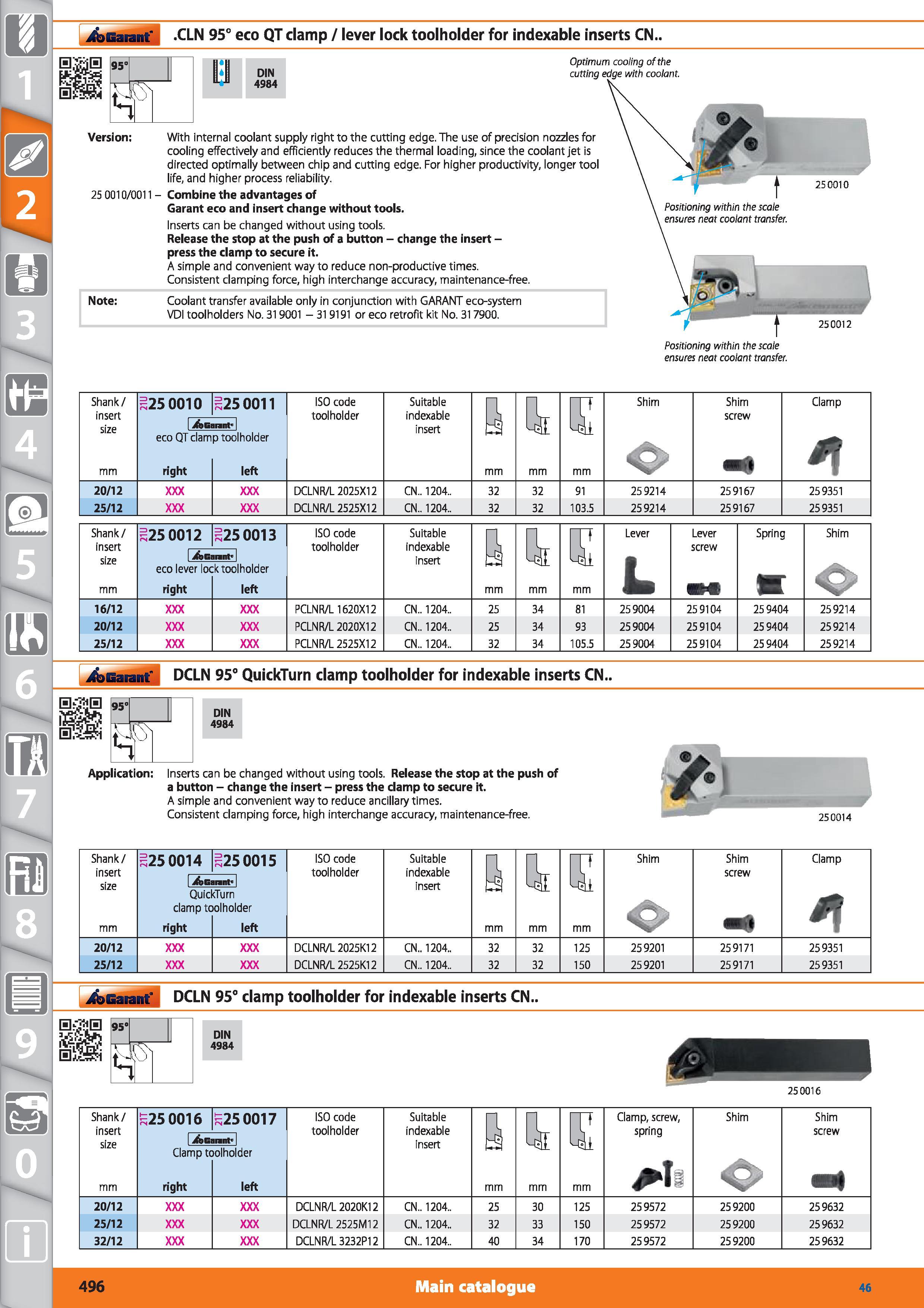

Garant .CLN 95° eco QT clamp / lever lock toolholder for indexable inserts CN 0 DIN 4984 Optimum cooling of the cutting edge with coolant. With internal coolant supply right to the cutting edge. The use of precision nozzles for cooling effectively and efficiently reduces the thermal loading, since the coolant jet is directed optimally between chip and cutting edge. For higher productivity, longer tool life, and higher process reliability. 25 0010/0011 - Combine the advantages of Garant eco and insert change without tools. Inserts can be changed without using tools. Release the stop at the push of a button - change the insert -press the clamp to secure it. A simple and convenient way to reduce non-productive times. Consistent clamping force, high interchange accuracy, maintenance-free. Note Coolant transfer available only in conjunction with GARANT eco-system VDI toolholders No. 319001 - 319191 or eco retrofit kit No. 317900. 250012 Positioning within the scale ensures neat coolant transfer. Shank/ insert size 25 0010 25 0011 eco QT clamp toolholder right left ISO code toolholder Suitable indexable insert Shim Shim screw Clamp 20/12 25/12 DCLNR/L 2025X12 DCLNR/L 2525X12 CN 1204 CN 1204 32 32 32 32 91 103.5 25 9214 259214 259167 259167 259351 259351 Shank/ insert size 250012 250013 eco lever lock toolholder right left ISO code toolholder Suitable indexable insert mm Lever L Lever screw Spring Shim 16/12 20/12 25/12 PCLNR/L1620X12 PCLNR/L2020X12 PCLNR/L 2525X12 CN 1204 CN 1204 CN 1204 25 25 32 34 34 34 81 93 105.5 259004 259004 259004 259104 259104 259104 259404 259404 259404 259214 259214 259214 ifetiaiantt" DCLN 95° QuickTurn clamp toolholder for indexable inserts CN. DIN 4984 Application Inserts can be changed without using tools. Release the stop at the push of a button - change the insert - press the clamp to secure it. A simple and convenient way to reduce ancillary times. Consistent clamping force, high interchange accuracy, maintenance-free. 250014 Shank/ insert size mm 250014 250015 ISO code toolholder Suitable indexable insert a mm G2 mm Shim Shim screw ft Clamp 1 Garant Quic clamp tc right
