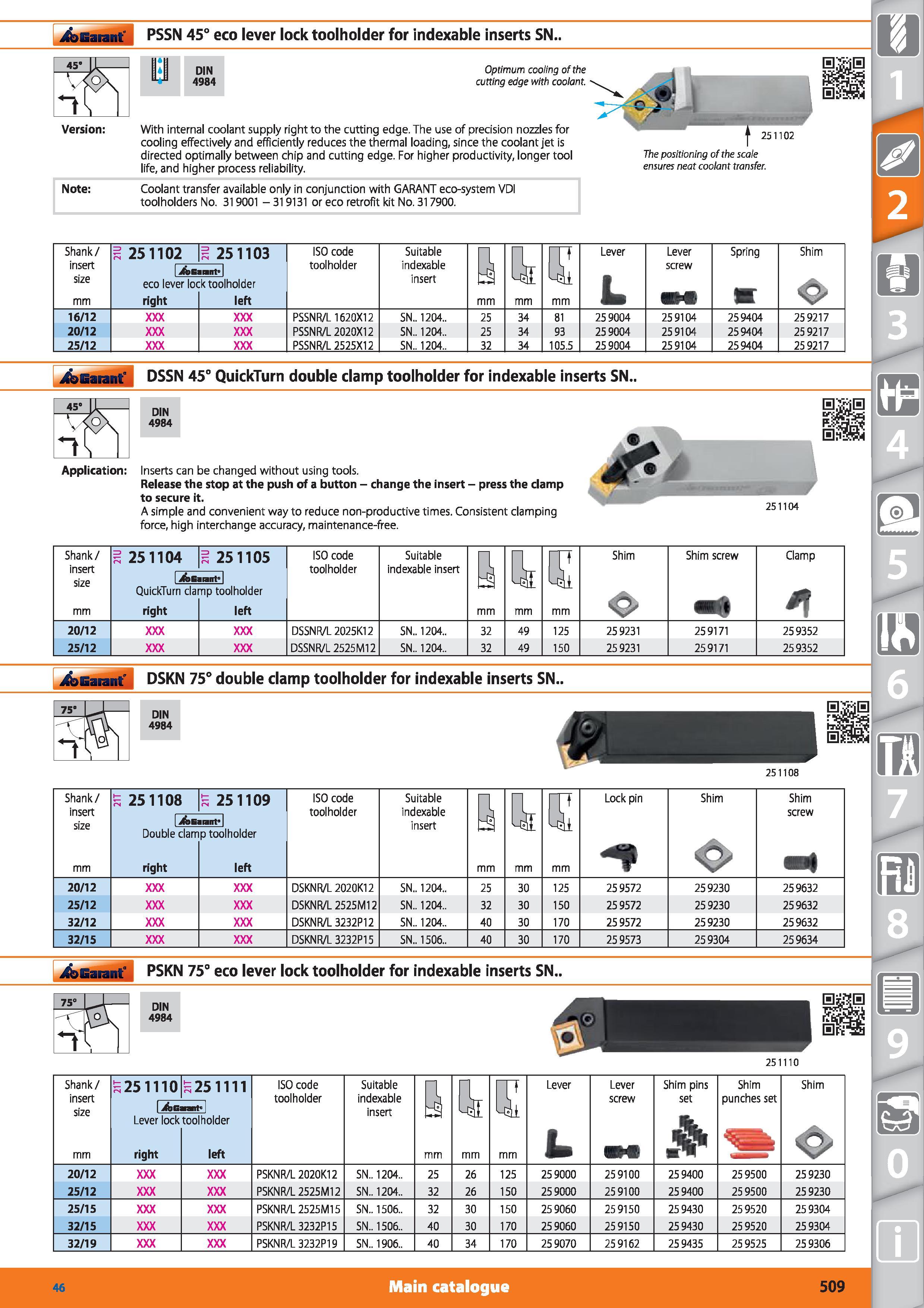

eco lever lock toolholder Garant PSSN 45° for indexable inserts SN Version 1J DIN 4984 Optimum cooling of the cutting edge with coolant. With internal coolant supply right to the cutting edge. The use of precision nozzles for cooling effectively and efficiently reduces the thermal loading, since the coolant jet is directed optimally between chip and cutting edge. For higher productivity, longer tool life, and higher process reliability. 251102 The positioning of the scale ensures neat coolant transfer. Note Coolant transfer available only in conjunction with GARANT eco-system VDI toolholders No. 319001 - 319131 or eco retrofit kit No. 317900. Shank/ insert size mm 251102 251103 ISO code toolholder Suitable indexable insert a Tim mm Lever L Lever screw Spring m Shim 0 1 jfesaiMit 1 eco lever lot right k toolholder left 16/12 PSSNR/L 1620X12 SN 1204 25 34 81 259004 259104 259404 25 9217 20/12 PSSNR/L 2020X12 SN 1204 25 34 93 259004 259104 259404 25 9217 25/12 PSSNR/L 2525X12 SN 1204 32 34 105.5 259004 259104 259404 25 9217 fningji DSSN 45° QuickTurn double clamp toolholder for indexable inserts SN. DIN 4984 Application Inserts can be changed without using tools. Release the stop at the push of a button - change the insert - press the damp to secure it. A simple and convenient way to reduce non-productive times. Consistent clamping force, high interchange accuracy, maintenance-free. 251104 Shank/ insert size mm 251104 251105 ISO code toolholder Suitable indexable insert a Tim mm Shim o Shim screw m Clamp i&Gannt” 1 QuickTurn cla right up toolholder left 20/12 DSSNR/L 2025K12 SN 1204 32 49 125 259231 259171 259352 25/12 DSSNR/L 2525M12 SN 1204 32 49 150 259231 259171 259352 Garant DSKN 75° double clamp toolholder for indexable inserts SN DIN 4984 251108 Shank/ insert size mm 5 251108 251109 ISO code toolholder Suitable indexable insert a Tim mm G2 mm Lock pin Shim o Shim screw J&Eannt' Double clam right p toolholder left 20/12 DSKNR/L 2020K12 SN 1204 25 30 125 259572 259230 259632 25/12 DSKNR/L 2525M12 SN 1204 32 30 150 259572 259230 259632 32/12 DSKNR/L 3232P12 SN 1204 40 30 170 259572 259230 259632 32/15 DSKNR/L 3232P15 SN 1506 40 30 170 259573 259304 259634 Garant PSKN 75° eco lever lock toolholder for indexable inserts SN DIN 4984 251110 Shank/ insert size mm 251110 1 Aa G Lever lock right 251111 ant11 toolholder left ISO code toolholder Suitable indexable insert a mm Oi mm E mm Lever L Lever screw Shim pins set Shim punches set m Shim o 20/12 PSKNR/L 2020K12 SN 1204 25 26 125 259000 259100 259400 259500 259230 25/12 PSKNR/L 2525M12 SN 1204 32 26 150 259000 259100 259400 259500 259230 25/15 PSKNR/L 2525M15 SN 1506 32 30 150 259060 259150 259430 259520 259304 32/15 PSKNR/L 3232P15 SN 1506 40 30 170 259060 259150 259430 259520 259304 32/19 PSKNR/L 3232P19 SN 1906 40 34 170 259070 259162 259435 259525 259306 Main catalogue Hoffmann Group 46 509
