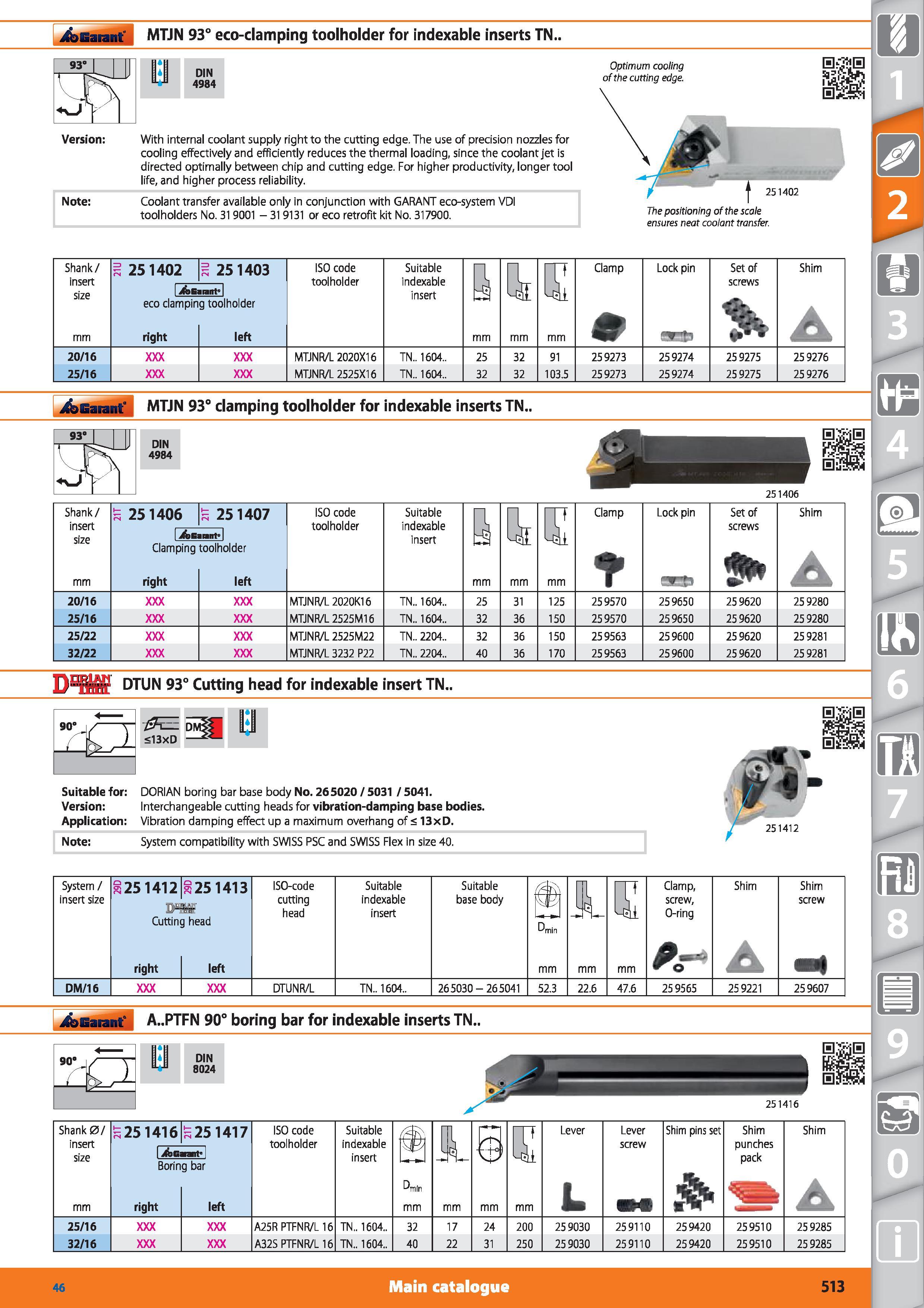

Eco-damping toolholder Garant MTJN 93° for indexable inserts TN Version With internal coolant supply right to the cutting edge The use of precisi

Eco-damping toolholder Garant MTJN 93° for indexable inserts TN. Version With internal coolant supply right to the cutting edge. The use of precision nozzles for cooling effectively and efficiently reduces the thermal loading, since the coolant jet is directed optimally between chip and cutting edge. For higher productivity, longer tool life, and higher process reliability. Note Coolant transfer available only in conjunction with GARANT eco-system VDI toolholders No. 319001 - 319131 or eco retrofit kit No. 317900. 251402 The positioning of the scale ensures neat coolant transfer. Optimum cooling of the cutting edge. Shank/ insert size 251402 251403 I jfegaant" eco clamping toolholder right left ISO code toolholder Suitable indexable insert Clamp Lock pin Set of screws Shim A 20/16 25/16 MTJNR/L 2020X16 MTJNR/L 2525X16 TN 1604 TN 1604 25 32 32 32 91 103.5 259273 259273 259274 259274 259275 259275 259276 259276 jfeiiarawt" MTJN 93° clamping toolholder for indexable inserts TN 251406 Shank/ insert size mm 251406 251407 ISO code toolholder Suitable indexable insert a Tim mm G2 mm Clamp Lock pin 5B555 Set of screws S Shim A ifeEannt 1 Clamping right toolholder left 20/16 MTJNR/L 2020K16 TN 1604 25 31 125 259570 259650 259620 259280 25/16 MTJNR/L 2525M16 TN 1604 32 36 150 259570 259650 259620 259280 25/22 MTJNR/L 2525M22 TN 2204 32 36 150 259563 259600 259620 259281 32/22 MTJNR/L 3232 P22 TN 2204 40 36 170 259563 259600 259620 259281 DTUN 93° Cutting head for indexable insert TN 90° 0EL <13xD Suitable for DORIAN boring bar base body No. 265020 / 5031 / 5041. Version Interchangeable cutting heads for vibration-damping base bodies. Application Vibration damping effect up a maximum overhang of < 13xD. Note System compatibility with SWISS PSC and SWISS Flex in size 40. 251412 System / insert size 1251412 DB Cuttin right 25 1413 head left ISO-code cutting head Suitable indexable insert Suitable base body Dmin mm 1 mm E mm Clamp, screw, 0-ring Shim A Shim screw m DM/16 DTUNR/L TN 1604 265030-265041 52.3 22.6 47.6 259565 259221 259607 Garant A..PTFN 90° boring bar for indexable inserts TN m'f ) iii DIN 8024 251416 Main catalogue Hoffmann Group 46 513
