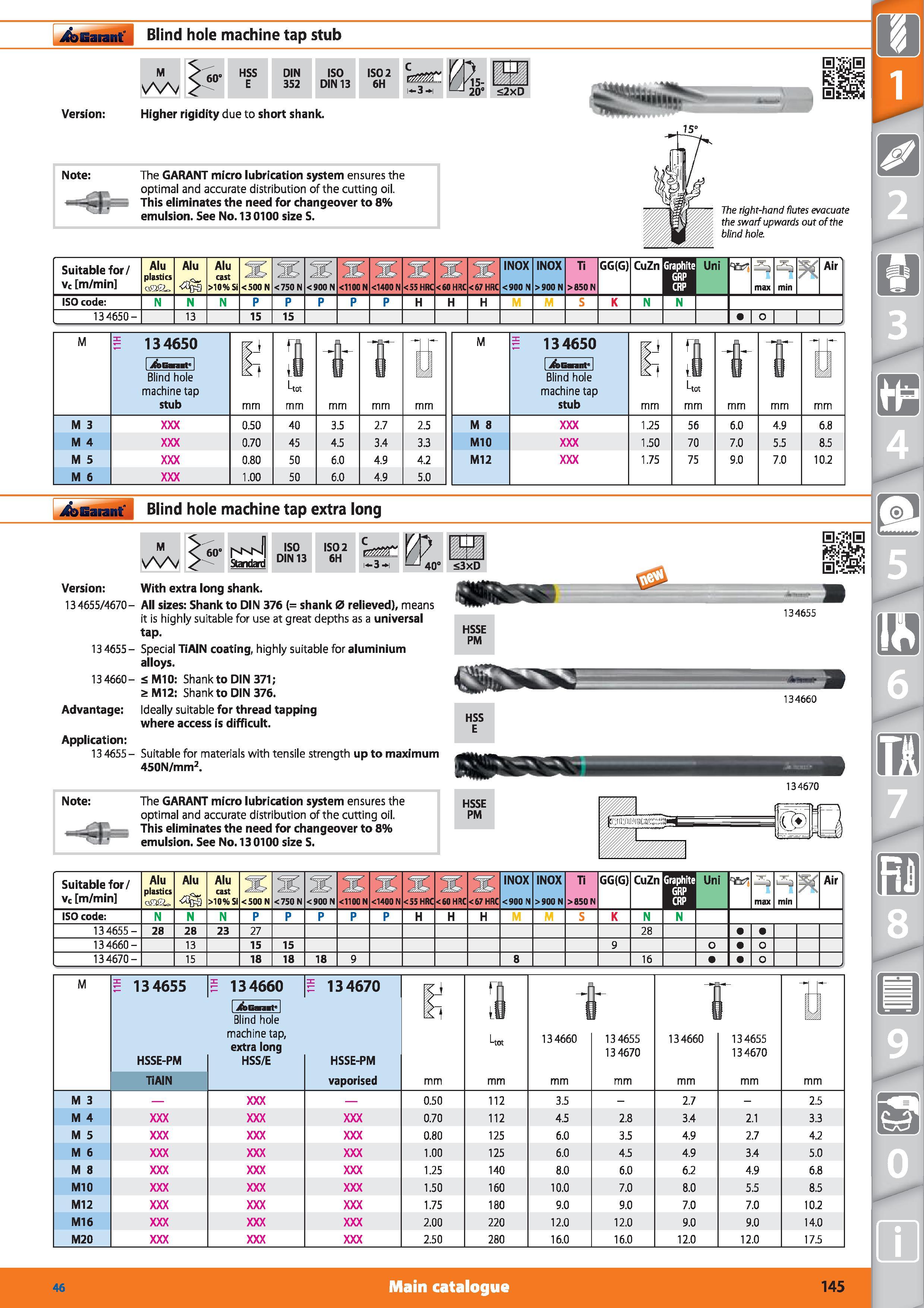

Blind hole machine tap stub Garant M 60 HSS E DIN 352 ISO DIN 13 ISO 2 6H 2xD Version Higher rigidity due to short shank Note The GARANT micro lu

Blind hole machine tap stub Garant M 60 HSS E DIN 352 ISO DIN 13 ISO 2 6H 2xD Version Higher rigidity due to short shank. Note The GARANT micro lubrication system ensures the optimal and accurate distribution of the cutting oil. This eliminates the need for changeover to 8% emulsion. See No. 130100 size S. The right-hand flutes evacuate the swarf upwards out of the blind hole. Suitable for/ vc m/min Alu plastics Alu < Alu cast >10% Si <500 N <750 N <900 N <1100N <1400N 2 PL INOX <900 N INOX >900 N Ti >850 N GG(G) CuZn Gra G C 1 Uni max min Air ISO code N P H K N 13 4650- 13 15 15 1 o J Garant Blind hole machine tap extra long M Standard ISO DIN 13 ISO 2 6H C i 3 i L-J40‘ <3xD Version With extra long shank. 134655/4670- All sizes Shank to DIN 376 (= shank 0 relieved), means it is highly suitable for use at great depths as a universal tap. 13 4655 - Special TiAIN coating, highly suitable for aluminium alloys. 13 4660- SM10 Shank to DIN 371; ;>M12 Shank to DIN 376. 0 0 02SH iT“ HSSE PM 134655 Advantage Ideally suitable for thread tapping where access is difficult. Application 13 4655- Suitable for materials with tensile strength up to maximum 450N/mm2. Note The GARANT micro lubrication system ensures the optimal and accurate distribution of the cutting oil. This eliminates the need for changeover to 8% emulsion. See No. 13 0100 size S. Suitable for/ vc m/min Alu plastics aS&c Alu < Alu cast >10% Si <500 N <750 N <900 N Fifirl <1100 N 1 1 <1400N He 900 N Ti >850 N GG(G) CuZn B Uni es’ max 1= =3 min Air ISO code N P H K N 1 1 134655- 28 28 23 27 28 13 4660- 13 15 15 9 134670- 15 18 18 18 9 8 16 O M 1 134655 1 134660 1 J&GampI Blind hole 1 134670 E S 1 1 r HSSE-PM machine tap, extra long HSS/E HSSE-PM Uot 134660 13 4655 13 4670 134660 134655 134670 TiAIN vaporised mm M 3 0.50 112 3.5 - 2.7 - 2.5 M 4 0.70 112 4.5 2.8 3.4 2.1 3.3 M 5 0.80 125 6.0 3.5 4.9 2.7 4.2 M 6 1.00 125 6.0 4.5 4.9 3.4 5.0 M 8 1.25 140 8.0 6.0 6.2 4.9 6.8 M10 1.50 160 10.0 7.0 8.0 5.5 8.5 M12 1.75 180 9.0 9.0 7.0 7.0 10.2 M16 2.00 220 12.0 12.0 9.0 9.0 14.0 M20 2.50 280 16.0 16.0 12.0 12.0 17.5 Main catalogue Hoffmann Group 46 145
