Balancing the tool arbors, chucks, and machine spindles prevents consequential damage and optimises the machining results HSK-T / PSC clamping to

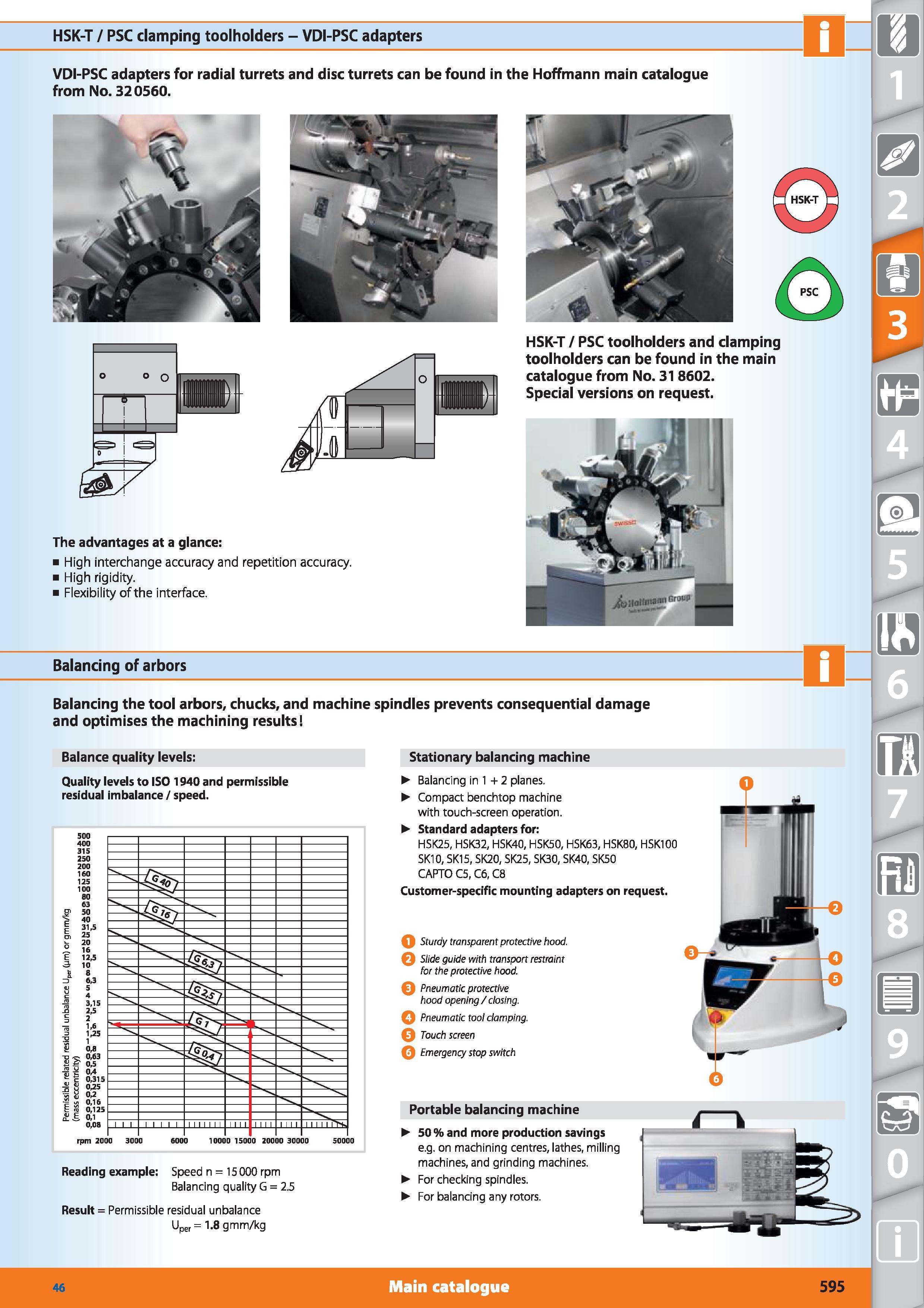

Balancing the tool arbors, chucks, and machine spindles prevents consequential damage and optimises the machining results HSK-T / PSC clamping toolholders - VDI-PSC adapters VDI-PSC adapters for radial turrets and disc turrets can be found in the Hoffmann main catalogue from No. 320560. The advantages at a glance High interchange accuracy and repetition accuracy. High rigidity. Flexibility of the interface. Q Sturdy transparent protective hood. Slide guide with transport restraint for the protective hood. Pneumatic protective hood opening / closing. Pneumatic tool clamping. Touch screen Emergency stop switch HSK-T / PSC toolholders and clamping toolholders can be found in the main catalogue from No. 31 8602. Special versions on request. Balance quality levels Quality levels to ISO 1940 and permissible residual imbalance / speed. Reading example Speed n 15000 rpm Balancing quality G 2.5 Result Permissible residual unbalance Uper= 1.8 g mm/kg Portable balancing machine 50% and more production savings e.g. on machining centres, lathes, milling machines, and grinding machines. For checking spindles. For balancing any rotors. Stationary balancing machine Balancing in 1 + 2 planes. Compact benchtop machine with touch-screen operation. Standard adapters for HSK25, HSK32, HSK40, HSK50, HSK63, HSK80, HSK100 SK10, SKI 5, SK20, SK25, SK30, SK40, SK50 CAPTO C5, C6, C8 Customer-specific mounting adapters on request. Main catalogue Hoffmann Group 46 595
