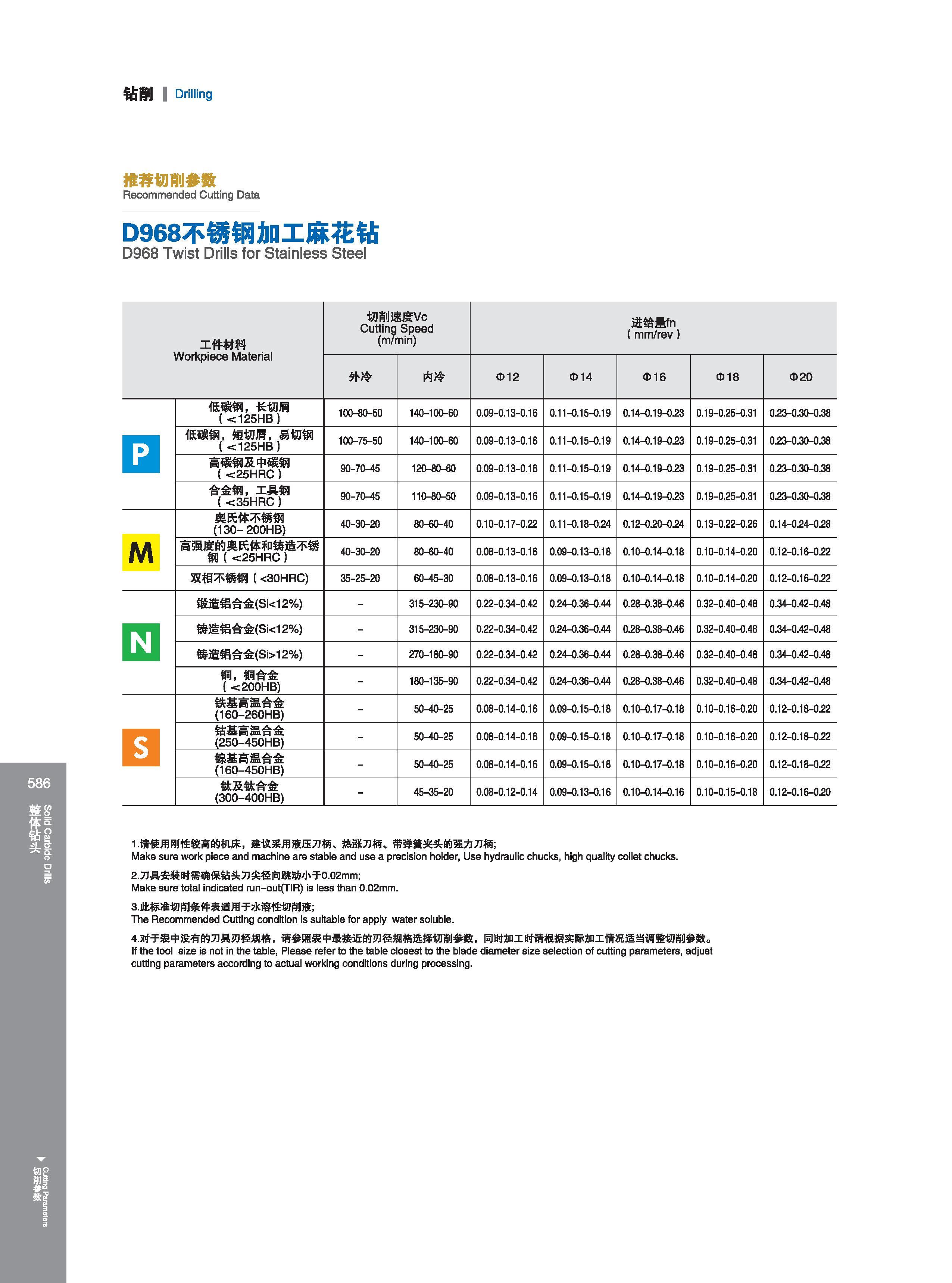

592 Каталог GESAC 2015 Станочный металлорежущий инструмент с СРП и монолитный Стр.586

Каталог GESAC 2015 Инструмент металлорежущий Стр. 586 0592 Lab2u

钻削 I Drilling 推荐切削参数 Recommended Cutting Data Режимы резания на станках (рекомендованные производителем инструмента) D968不锈钢加工麻花钻 D968 Twist Drills for Stainless Steel Нержавеющая сталь 工件材料 Workpiece Material Обрабатываемые материалы по ISO 切削速度 Vc Cutting Speed (m/min) Скорость резания (м/мин) 进给量 fn (mm/rev) Подача (мм/об) 外冷 内冷 012 014 016 018 020 低碳钢，长切屑 (<125HB) 100-80-50 140-100-60 0.09-0.13-0.16 0.11-0.15-0.19 0.14-0.19-0.23 0.19-0.25-0.31 0.23-0.30-0.38 低碳钢，短切屑，易切钢 (<125HB) 100-75-50 140-100-60 0.09-0.13-0.16 0.11-0.15-0.19 0.14-0.19-0.23 0.19-0.25-0.31 0.23-0.30-0.38 高碳钢及中碳钢 (<25HRC) 90-7(M5 120-80-60 0.09-0.13-0.16 0.11-0.15-0.19 0.14-0.19-0.23 0.19-0.25-0.31 0.23-0.30-0.38 合金钢，工具钢 (<35HRC) 90-7CM5 110-00-50 0.09-0.13-0.16 0.11-0.15-0.19 0.14-0.19-0.23 0.19-0.25-0.31 0.23-0.30-0.38 奥氏体不锈钢 (130- 200HB) 40-30-20 80-60-40 0.10-0.17-0.22 0.11-0.18-0.24 0.12-0.20-0.24 0.13-0.22-0.26 0.14-0.24-0.28 M 高强度的奥氏体和铸造不绣 钢（<25HRC) 40-30-20 80-60-40 0.08-0.13-0.16 0.09-0.13-0.18 0.10-0.14-0.18 0.10-0.14-0.20 0.12-0.16-0.22 双相不锈钢（<30HRC) 35-25-20 60 善 30 0.08-0.13-0.16 0.09-0.13-0.18 0.10-0.14-0.18 0.10-0.14-0.20 0.12-0.16-0.22 锻造铝合金(Si<12%> - 315-230-90 0.22-0.34-0.42 0.24-0.36-0.44 0.28-0.38-0.46 0.32-0.40-0.48 0.34-0.42-0.48 铸造铝合金(Si<12%> - 315-230-90 0.22-0.34-0.42 0.24-0.36-0.44 0.28-0.38-0.46 0.32-0.40-0.48 0.34-0.42-0.48 铸造铝合金(Si>12%> - 270-180-90 0.22-0.34-0.42 0.24-0.36-0.44 0.28-0.38-0.46 0.32-0.40-0.48 0.34-0.42-0.46 铜，铜合金 <200HB) - 180-135-90 0.22-0.34-0.42 0.24 0.36-0.44 0.28-0.38-0.46 0.32-0.40-0.48 0.34-0.42-0.48 B 铁基高温合金 (160-260HB) - 50 喜 25 0.08-0.14-0.16 0.09-0.15-0.18 0.10-0.17-0.18 0.10-0.16-0.20 0.12-0.18-0.22 钻基局温合金 (250-450HB) - 50-40-25 0.08-0.14-0.16 0.09-0.15-0.18 0.10-0.17-0.18 0.10-0.16-0.20 0.12-0.18-0.22 镍基高温合金 (160-450HB) - 50善25 0.08-0.14-0.16 0.09-0.15-0.18 0.10-0.17-0.18 0.10-0.16-0.20 0.12-0.18-0.22 钛及钛合金 (300-400HB) - 45-35-20 0.08-0.12-0.14 0.09-0.13-0.16 0.10-0.14-0.16 0.10-0.15-0.18 0.12-0.16-0.20 1.请使用刚性较高的机床，建议采用液压刀柄 热涨刀柄 带弹簧夹头的强力刀柄； Make sure work piece and machine are stable and use a precision holder, Use hydraulic chucks, high quality collet chucks. 2.刀具安装时需确保钻头刀尖径向跳动小于0.02mm; Make sure total indicated run-out(TIR) is less than 0.02mm. 3.此标准切削条件表适用于水溶性切削液； The Recommended Cutting condition is suitable for apply water soluble. 4.对于表中没有的刀具刃径规格，请参照表中最接近的刃径规格选择切削参数，同时加工时请根据实际加工情况适当调整切削参数。 If the tool size is not in the table, Please refer to the table closest to the blade diameter size selection of cutting parameters, adjust cutting parameters according to actual working conditions during processing.
