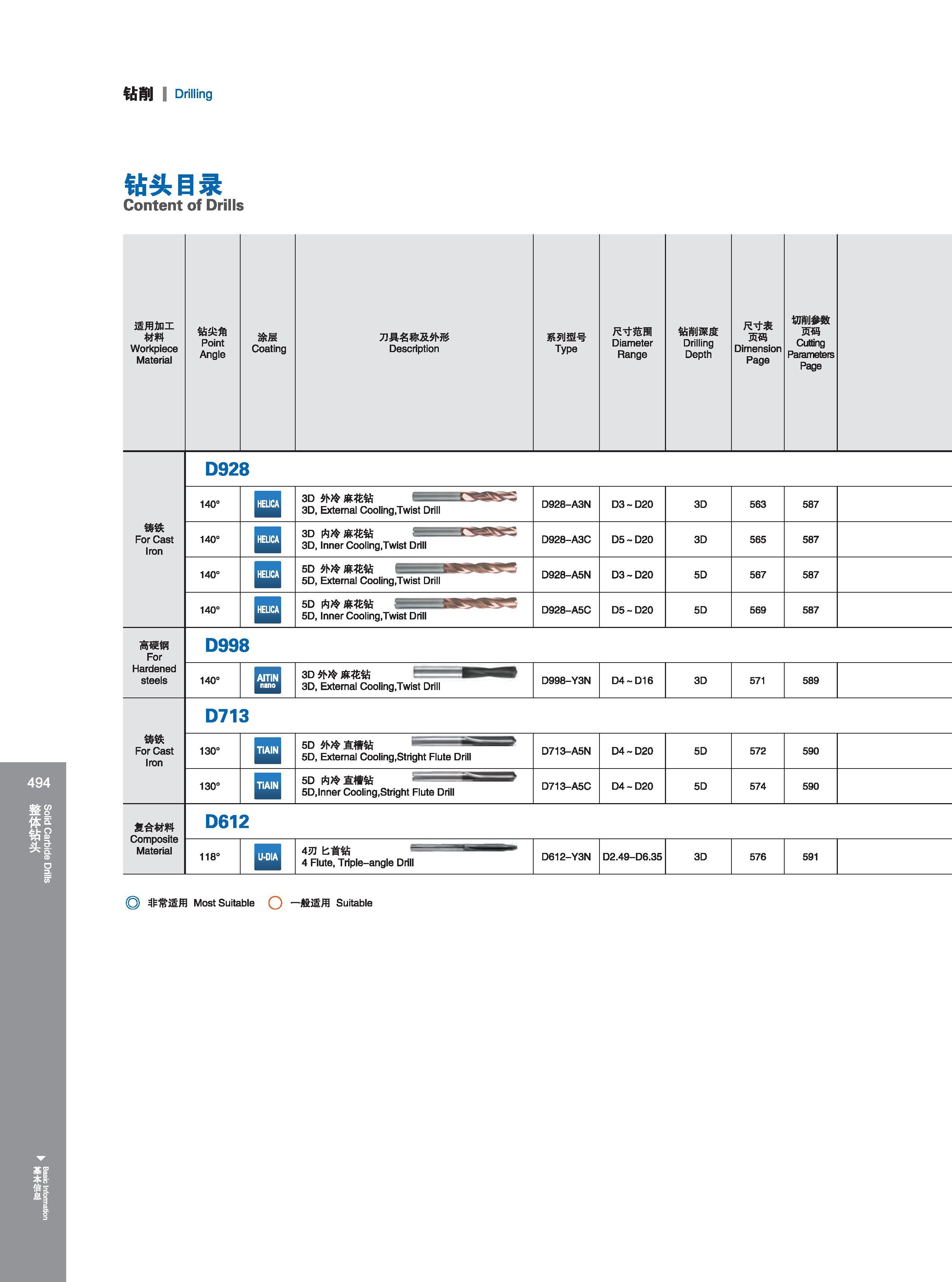

钻削 Drilling 钻头目录 Content of Drills 适用加工 材料 Workpiece Material Обрабатываемые материалы по ISO 钻尖角 Point Angle 涂层 Coating 刀具名称及外形 Description 系列型号 Type 尺寸范围 Diameter Range 钻削深度 Drilling Depth 尺寸表 页码 Dimension Page 切削参数 页码 Cutting Parameters Page 铸铁 For Cast Iron Чугун D928 140° HELICA HELICA HELICA HELICA 3D夕卜冷麻花钻 3D, External Cooling,Twist Drill D928-A3N D3 D20 3D 563 587 140° 3D内冷麻花钻 3D，Inner Cooling,Twist Drill D928-A3C D5 D20 3D 565 587 140。 5D夕卜冷麻花钻 5D, External Cooling,Twist Drill D928-A5N D3-D20 5D 567 587 140。 5D内冷麻花钻 5D, Inner Cooling,Twist Drill D928-A5C D5 D20 5D 569 587 高硬钢 For Hardened steels D998 140° 3D外冷麻花钻 3D, External Cooling,Twist Drill D998-Y3N D4-D16 3D 571 589 铸铁 For Cast Iron Чугун D713 130° TiAINj 5D, External Cooling,Stright Flute Drill D713-A5N D4-D20 5D 572 590 130° TiAInJ 5D,Inner Cooling,Stright Flute Drill D713-A5C D4 D20 5D 574 590 复合材料 Composite Material D612 118° 丨U-DIA丨 4 Flute, Triple-angle Drill D612-Y3N D2.49-D6.35 3D 576 591 非常适用 Most Suitable Q 般适用 Suitable
