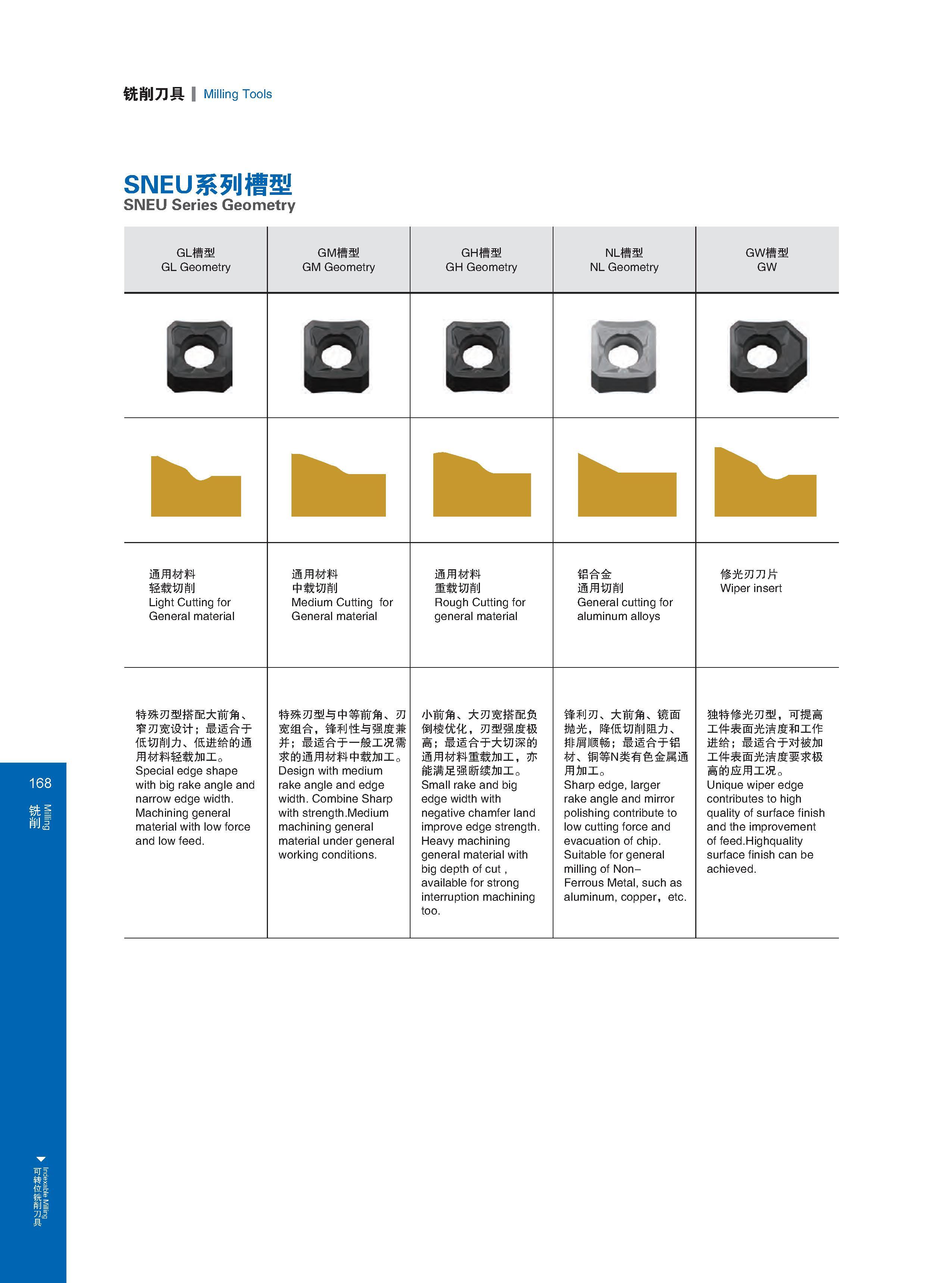

Indexable Milling 铣削刀具 Milling Tools 168 SNEU系列槽型 SNEU Series Geometry GL槽型 GL Geometry GM槽型 GM Geometry GH槽型 GH Geometry NL槽型 NL Geometry GW槽型 GW 通用材料 轻载切削 Light Cu廿ing for General material 通用材料 中载切削 Medium Cutting for General material 通用材料 重载切削 Rough Cutting for general material 铝合金 通用切削 General cutting for aluminum alloys 修光刃刀片 Wiper insert 特殊刃型搭配大前角 窄刃宽设计；最适合于 低切削力 低进给的通 用材料轻载加工。 Special edge shape with big rake angle and narrow edge width. Machining general material with low force and low feed. 特殊刃型与中等前角 刃 宽组合，锋利性与强度兼 并；最适合于一般工况需 求的通用材料中载加工。 Design with medium rake angle and edge width. Combine Sharp with strength.Medium machining general material under general working conditions. 小前角 大刃宽搭配负 倒棱优化，刃型强度极 高；最适合于大切深的 通用材料重载加工，亦 能满足强断续加工。 Small rake and big edge width with negative chamfer land improve edge strength. Heavy machining general material with big depth of cut , available for strong interruption machining too. 锋利刃 大前角 镜面 抛光，降低切削阻力 排屑顺畅；最适合于铝 材 铜等N类有色金属通 用加工。 Sharp edge, larger rake angle and mirror polishing contribute to low cutting force and evacuation of chip. Suitable for general milling of Non-Ferrous Metal, such as aluminum, copper，etc. 独特修光刃型，可提高 工件表面光洁度和工作 进给；最适合于对被加 工件表面光洁度要求极 高的应用工况。 Unique wiper edge contributes to high quality of surface finish and the improvement of feed.Highquality surface finish can be achieved.
