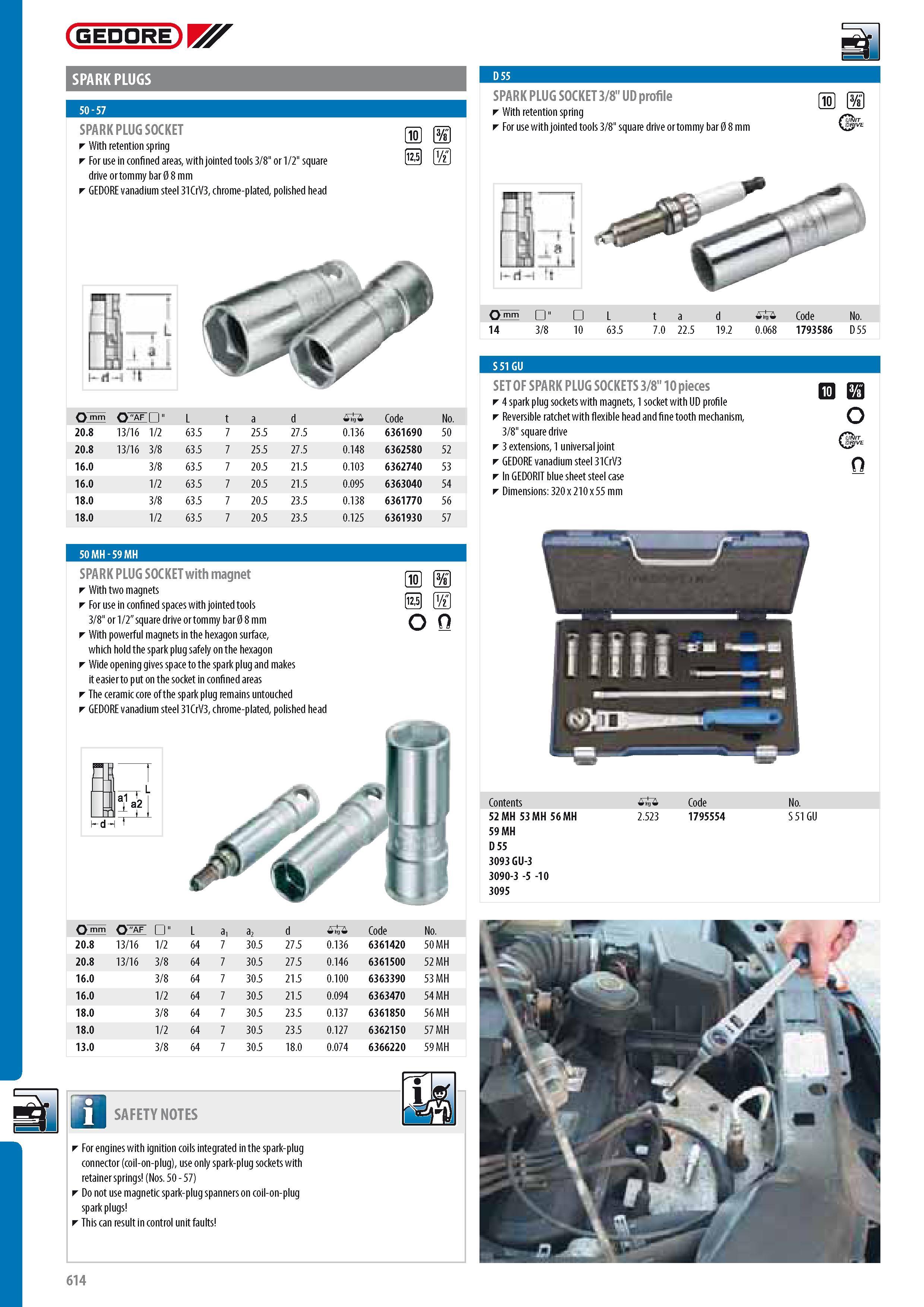

GEDORE SPARK PLUGS SPARK PLUG SOCKET With retention spring For use in confined areas with jointed tools 3 8" or 1 2" square drive or tommy bar 0 8 mm GEDORE vanadium steel 31CrV3 chrome-plated polished head N S O T mm QqQ" L a d 0 Code No. 20.8 13 16 1 2 63.5 7 25.5 27.5 0.136 6361690 50 20.8 13 16 3 8 63.5 7 25.5 27.5 0.148 6362580 52 16.0 3 8 63.5 7 20.5 21.5 0.103 6362740 53 16.0 1 2 63.5 20.5 21.5 0.095 6363040 54 18.0 3 8 63.5 7 20.5 23.5 0.138 6361770 56 18.0 1 2 63.5 7 20.5 23.5 0.125 6361930 57 50 MH - 59 MH SPARK PLUG SOCKET with magnet With two magnets For use in confined spaces with jointed tools 3 8" or 1 2 square drive or tommy bar 0 8 mm With powerful magnets in the hexagon surface which hold the spark plug safely on the hexagon Wide opening gives space to the spark plug and makes it easier to put on the socket in confined areas The ceramic core of the spark plug remains untouched GEDORE vanadium steel 31CrV3 chrome-plated polished head N S O T O 0 to hdnT m Q"af " L a1 a2 d 0 Code No. 20.8 13 16 1 2 64 7 30.5 27.5 0.136 6361420 50 MH 20.8 13 16 3 8 64 7 30.5 27.5 0.146 6361500 52 MH 16.0 3 8 64 7 30.5 21.5 0.100 6363390 53 MH 16.0 1 2 64 7 30.5 21.5 0.094 6363470 54 MH 18.0 3 8 64 7 30.5 23.5 0.137 6361850 56 MH 18.0 1 2 64 7 30.5 23.5 0.127 6362150 57 MH 13.0 3 8 64 7 30.5 18.0 0.074 6366220 59 MH a SAFETY NOTES For engines with ignition coils integrated in the spark-plug connector (coil-on-plug) use only spark-plug sockets with retainer springs (Nos. 50 - 57) Do not use magnetic spark-plug spanners on coil-on-plug spark plugs This can result in control unit faults I SPARK PLUG SOCKET 3 8" UD profile With retention spring For use with jointed tools 3 8" square drive or tommy bar 0 8 mm N S fmiiT wuve m " L a d 0 Code No. 14 3 8 10 63.5 7.0 22.5 19.2 0.068 1793586 D 55 S 51 GU SET OF SPARK PLUG SOCKETS 3 8" 10 pieces 4 spark plug sockets with magnets 1 socket with UD profile Reversible ratchet with flexible head and fine tooth mechanism 3 8" square drive 3 extensions 1 universal joint GEDORE vanadium steel 31CrV3 In GEDORIT blue sheet steel case Dimensions 320 x 210 x 55 mm n c O fmiiT 3' 0 Contents 52 MH 53 MH 56 MH 59 MH D 55 3093 GU-3 3090-3 -5 -10 3095 0 2.523 Code 1795554 No. S 51 GU 614 50 - 57
