609 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.607

Каталог GEDORE 2014 Слесарный инструмент Стр. 607 0609 ENG Lab2u

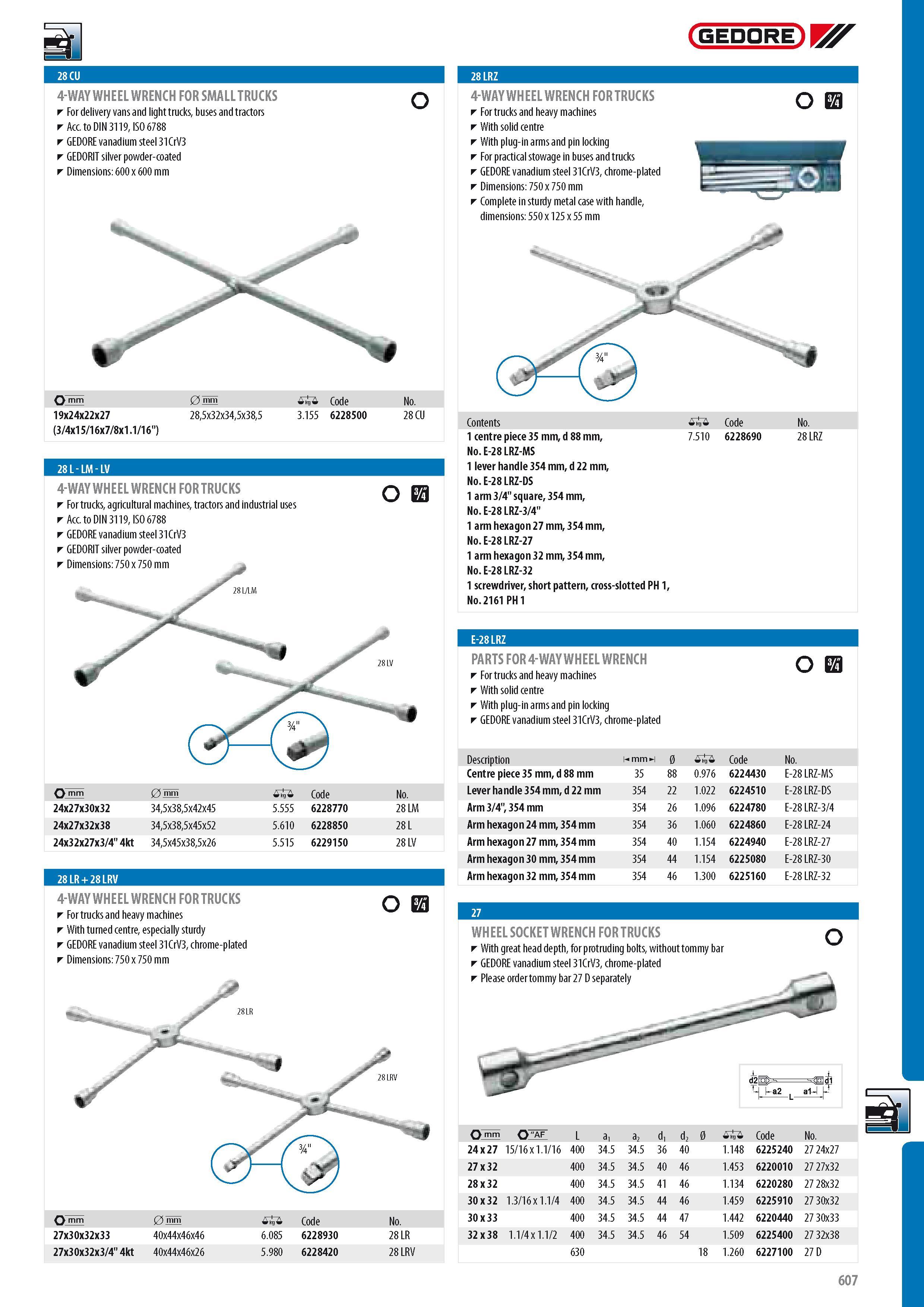

4-WAY WHEEL WRENCH FOR SMALL TRUCKS For delivery vans and light trucks buses and tractors Acc. to DIN 3119 ISO 6788 GEDORE vanadium steel 31CrV3 GEDORIT silver powder-coated Dimensions 600 x 600 mm o m 0 mm 0 Code No. 19x24x22x27 (3 4x15 16x7 8x1.1 16") 285x32x345x385 3.155 6228500 28 CU 28 L - LM - LV 4-WAY WHEEL WRENCH FOR TRUCKS For trucks agricultural machines tractors and industrial uses Acc. to DIN 3119 ISO 6788 GEDORE vanadium steel 31CrV3 GEDORIT silver powder-coated o e Q mm 0 mm 24x27x30x32 345x385x42x45 24x27x32x38 345x385x45x52 24x32x27x3 4" 4kt 345x45x385x26 28 LR + 28 LRV 4-WAY WHEEL WRENCH FOR TRUCKS For trucks and heavy machines With turned centre especially sturdy GEDORE vanadium steel 31CrV3 chrome-plated Dimensions 750 x 750 mm 0 Code 5.555 6228770 5.610 6228850 5.515 6229150 No. 28 LM 28 L 28 LV O E9 Q mm 0 mm 27x30x32x33 40x44x46x46 27x30x32x3 4" 4kt 40x44x46x26 0 Code 6.085 6228930 5.980 6228420 No. 28 LR 28 LRV 4-WAY WHEEL WRENCH FOR TRUCKS For trucks and heavy machines With solid centre With plug-in arms and pin locking For practical stowage in buses and trucks GEDORE vanadium steel 31CrV3 chrome-plated Dimensions 750 x 750 mm Complete in sturdy metal case with handle dimensions 550 x 125 x 55 mm GEDORE o e Contents 1 centre piece 35 mm d 88 mm No. E-28 LRZ-MS 1 lever handle 354 mm d 22 mm No. E-28 LRZ-DS 1 arm 3 4" square 354 mm No. E-28 LRZ-3 4" 1 arm hexagon 27 mm 354 mm No. E-28 LRZ-27 1 arm hexagon 32 mm 354 mm No. E-28 LRZ-32 1 screwdriver short pattern cross-slotted PH 1 No. 2161 PH 1 PARTS FOR 4-WAY WHEEL WRENCH For trucks and heavy machines With solid centre With plug-in arms and pin locking GEDORE vanadium steel 31CrV3 chrome-plated 0 7.510 Code 6228690 No. 28 LRZ o e Description m mm ml 0 0 Code No. Centre piece 35 mm d 88 mm 35 88 0.976 6224430 E-28 LRZ-MS Lever handle 354 mm d 22 mm 354 22 1.022 6224510 E-28 LRZ-DS Arm 3 4" 354 mm 354 26 1.096 6224780 E-28 LRZ-3 4 Arm hexagon 24 mm 354 mm 354 36 1.060 6224860 E-28 LRZ-24 Arm hexagon 27 mm 354 mm 354 40 1.154 6224940 E-28 LRZ-27 Arm hexagon 30 mm 354 mm 354 44 1.154 6225080 E-28 LRZ-30 Arm hexagon 32 mm 354 mm 354 46 1.300 6225160 E-28 LRZ-32 WHEEL SOCKET WRENCH FOR TRUCKS With great head depth for protruding bolts without tommy bar GEDORE vanadium steel 31CrV3 chrome-plated o Q"af L a1 a2 d1 d2 0 24 x 27 15 16 x 1.1 16 400 34.5 34.5 36 40 27 x 32 400 34.5 34.5 40 46 28 x 32 400 34.5 34.5 41 46 30 x 32 1.3 16 x 1.1 4 400 34.5 34.5 44 46 30 x 33 400 34.5 34.5 44 47 32 x 38 1.1 4 x 1.1 2 400 34.5 34.5 46 54 630 18 0 Code No. 1.148 6225240 27 24x27 1.453 6220010 27 27x32 1.134 6220280 27 28x32 1.459 6225910 27 30x32 1.442 6220440 27 30x33 1.509 6225400 27 32x38 1.260 6227100 27 D S. 607 28 LRZ 27
