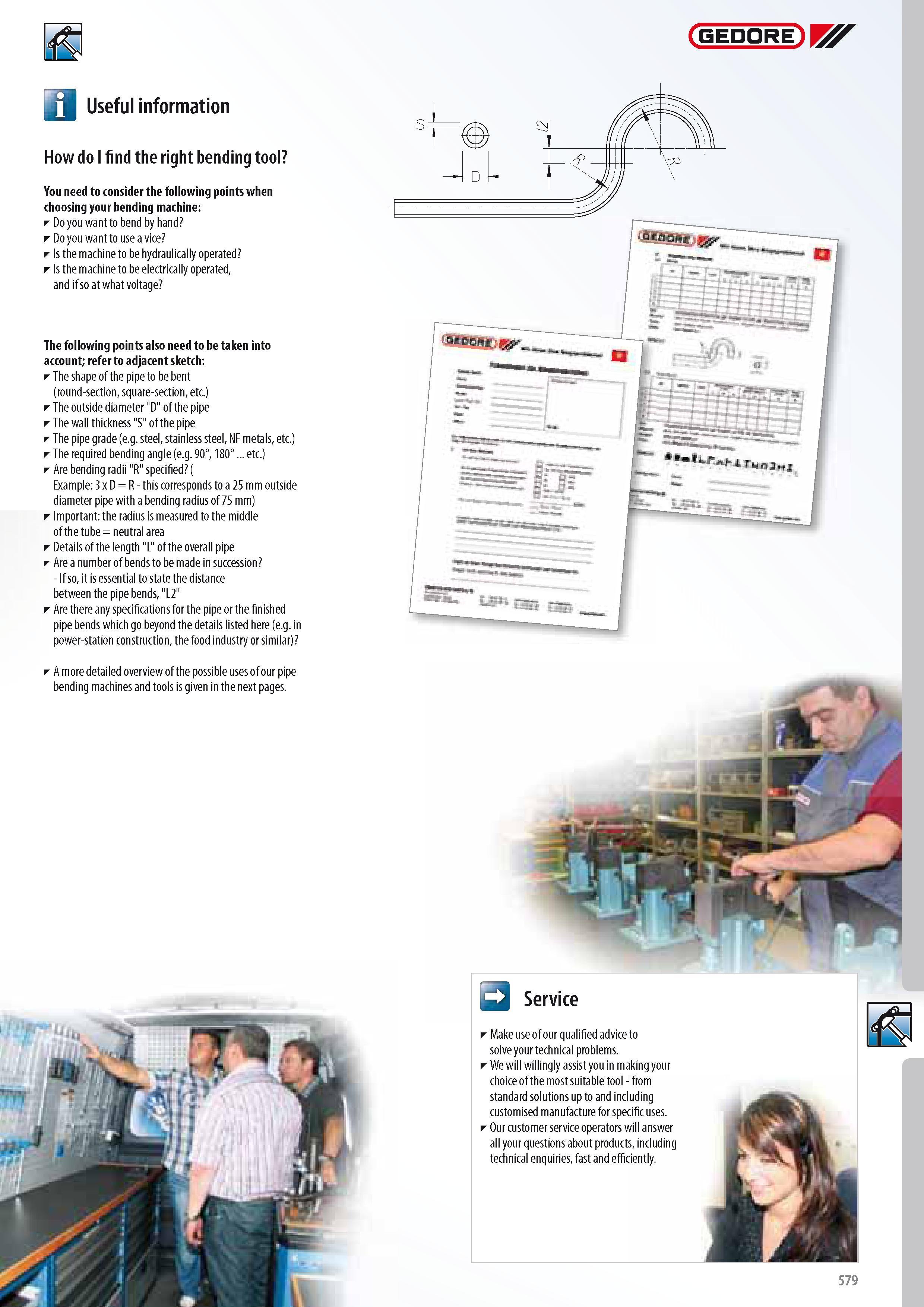

GEDORE Useful information How do I find the right bending tool You need to consider the following points when choosing your bending machine Do you want to bend by hand Do you want to use a vice Is the machine to be hydraulically operated Is the machine to be electrically operated and if so at what voltage The following points also need to be taken into account; refer to adjacent sketch The shape of the pipe to be bent (round-section square-section etc.) T he outside diameter "D" of the pipe T he wall thickness "S" of the pipe The pipe grade (e.g. steel stainless steel NF metals etc.) The required bending angle (e.g. 90 180... etc.) Are bending radii "R" specified ( Example 3 x D R - this corresponds to a 25 mm outside diameter pipe with a bending radius of 75 mm) Important the radius is measured to the middle of the tube neutral area Details of the length "L" of the overall pipe Are a number of bends to be made in succession - If so it is essential to state the distance between the pipe bends "L2" Are there any specifications for the pipe or the finished pipe bends which go beyond the details listed here (e.g. in power-station construction the food industry or similar) A more detailed overview of the possible uses of our pipe bending machines and tools is given in the next pages. 3 Service Make use of our qualified advice to solve your technical problems. We will willingly assist you in making your choice of the most suitable tool - from standard solutions up to and including customised manufacture for specific uses. Our customer service operators will answer all your questions about products including technical enquiries fast and efficiently. 579
