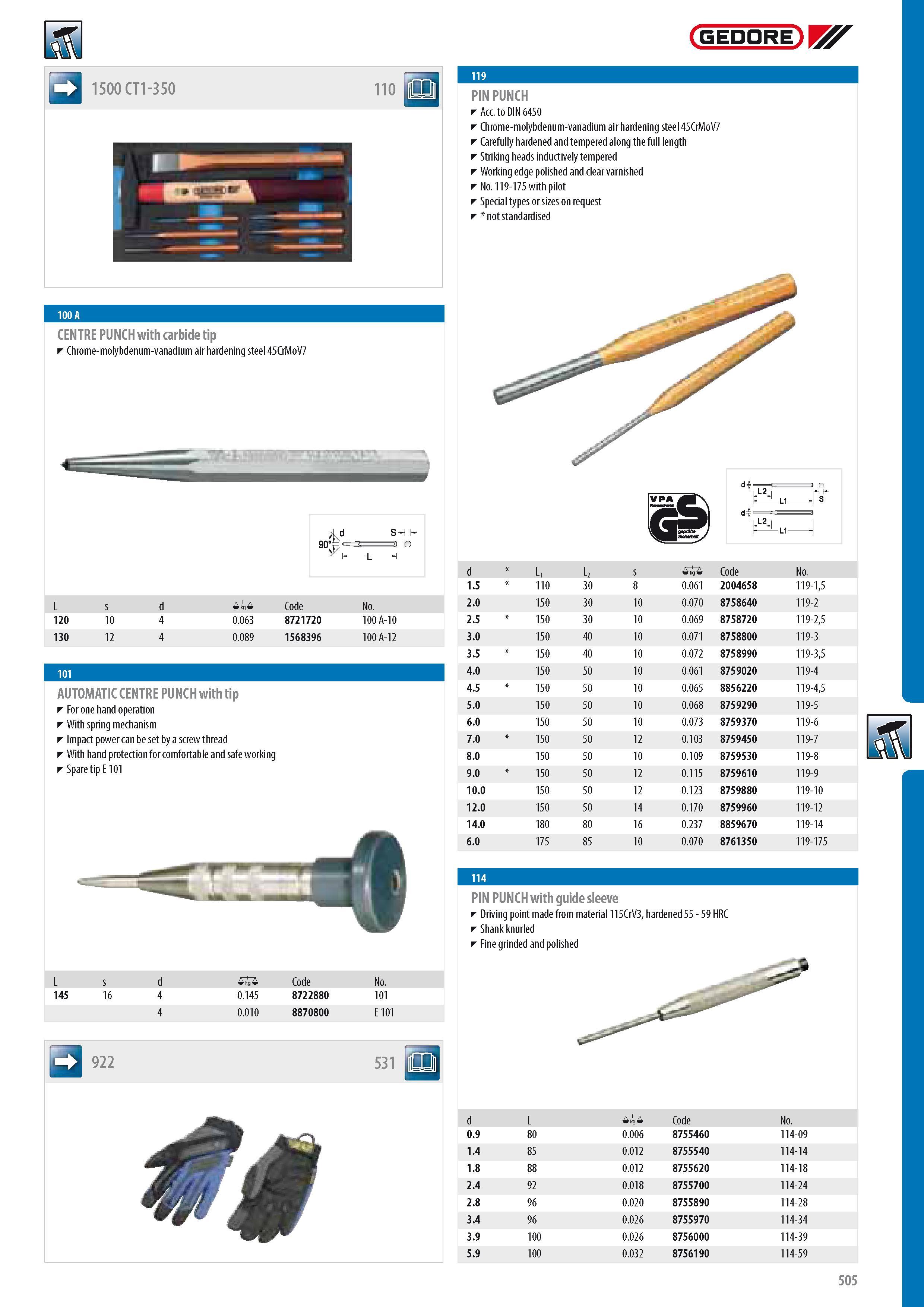

507 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.505

Каталог GEDORE 2014 Слесарный инструмент Стр. 505 0507 ENG Lab2u

1500 CT1-350 CENTRE PUNCH with carbide tip Chrome-molybdenum-vanadium air hardening steel 45CrMoV7 GEDORE PIN PUNCH Acc. to DIN 6450 Chrome-molybdenum-vanadium air hardening steel 45CrMoV7 Carefully hardened and tempered along the full length Striking heads inductively tempered Working edge polished and clear varnished No. 119-175 with pilot Special types or sizes on request not standardised L s 120 10 130 12 0 0.063 0.089 Code 8721720 1568396 No. 100 A-10 100 A-12 AUTOMATIC CENTRE PUNCH with tip For one hand operation With spring mechanism Impact power can be set by a screw thread With hand protection for comfortable and safe working Spare tip E 101 L 145 s 16 0 Code 0.145 8722880 0.010 8870800 No. 101 E 101 d L1 L2 s 0 Code No. 1.5 110 30 8 0.061 2004658 119-15 2.0 150 30 10 0.070 8758640 119-2 2.5 150 30 10 0.069 8758720 119-25 3.0 150 40 10 0.071 8758800 119-3 3.5 150 40 10 0.072 8758990 119-35 4.0 150 50 10 0.061 8759020 119-4 4.5 150 50 10 0.065 8856220 119-45 5.0 150 50 10 0.068 8759290 119-5 6.0 150 50 10 0.073 8759370 119-6 7.0 150 50 12 0.103 8759450 119-7 8.0 150 50 10 0.109 8759530 119-8 9.0 150 50 12 0.115 8759610 119-9 10.0 150 50 12 0.123 8759880 119-10 12.0 150 50 14 0.170 8759960 119-12 1 4.0 180 80 16 0.237 8859670 119-14 6.0 175 85 10 0.070 8761350 119-175 114 PIN PUNCH with guide sleeve Driving point made from material 115CrV3 hardened 55 - 59 HRC Shank knurled Fine grinded and polished d L 0 Code No. 0.9 80 0.006 8755460 114-09 1.4 85 0.012 8755540 114-14 1.8 88 0.012 8755620 114-18 2.4 92 0.018 8755700 114-24 2.8 96 0.020 8755890 114-28 3.4 96 0.026 8755970 114-34 3.9 100 0.026 8756000 114-39 5.9 100 0.032 8756190 114-59 505
