408 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.406

Каталог GEDORE 2014 Слесарный инструмент Стр. 406 0408 ENG Lab2u

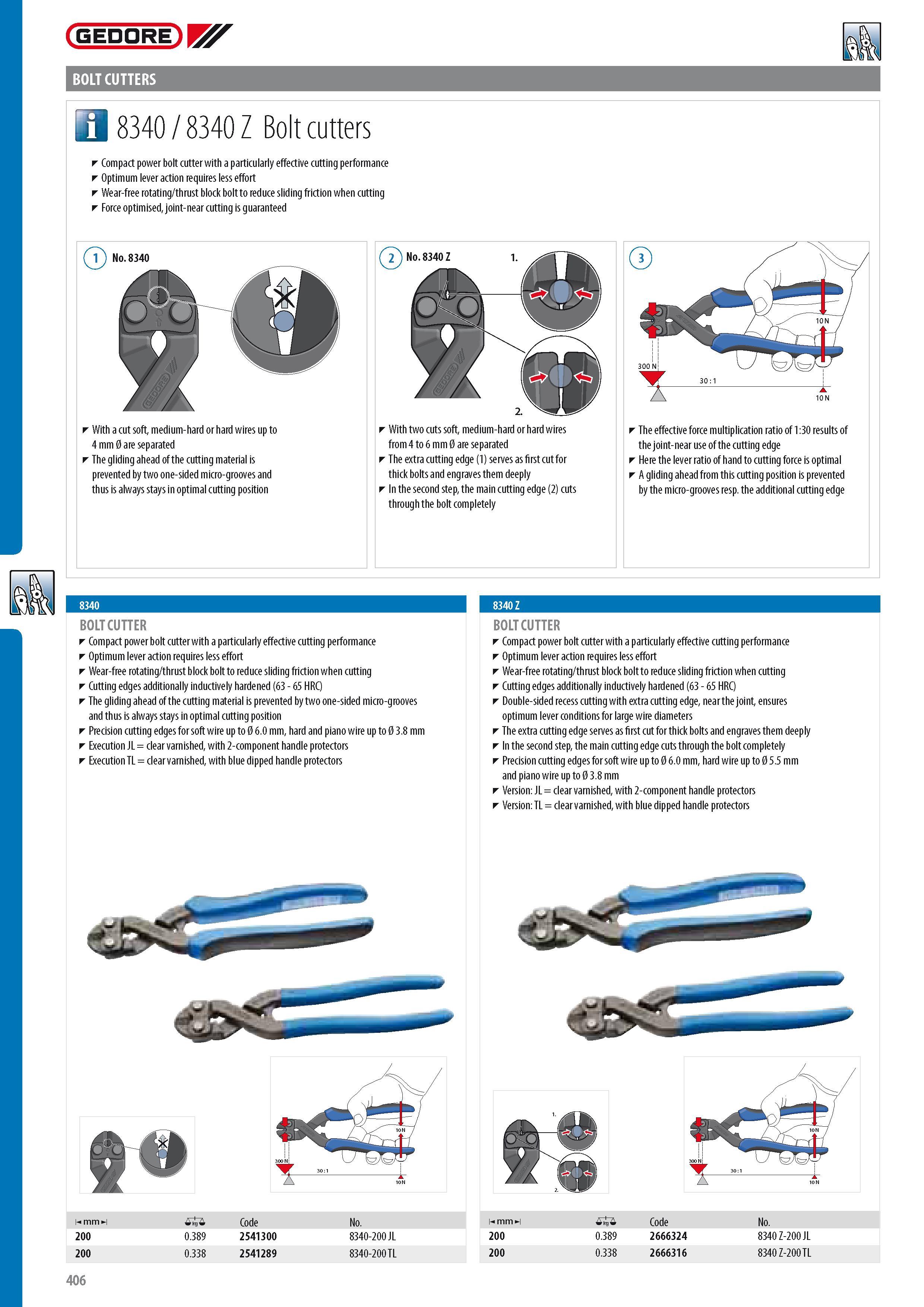

GEDORE BOLT CUTTERS 3 8340 8340 Z Bolt cutters Compact power bolt cutter with a particularly effective cutting performance Optimum lever action requires less effort Wear-free rotating thrust block bolt to reduce sliding friction when cutting Force optimised joint-near cutting is guaranteed No. 8340 With a cut soft medium-hard or hard wires up to 4 mm 0 are separated The gliding ahead of the cutting material is prevented by two one-sided micro-grooves and thus is always stays in optimal cutting position With two cuts soft medium-hard or hard wires from 4 to 6 mm 0 are separated The extra cutting edge (1) serves as first cut for thick bolts and engraves them deeply In the second step the main cutting edge (2) cuts through the bolt completely The effective force multiplication ratio of 1:30 results of the joint-near use of the cutting edge Here the lever ratio of hand to cutting force is optimal A gliding ahead from this cutting position is prevented by the micro-grooves resp. the additional cutting edge 8340 8340 Z BOLT CUTTER Compact power bolt cutter with a particularly effective cutting performance Optimum lever action requires less effort Wear-free rotating thrust block bolt to reduce sliding friction when cutting Cutting edges additionally inductively hardened (63 - 65 HRC) The gliding ahead of the cutting material is prevented by two one-sided micro-grooves and thus is always stays in optimal cutting position Precision cutting edges for soft wire up to 0 6.0 mm hard and piano wire up to 0 3.8 mm Execution JL clear varnished with 2-component handle protectors Execution TL clear varnished with blue dipped handle protectors BOLT CUTTER Compact power bolt cutter with a particularly effective cutting performance Optimum lever action requires less effort Wear-free rotating thrust block bolt to reduce sliding friction when cutting Cutting edges additionally inductively hardened (63 - 65 HRC) Double-sided recess cutting with extra cutting edge near the joint ensures optimum lever conditions for large wire diameters The extra cutting edge serves as first cut for thick bolts and engraves them deeply In the second step the main cutting edge cuts through the bolt completely Precision cutting edges for soft wire up to 0 6.0 mm hard wire up to 0 5.5 mm and piano wire up to 0 3.8 mm Version JL clear varnished with 2-component handle protectors Version TL clear varnished with blue dipped handle protectors Hmm 200 200 0 0.389 0.338 Code 2541300 2541289 No. 8340-200 JL 8340-200 TL m 200 200 0 0.389 0.338 Code 2666324 2666316 No. 8340 Z-200JL 8340Z-200TL 406
