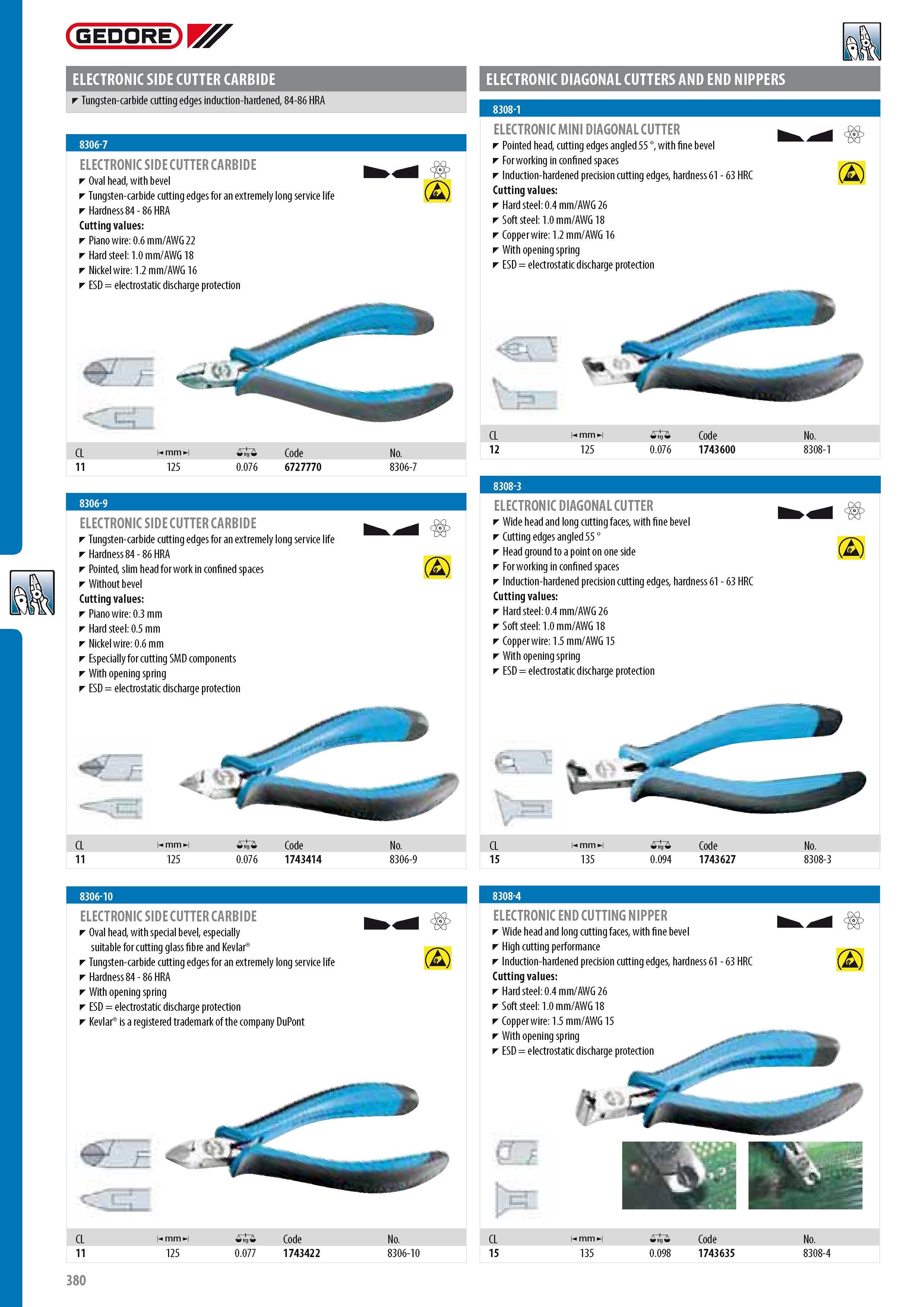

382 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.380

Каталог GEDORE 2014 Слесарный инструмент Стр. 380 0382 ENG Lab2u

GEDORE ELECTRONIC SIDE CUTTER CARBIDE Tungsten-carbide cutting edges induction-hardened 84-86 HRA ELECTRONIC SIDE CUTTER CARBIDE Oval head with bevel Tungsten-carbide cutting edges for an extremely long service life Hardness 84 - 86 HRA Cutting values Piano wire 0.6 mm AWG 22 Hard steel 1.0 mm AWG 18 Nickel wire 1.2 mm AWG 16 ESD electrostatic discharge protection (2) ELECTRONIC DIAGONAL CUTTERS AND END NIPPERS ELECTRONIC MINI DIAGONAL CUTTER Pointed head cutting edges angled 55 with fine bevel For working in confined spaces Induction-hardened precision cutting edges hardness 61 - 63 HRC Cutting values Hard steel 0.4 mm AWG 26 Soft steel 1.0 mm AWG 18 Copper wire 1.2 mm AWG 16 With opening spring ESD electrostatic discharge protection (2) CL m mm ml 0 Code No. 11 125 0.076 6727770 8306-7 8306-9 ELECTRONIC SIDE CUTTER CARBIDE Tungsten-carbide cutting edges for an extremely long service life Hardness 84 - 86 HRA Pointed slim head for work in confined spaces Without bevel Cutting values Piano wire 0.3 mm Hard steel 0.5 mm Nickel wire 0.6 mm Especially for cutting SMD components With opening spring ESD electrostatic discharge protection (2) CL 11 - mm 125 0 0.076 Code 1743414 No. 8306-9 mm - 125 Code 1743600 No. ELECTRONIC DIAGONAL CUTTER Wide head and long cutting faces with fine bevel Cutting edges angled 55 Head ground to a point on one side For working in confined spaces Induction-hardened precision cutting edges hardness 61 - 63 HRC Cutting values Hard steel 0.4 mm AWG 26 Soft steel 1.0 mm AWG 18 Copper wire 1.5 mm AWG 15 With opening spring ESD electrostatic discharge protection (2) CL 15 mm W 0 135 0.094 Code 1743627 No. 8308-3 8306-10 ELECTRONIC SIDE CUTTER CARBIDE Oval head with special bevel especially suitable for cutting glass fibre and Kevlar Tungsten-carbide cutting edges for an extremely long service life Hardness 84 - 86 HRA (2) With opening spring ESD electrostatic discharge protection Kevlar is a registered trademark of the company DuPont CL m mm 11 125 0 0.077 Code 1743422 No. 8306-10 ELECTRONIC END CUTTING NIPPER Wide head and long cutting faces with fine bevel High cutting performance Induction-hardened precision cutting edges hardness 61 - 63 HRC Cutting values Hard steel 0.4 mm AWG 26 Soft steel 1.0 mm AWG 18 Copper wire 1.5 mm AWG 15 With opening spring ESD electrostatic discharge protection (2) CL 15 mmH 135 0 0.098 Code 1743635 No. 8308-4 8308-1 8306-7 8308-3 8308-4 380
