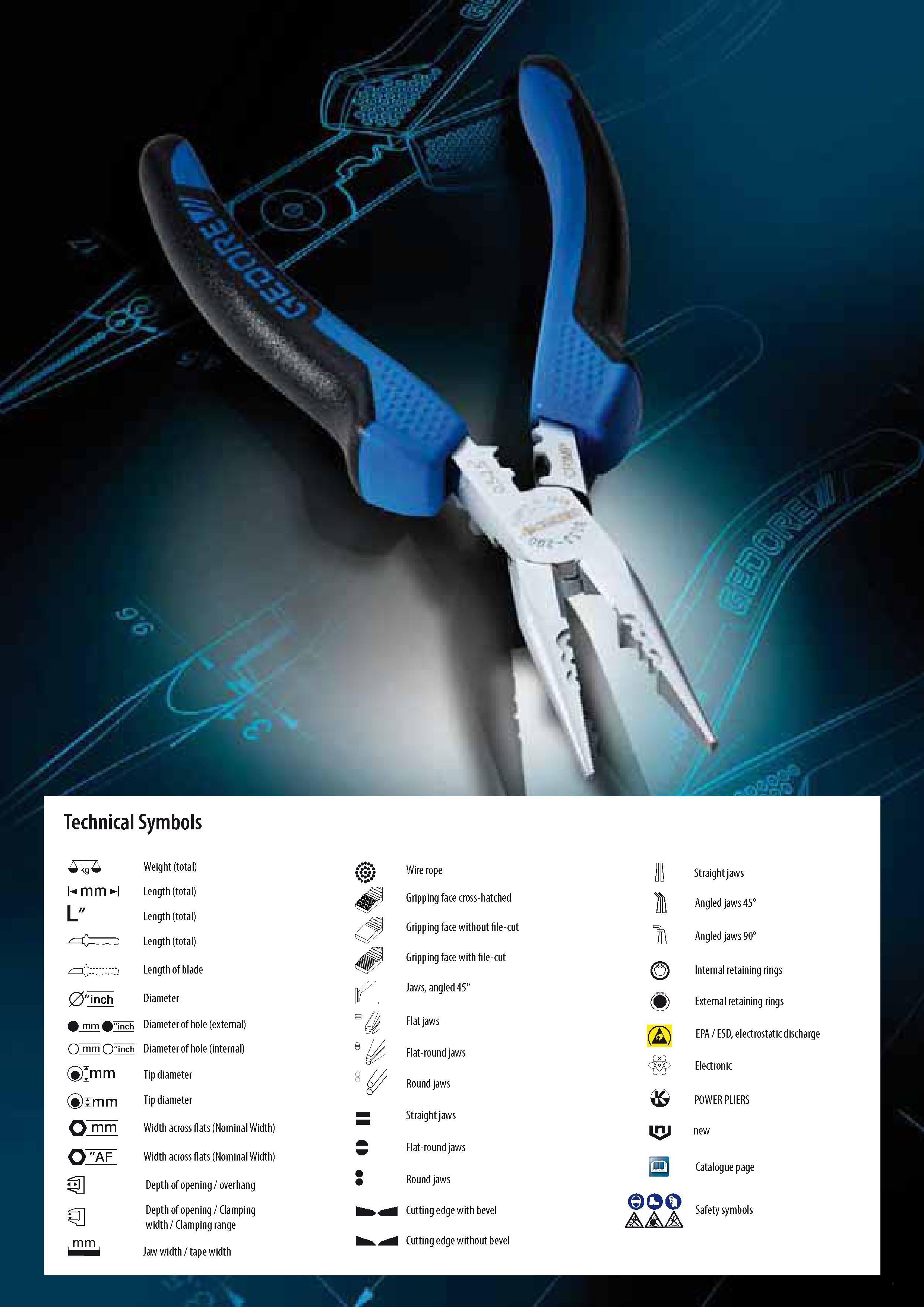

Technical Symbols Weight (total) Length (total) Length (total) Length (total) Straight jaws Gripping face cross-hatched Angled jaws 45 Gripping face without file-cut Angled jaws 90 Gripping face with file-cut Length of blade Internal retaining rings Jaws angled 45' Diameter External retaining rings Diameter of hole (external) EPA ESD electrostatic discharge Diameter of hole (internal) Flat-round jaws Electronic Tip diameter Round jaws Tip diameter POWER PLIERS Straight jaws Width across flats (Nominal Width) Flat-round jaws Width across flats (Nominal Width) Catalogue page Round jaws Depth of opening overhang Depth of opening Clamping width Clamping range Safety symbols Cutting edge with bevel Cutting edge without bevel Jaw width tape width
