342 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.340

Каталог GEDORE 2014 Слесарный инструмент Стр. 340 0342 ENG Lab2u

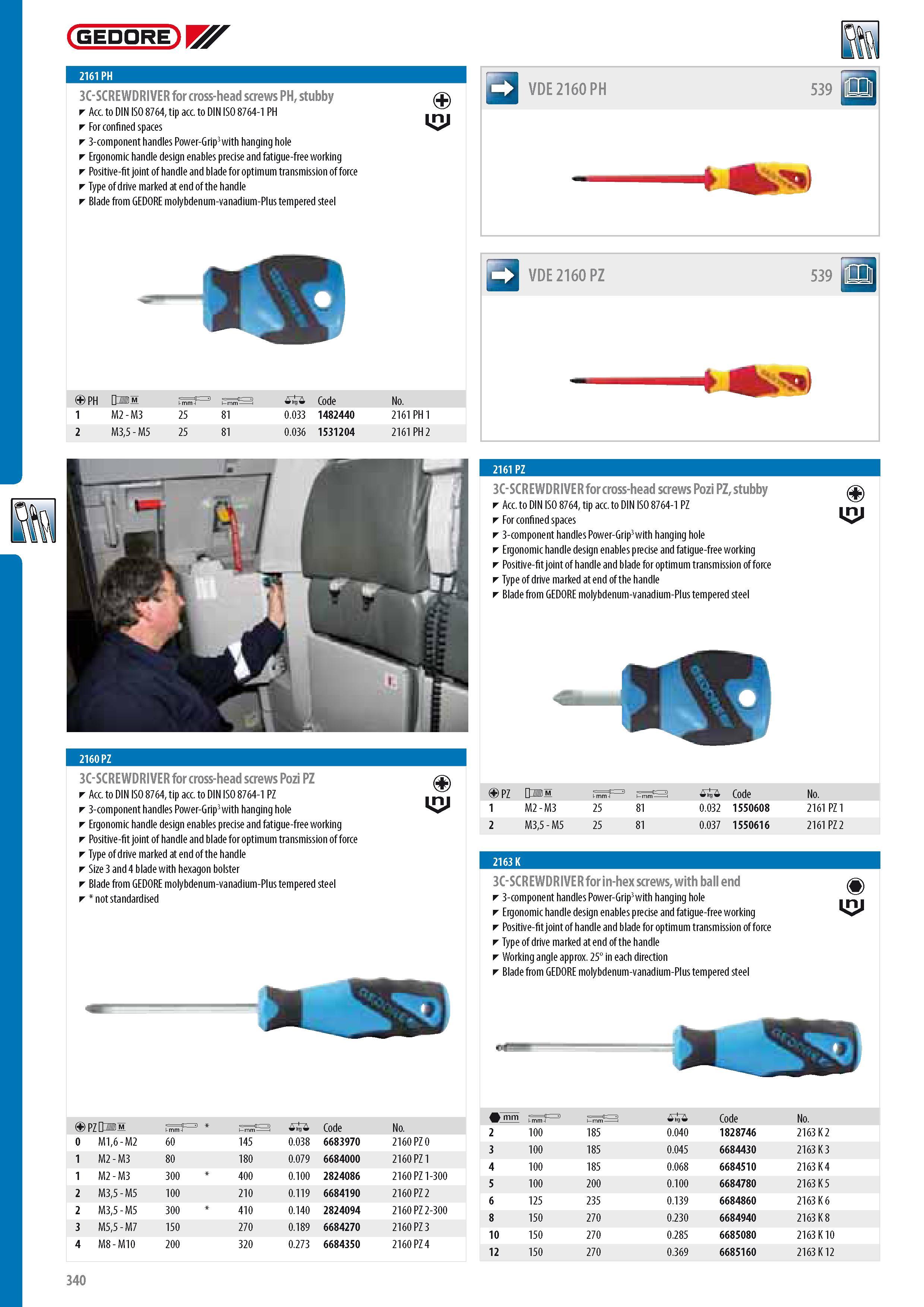

GEDORE 3C-SCREWDRIVER for cross-head screws PH stubby Acc. to DIN ISO 8764 tip acc. to DIN ISO 8764-1 PH For confined spaces 3-component handles Power-Grip3 with hanging hole Ergonomic handle design enables precise and fatigue-free working Positive-fit joint of handle and blade for optimum transmission of force Type of drive marked at end of the handle Blade from GEDORE molybdenum-vanadium-Plus tempered steel G M2 - M3 M35 - M5 25 25 81 81 0 Code 0.033 1482440 0.036 1531204 No. 2161 PH 1 2161 PH 2 3C-SCREWDRIVER for cross-head screws Pozi PZ Acc. to DIN ISO 8764 tip acc. to DIN ISO 8764-1 PZ 3-component handles Power-Grip3 with hanging hole Ergonomic handle design enables precise and fatigue-free working Positive-fit joint of handle and blade for optimum transmission of force Type of drive marked at end of the handle Size 3 and 4 blade with hexagon bolster Blade from GEDORE molybdenum-vanadium-Plus tempered steel not standardised G VDE2160 PH 3 VDE 2160 PZ 539 n 3C-SCREWDRIVER for cross-head screws Pozi PZ stubby Acc. to DIN ISO 8764 tip acc. to DIN ISO 8764-1 PZ For confined spaces 3-component handles Power-Grip3 with hanging hole Ergonomic handle design enables precise and fatigue-free working Positive-fit joint of handle and blade for optimum transmission of force Type of drive marked at end of the handle Blade from GEDORE molybdenum-vanadium-Plus tempered steel G PZ 1 M2 - M3 2 M35 - M5 25 25 81 81 0 Code 0.032 1 55 0 6 08 0.037 1550616 No. 2161 PZ 1 2161 PZ 2 3C-SCREWDRIVER for in-hex screws with ball end 3-component handles Power-Grip3 with hanging hole Ergonomic handle design enables precise and fatigue-free working Positive-fit joint of handle and blade for optimum transmission of force Type of drive marked at end of the handle Working angle approx. 25 in each direction Blade from GEDORE molybdenum-vanadium-Plus tempered steel 5 G 2161 PH 2161 PZ 2163 K PZ 0 Code No. M16 - M2 60 145 0.038 6683970 2160 PZ 0 M2 - M3 80 180 0.079 6684000 2160 PZ 1 M2 - M3 300 400 0.100 2824086 2160 PZ 1-300 M35 - M5 100 210 0.119 6684190 2160 PZ 2 M35 - M5 300 410 0.140 2824094 2160 PZ 2-300 M55 - M7 150 270 0.189 6684270 2160 PZ 3 M8 - M10 200 320 0.273 6684350 2160 PZ 4 2 3 4 5 6 8 10 12 100 100 100 100 125 150 150 150 185 185 185 200 235 270 270 270 0 0.040 0.045 0.068 0.100 0.139 0.230 0.285 0.369 Code 1828746 6684430 6684510 6684780 6684860 6684940 6685080 6685160 No. 2163 K2 2163 K3 2163 K4 2163 K5 2163 K 6 2163 K 8 2163 K10 2163K12 340
