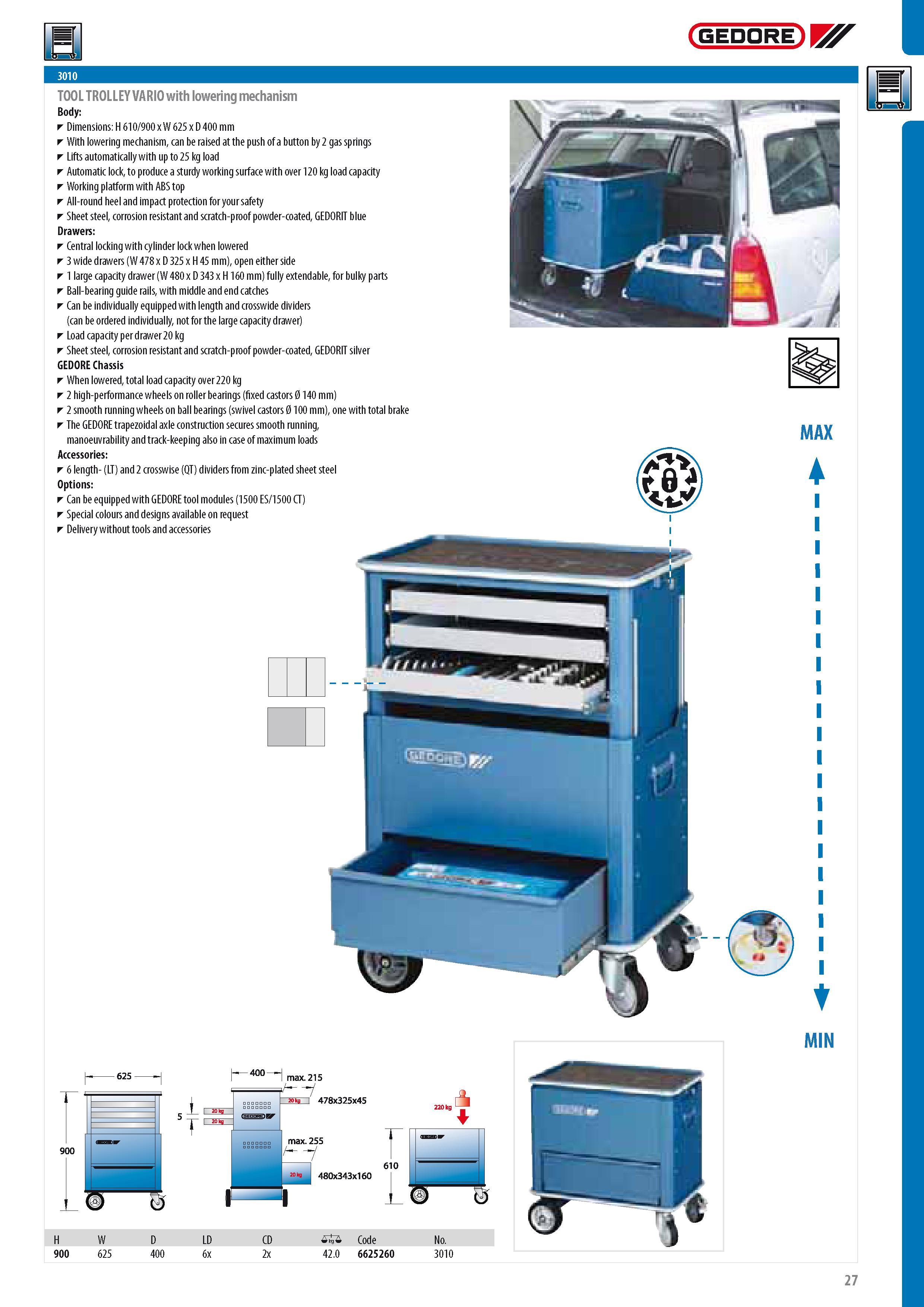

TOOL TROLLEY VARIO with lowering mechanism Body Dimensions H 610 900 x W 625 x D 400 mm With lowering mechanism can be raised at the push of a button by 2 gas springs Lifts automatically with up to 25 kg load Automatic lock to produce a sturdy working surface with over 120 kg load capacity Working platform with ABS top All-round heel and impact protection for your safety Sheet steel corrosion resistant and scratch-proof powder-coated GEDORIT blue Drawers Central locking with cylinder lock when lowered 3 wide drawers (W 478 x D 325 x H 45 mm) open either side 1 large capacity drawer (W 480 x D 343 x H 160 mm) fully extendable for bulky parts Ball-bearing guide rails with middle and end catches Can be individually equipped with length and crosswide dividers (can be ordered individually not for the large capacity drawer) Load capacity per drawer 20 kg Sheet steel corrosion resistant and scratch-proof powder-coated GEDORIT silver GEDORE Chassis When lowered total load capacity over 220 kg 2 high-performance wheels on roller bearings (fixed castors 0 140 mm) 2 smooth running wheels on ball bearings (swivel castors 0 100 mm) one with total brake The GEDORE trapezoidal axle construction secures smooth running manoeuvrability and track-keeping also in case of maximum loads Accessories 6 length- (LT) and 2 crosswise (QT) dividers from zinc-plated sheet steel Options Can be equipped with GEDORE tool modules (1500 ES 1500 CT) Special colours and designs available on request Delivery without tools and accessories MAX H 900 W 625 D 400 MIN LD 6x CD 0 Code No. 2x 42.0 6625260 3010 3010 27
