250 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.248

Каталог GEDORE 2014 Слесарный инструмент Стр. 248 0250 ENG Lab2u

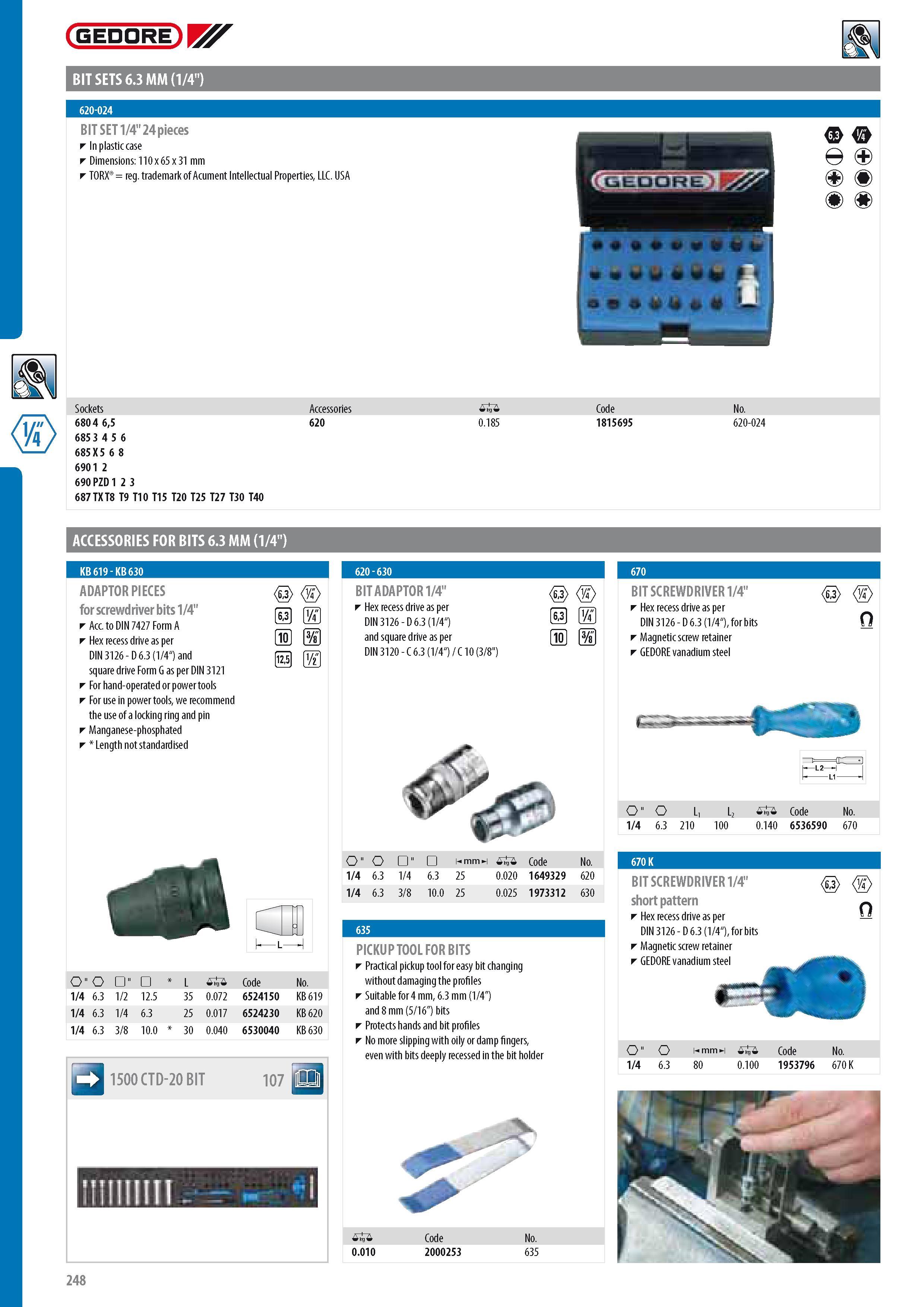

GEDORE BIT SETS 6.3 MM (1 4") BIT SET 1 4" 24 pieces In plastic case Dimensions 110 x 65 x 31 mm TORX reg. trademark of Acument Intellectual Properties LLC. USA e 5 7 Sockets 680 4 65 685 3 4 5 6 685 X 5 6 8 690 1 2 690 PZD 1 2 3 687 TX T8 T9 T10 T15 T20 T25 T27 T30 T40 Accessories 620 0 0.185 Code 1815695 No. 620-024 ACCESSORIES FOR BITS 6.3 MM (1 4") KB 619 - KB 630 ADAPTOR PIECES for screwdriver bits 1 4" Acc. to DIN 7427 Form A Hex recess drive as per DIN 3126 - D 6.3 (1 4") and square drive Form G as per DIN 3121 For hand-operated or power tools For use in power tools we recommend the use of a locking ring and pin Manganese-phosphated Length not standardised E Y BIT ADAPTOR 1 4" E Y BIT SCREWDRIVER 1 4" E Y M R Hex recess drive as per DIN 3126 - D 6.3 (1 4") M R Hex recess drive as per DIN 3126 - D 6.3 (1 4") for bits 0 N S and square drive as per N S Magnetic screw retainer O T DIN 3120 - C 6.3 (1 4") C 10 (3 8") GEDORE vanadium steel " O " L 0 1 4 6.3 1 2 12.5 35 0.072 1 4 6.3 1 4 6.3 25 0.017 1 4 6.3 3 8 10.0 30 0.040 Code No. 6524150 KB 619 6524230 KB 620 6530040 KB 630 J 1500 CTD-20 BIT CSSfraass O " O L1 L2 0 Code No. 1 4 6.3 210 100 0.140 6536590 670 O " O " hmmH 0 Code No. 1 4 6.3 1 4 6.3 25 0.020 1 649329 620 1 4 6.3 3 8 10.0 25 0.025 1 973312 630 PICKUP TOOL FOR BITS Practical pickup tool for easy bit changing without damaging the profiles Suitable for 4 mm 6.3 mm (1 4) and 8 mm (5 16) bits Protects hands and bit profiles No more slipping with oily or damp fingers even with bits deeply recessed in the bit holder BIT SCREWDRIVER 1 4" short pattern Hex recess drive as per DIN 3126 - D 6.3 (1 4") for bits Magnetic screw retainer GEDORE vanadium steel 248 0 0.010 620-024 670 K 635
