223 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.221

Каталог GEDORE 2014 Слесарный инструмент Стр. 221 0223 ENG Lab2u

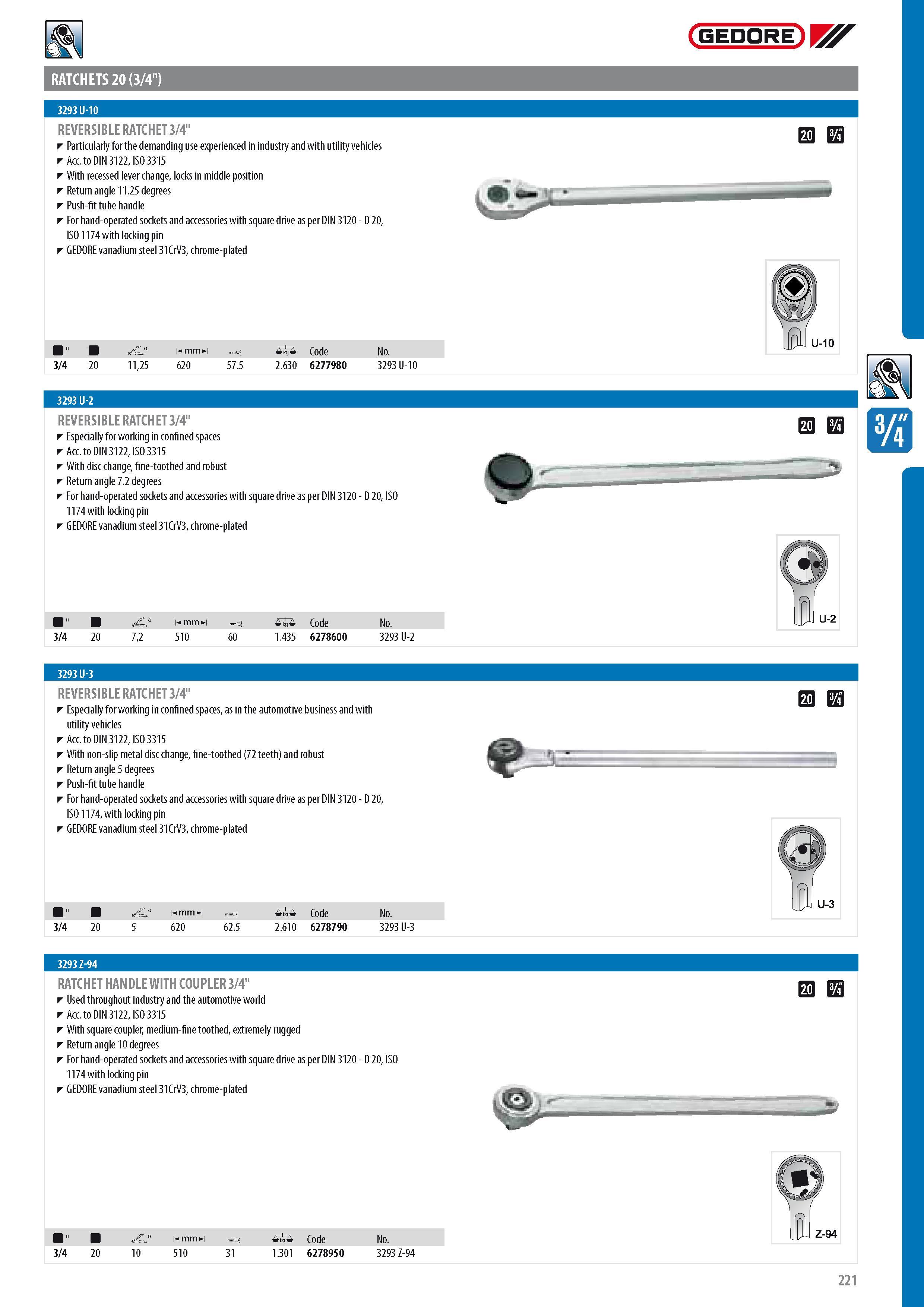

GEDORE RATCHETS 20 (3 4") REVERSIBLE RATCHET 3 4" Particularly for the demanding use experienced in industry and with utility vehicles Acc. to DIN 3122 ISO 3315 With recessed lever change locks in middle position Return angle 11.25 degrees Push-fit tube handle For hand-operated sockets and accessories with square drive as per DIN 3120 - D 20 ISO 1174 with locking pin GEDORE vanadium steel 31CrV3 chrome-plated p e " 3 4 20 A 1125 m 620 57.5 0 2.630 Code 6277980 No. 3293 U-10 U-10 REVERSIBLE RATCHET 3 4" Especially for working in confined spaces Acc. to DIN 3122 ISO 3315 With disc change fine-toothed and robust Return angle 7.2 degrees For hand-operated sockets and accessories with square drive as per DIN 3120 - D 20 ISO 1174 with locking pin GEDORE vanadium steel 31CrV3 chrome-plated E3 ca SI e 3293 U-10 3293 U-2 " 3 4 20 A 72 510 0 1.435 Code 6278600 No. 3293 U-2 U-2 REVERSIBLE RATCHET 3 4" Especially for working in confined spaces as in the automotive business and with utility vehicles Acc. to DIN 3122 ISO 3315 With non-slip metal disc change fine-toothed (72 teeth) and robust Return angle 5 degrees Push-fit tube handle For hand-operated sockets and accessories with square drive as per DIN 3120 - D 20 ISO 1174 with locking pin GEDORE vanadium steel 31CrV3 chrome-plated p e " 3 4 20 A 5 m 620 62.5 0 Code No. 2.610 6278790 3293 U-3 U-3 RATCHET HANDLE WITH COUPLER 3 4" Used throughout industry and the automotive world Acc. to DIN 3122 ISO 3315 With square coupler medium-fine toothed extremely rugged Return angle 10 degrees For hand-operated sockets and accessories with square drive as per DIN 3120 - D 20 ISO 1174 with locking pin GEDORE vanadium steel 31CrV3 chrome-plated p e " 3 4 20 A 10 510 0 Code No. 1.301 62 7 895 0 3293 Z-94 221 60 3293 U-3 31
