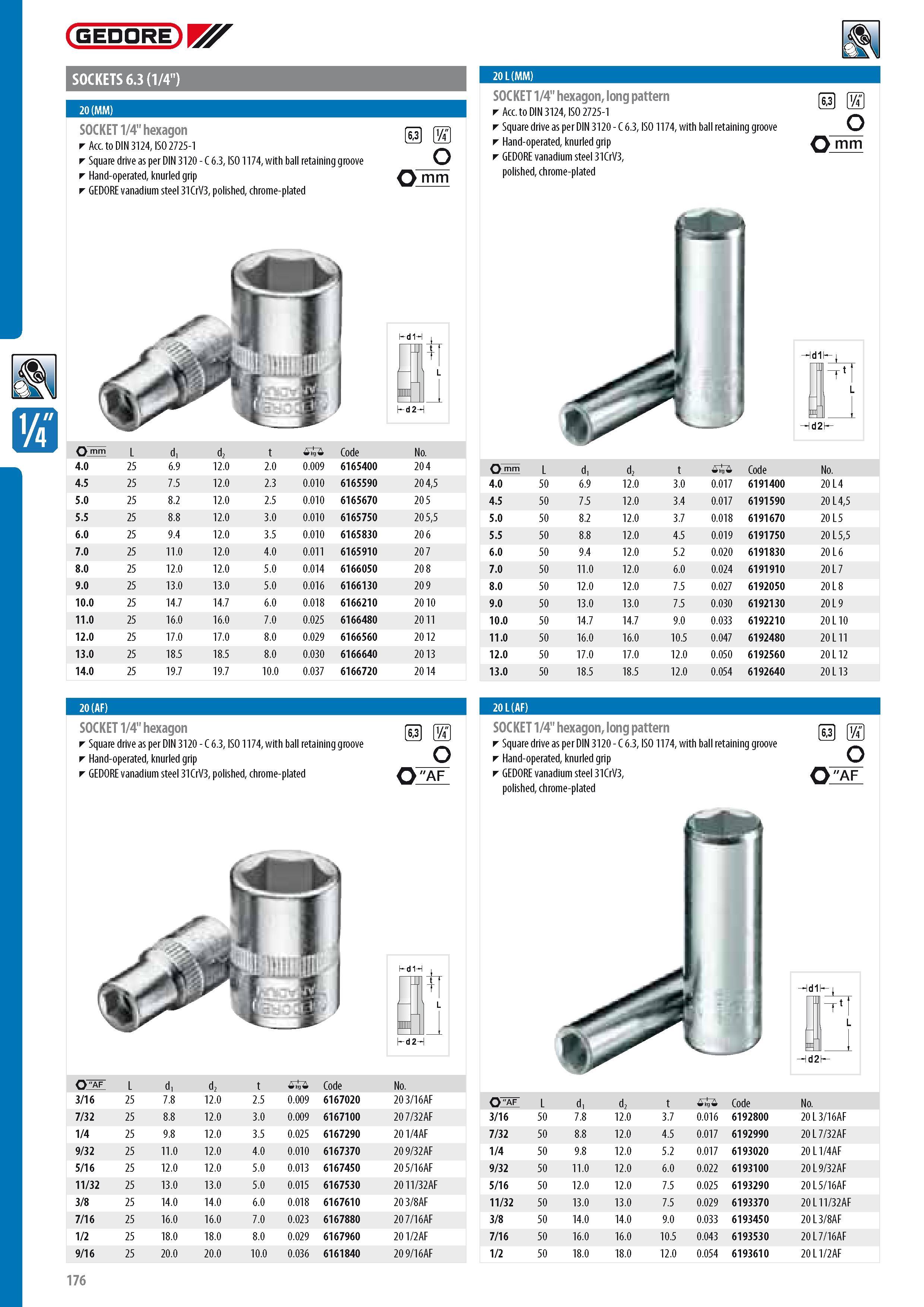

GEDORE SOCKETS 6.3 (1 4") 20 (MM) SOCKET 1 4" hexagon Acc. to DIN 3124 ISO 2725-1 Square drive as per DIN 3120 - C 6.3 ISO 1174 with ball retaining groove Hand-operated knurled grip GEDORE vanadium steel 31CrV3 polished chrome-plated eg M R o Q mm T M L hd2H mm L d1 d2 0 Code No. 4.0 25 6.9 12.0 2.0 0.009 6165400 20 4 4.5 25 7.5 12.0 2.3 0.010 6165590 20 45 5.0 25 8.2 12.0 2.5 0.010 6165670 20 5 5.5 25 8.8 12.0 3.0 0.010 6165750 20 55 6.0 25 9.4 12.0 3.5 0.010 6165830 20 6 7.0 25 11.0 12.0 4.0 0.011 6165910 20 7 8.0 25 12.0 12.0 5.0 0.014 6166050 20 8 9.0 25 13.0 13.0 5.0 0.016 6166130 20 9 10.0 25 14.7 14.7 6.0 0.018 6166210 20 10 11.0 25 16.0 16.0 7.0 0.025 6166480 20 11 12.0 25 17.0 17.0 8.0 0.029 6166560 20 12 13.0 25 18.5 18.5 8.0 0.030 6166640 20 13 14.0 25 19.7 19.7 10.0 0.037 6166720 20 14 20 L (MM) SOCKET 1 4" hexagon long pattern Acc. to DIN 3124 ISO 2725-1 Square drive as per DIN 3120 - C 6.3 ISO 1174 with ball retaining groove Hand-operated knurled grip GEDORE vanadium steel 31CrV3 polished chrome-plated M R o Q mm Hd1h i Hd2h- m L d1 d2 0 Code No. 4.0 50 6.9 12.0 3.0 0.017 6191400 20 L 4 4.5 50 7.5 12.0 3.4 0.017 6191590 20 L 45 5.0 50 8.2 12.0 3.7 0.018 6191670 20 L 5 5.5 50 8.8 12.0 4.5 0.019 6191750 20 L 55 6.0 50 9.4 12.0 5.2 0.020 6191830 20 L 6 7.0 50 11.0 12.0 6.0 0.024 6191910 20 L 7 8.0 50 12.0 12.0 7.5 0.027 6192050 20 L 8 9.0 50 13.0 13.0 7.5 0.030 6192130 20 L 9 10.0 50 14.7 14.7 9.0 0.033 6192210 20 L 10 11.0 50 16.0 16.0 10.5 0.047 6192480 20 L 11 12.0 50 17.0 17.0 12.0 0.050 6192560 20 L 12 13.0 50 18.5 18.5 12.0 0.054 6192640 20 L 13 SOCKET 1 4" hexagon Square drive as per DIN 3120 - C 6.3 ISO 1174 with ball retaining groove Hand-operated knurled grip GEDORE vanadium steel 31CrV3 polished chrome-plated M R o Q"af 0 ' 1 L kd 2H Q"af L d1 d2 0 Code No. 3 16 25 7.8 12.0 2.5 0.009 6167020 20 3 16AF 7 32 25 8.8 12.0 3.0 0.009 6167100 207 32AF 1 4 25 9.8 12.0 3.5 0.025 6167290 201 4AF 9 32 25 11.0 12.0 4.0 0.010 6167370 20 9 32AF 5 16 25 12.0 12.0 5.0 0.013 6167450 205 16AF 11 32 25 13.0 13.0 5.0 0.015 6167530 20 11 32AF 3 8 25 14.0 14.0 6.0 0.018 6167610 203 8AF 7 16 25 16.0 16.0 7.0 0.023 6167880 20 7 16AF 1 2 25 18.0 18.0 8.0 0.029 6167960 201 2AF 9 16 25 20.0 20.0 10.0 0.036 6161840 20 9 16AF SOCKET 1 4" hexagon long pattern Square drive as per DIN 3120 - C 6.3 ISO 1174 with ball retaining groove Hand-operated knurled grip GEDORE vanadium steel 31CrV3 polished chrome-plated M R o Q"af Hd2 Q"af L d1 d2 0 Code No. 3 16 50 7.8 12.0 3.7 0.016 6192800 20 L 3 16AF 7 32 50 8.8 12.0 4.5 0.017 6192990 20 L 7 32AF 1 4 50 9.8 12.0 5.2 0.017 6193020 20 L1 4AF 9 32 50 11.0 12.0 6.0 0.022 6193100 20 L 9 32AF 5 16 50 12.0 12.0 7.5 0.025 6193290 20L5 16AF 11 32 50 13.0 13.0 7.5 0.029 6193370 20L 11 32AF 3 8 50 14.0 14.0 9.0 0.033 6193450 20L3 8AF 7 16 50 16.0 16.0 10.5 0.043 6193530 20L7 16AF 1 2 50 18.0 18.0 12.0 0.054 6193610 20L1 2AF 176
