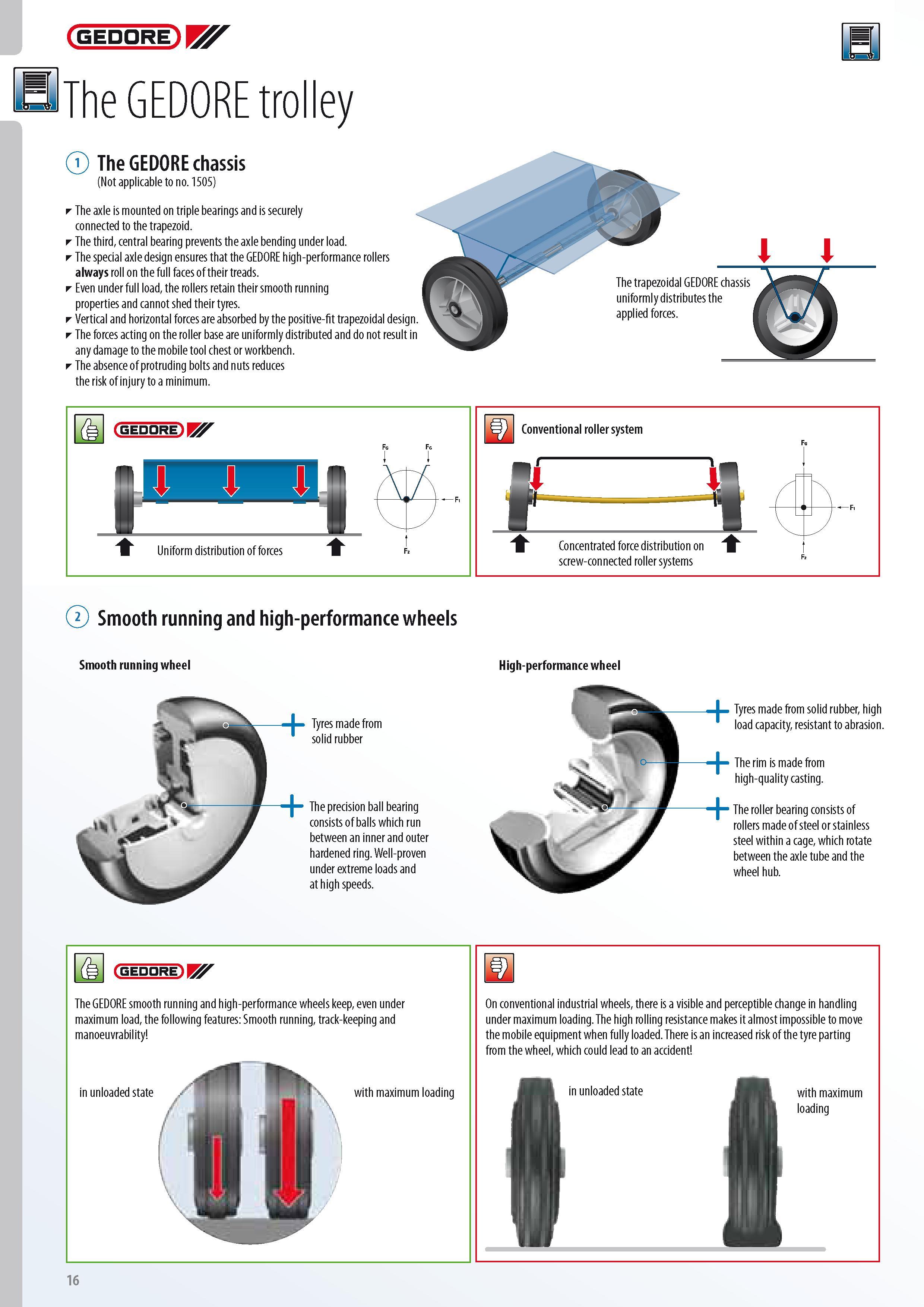

The axle is mounted on triple bearings and is securely connected to the trapezoid. The third central bearing prevents the axle bending under load. The special axle design ensures that the GEDORE high-performance rollers always roll on the full faces of their treads. Even under full load the rollers retain their smooth running properties and cannot shed their tyres. Vertical and horizontal forces are absorbed by the positive-fit trapezoidal design. The forces acting on the roller base are uniformly distributed and do not result in any damage to the mobile tool chest or workbench. The absence of protruding bolts and nuts reduces the risk of injury to a minimum. The trapezoidal GEDORE chassis uniformly distributes the applied forces. CGEDORE)IBPr Fg Fg Jj Uniform distribution of forces Conventional roller system f Jt Concentrated force distribution on screw-connected roller systems Smooth running and high-performance wheels Smooth running wheel High-performance wheel Tyres made from solid rubber The precision ball bearing consists of balls which run between an inner and outer hardened ring. Well-proven under extreme loads and at high speeds. 1 Tyres made from solid rubber high load capacity resistant to abrasion. The rim is made from high-quality casting. The roller bearing consists of rollers made of steel or stainless steel within a cage which rotate between the axle tube and the wheel hub. CGEDDRE)IKPr The GEDORE smooth running and high-performance wheels keep even under maximum load the following features Smooth running track-keeping and manoeuvrability in unloaded state with maximum loading On conventional industrial wheels there is a visible and perceptible change in handling under maximum loading. The high rolling resistance makes it almost impossible to move the mobile equipment when fully loaded. There is an increased risk of the tyre parting from the wheel which could lead to an accident in unloaded state with maximum loading GEDORE U4 .0. he GEDORE trolley The GEDORE chassis (Not applicable to no. 1505)
