996 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.970

Каталог FACOM 2013 Инструмент Оборудование Стр. 970 0996 ENG Lab2u

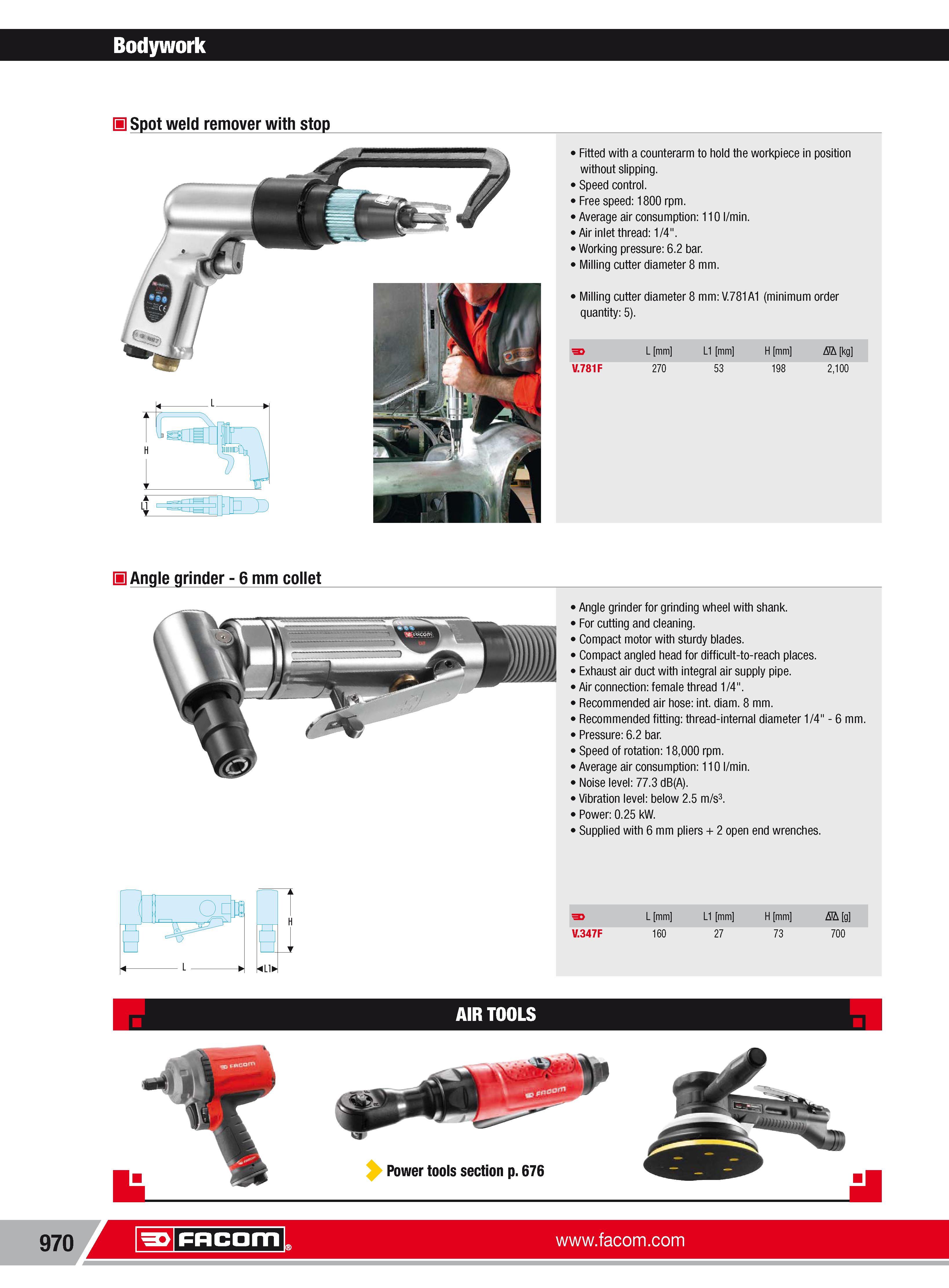

Angle grinder for grinding wheel with shank. For cutting and cleaning. Compact motor with sturdy blades. Compact angled head for difficult-to-reach places. Exhaust air duct with integral air supply pipe. Air connection female thread 1/4". Recommended air hose int. diam. 8 mm. Recommended fitting thread-internal diameter 1/4" 6 mm. Pressure 6.2 bar. Speed of rotation 18000 rpm. Average air consumption 110 l min. Noise level 77.3 dB(A). Vibration level below 2.5 m s3. Power 0.25 kW. Supplied with 6 mm pliers + 2 open end wrenches. L mm L1 mm H mm Nh g V.347F 160 27 73 700 970 Facom Bodywork Fitted with a counterarm to hold the workpiece in position without slipping. Speed control. Free speed 1800 rpm. Average air consumption 110 l min. Air inlet thread 1/4". Working pressure 6.2 bar. Milling cutter diameter 8 mm. Milling cutter diameter 8 mm V.781A1 (minimum order quantity 5). L mm L1 mm H mm Nh kg V.781F 270 53 198 2100 H Angle grinder 6 mm collet
