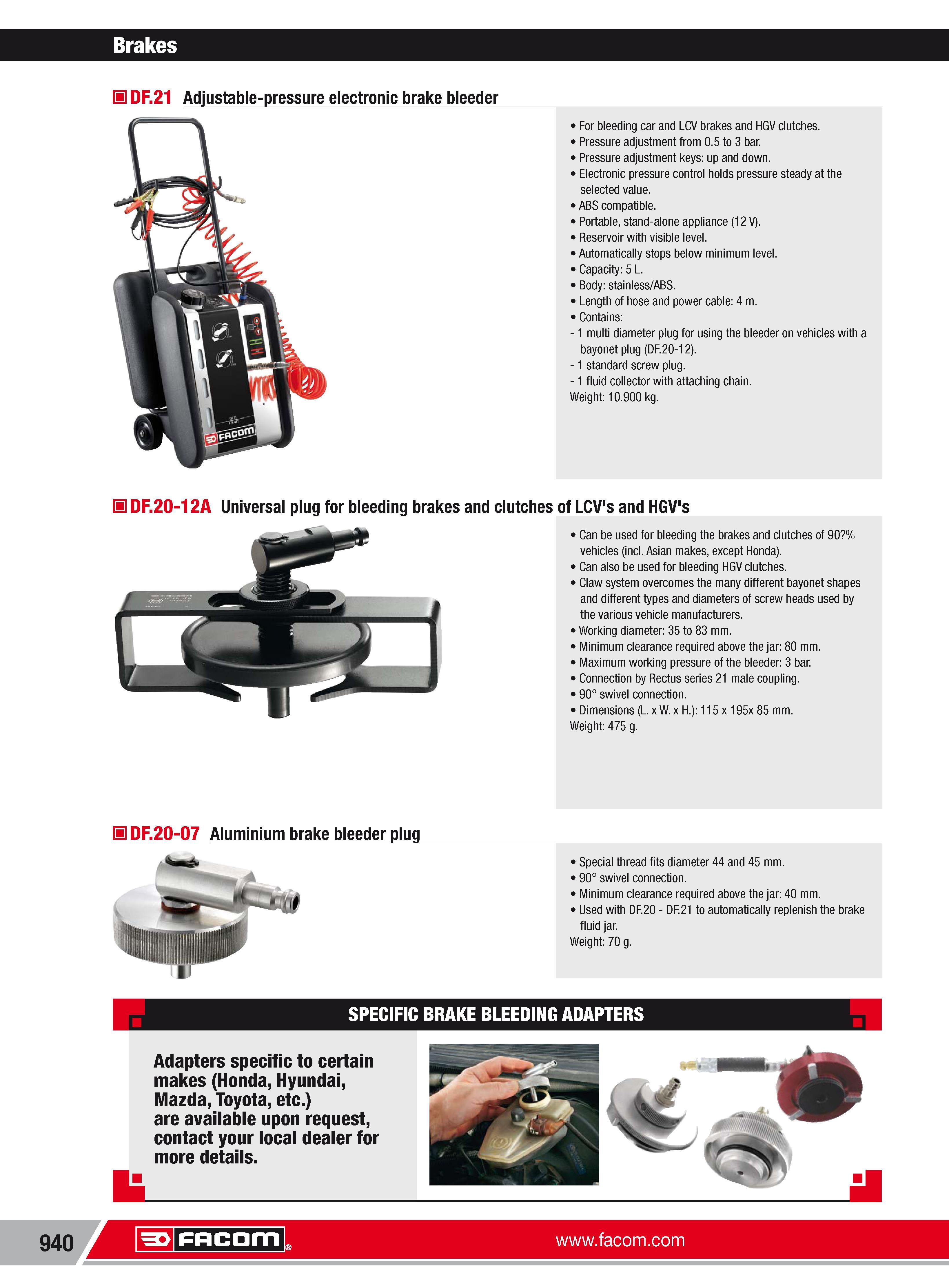

Brakes H DF.21 Adjustable-pressure electronic brake bleeder For bleeding car and LCV brakes and HGV clutches. Pressure adjustment from 0.5 to 3 bar. Pressure adjustment keys up and down. Electronic pressure control holds pressure steady at the selected value. ABS compatible. Portable stand-alone appliance (12 V). Reservoir with visible level. Automatically stops below minimum level. Capacity 5 L. Body stainless ABS. Length of hose and power cable 4 m. Contains 1 multi diameter plug for using the bleeder on vehicles with a bayonet plug (DF.20-12). 1 standard screw plug. -1 fluid collector with attaching chain. Weight 10.900 kg. H DF.20-12A Universal plug for bleeding brakes and clutches of LCV's and HGV's Can be used for bleeding the brakes and clutches of 90 vehicles (incl. Asian makes except Honda). Can also be used for bleeding HGV clutches. Claw system overcomes the many different bayonet shapes and different types and diameters of screw heads used by the various vehicle manufacturers. Working diameter 35 to 83 mm. Minimum clearance required above the jar 80 mm. Maximum working pressure of the bleeder 3 bar. Connection by Rectus series 21 male coupling. 90 swivel connection. Dimensions (L. xW.x H.) 115x 195x85 mm. Weight 475 g. H DF.20-07 Aluminium brake bleeder plug 940 Special thread fits diameter 44 and 45 mm. 90 swivel connection. Minimum clearance required above the jar 40 mm. Used with DF.20 DF.21 to automatically replenish the brake fluid jar. Weight 70 g. SPECIFIC BRAKE BLEEDING ADAPTERS Adapters specific to certain makes (Honda Hyundai Mazda Toyota etc.) are available upon request contact your local dealer for more details. Facom
