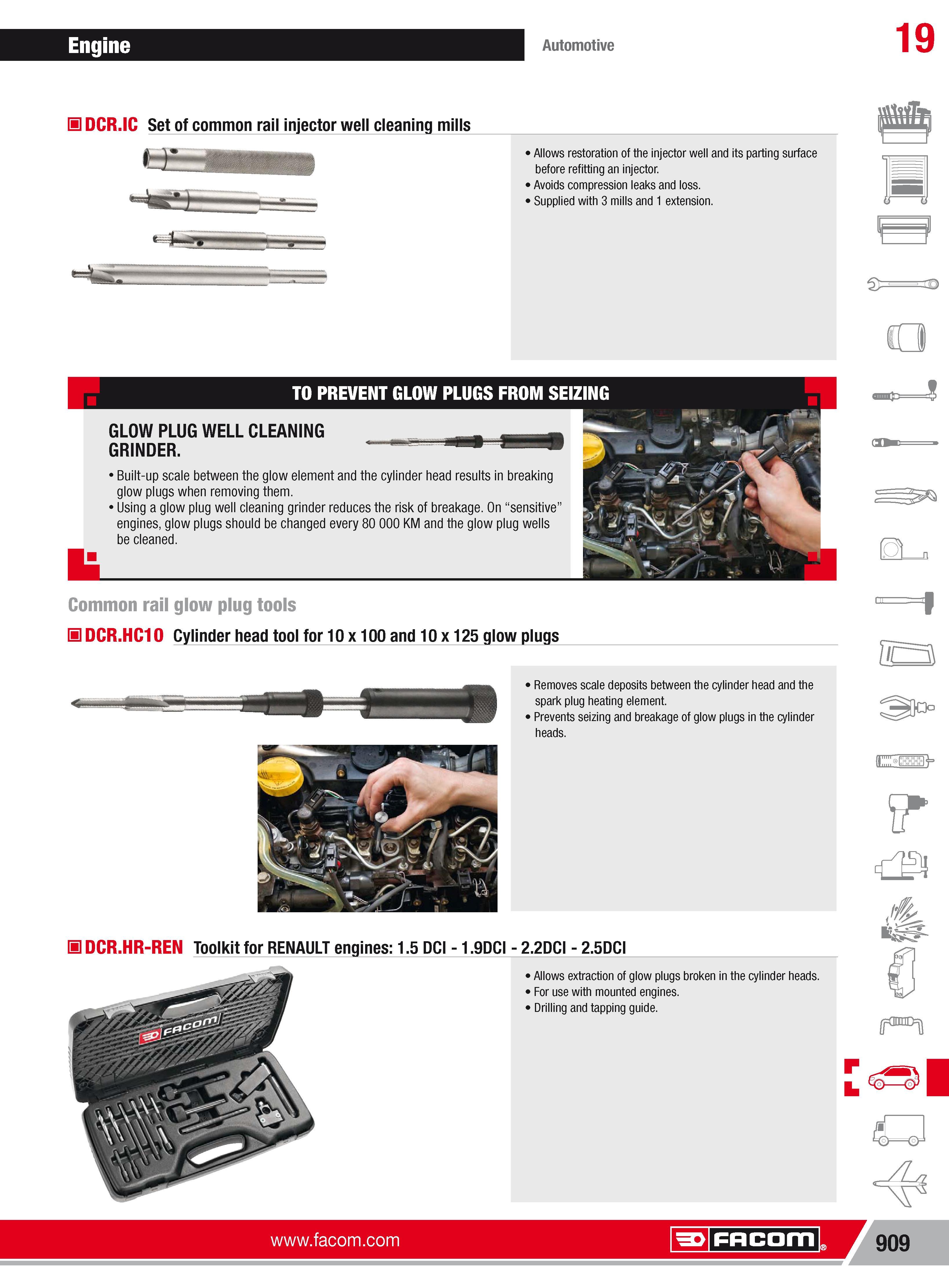

935 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.909 |
|||||
Каталог FACOM 2013 Инструмент Оборудование Стр. 909 0935 ENG Lab2u Engine Automotive 19 H DCR.IC Set of common rail injector well cleaning mills Allows restoration of the injector well and its parting surface before refitting an injector. Avoids compression leaks and loss. Supplied with 3 mills and 1 extension. GLOW PLUG WELL CLEANING GRINDER. Built-up scale between the glow element and the cylinder head results in breaking glow plugs when removing them. Using a glow plug well cleaning grinder reduces the risk of breakage. On sensitive engines glow plugs should be changed every 80 000 KM and the glow plug wells be cleaned. Common rail glow plug tools H DCR.HC10 Cylinder head tool for 10 x 100 and 10 x 125 glow plugs Removes scale deposits between the cylinder head and the spark plug heating element. Prevents seizing and breakage of glow plugs in the cylinder heads. H DCR.HR-REN Toolkit for RENAULT engines 1.5 DCI 1.9DCI 2.2DCI 2.5DCI Allows extraction of glow plugs broken in the cylinder heads. For use with mounted engines. Drilling and tapping guide. i TO PREVENT GLOW PLUGS FROM SEIZING Facom 909 |
|||||
