927 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.901

Каталог FACOM 2013 Инструмент Оборудование Стр. 901 0927 ENG Lab2u

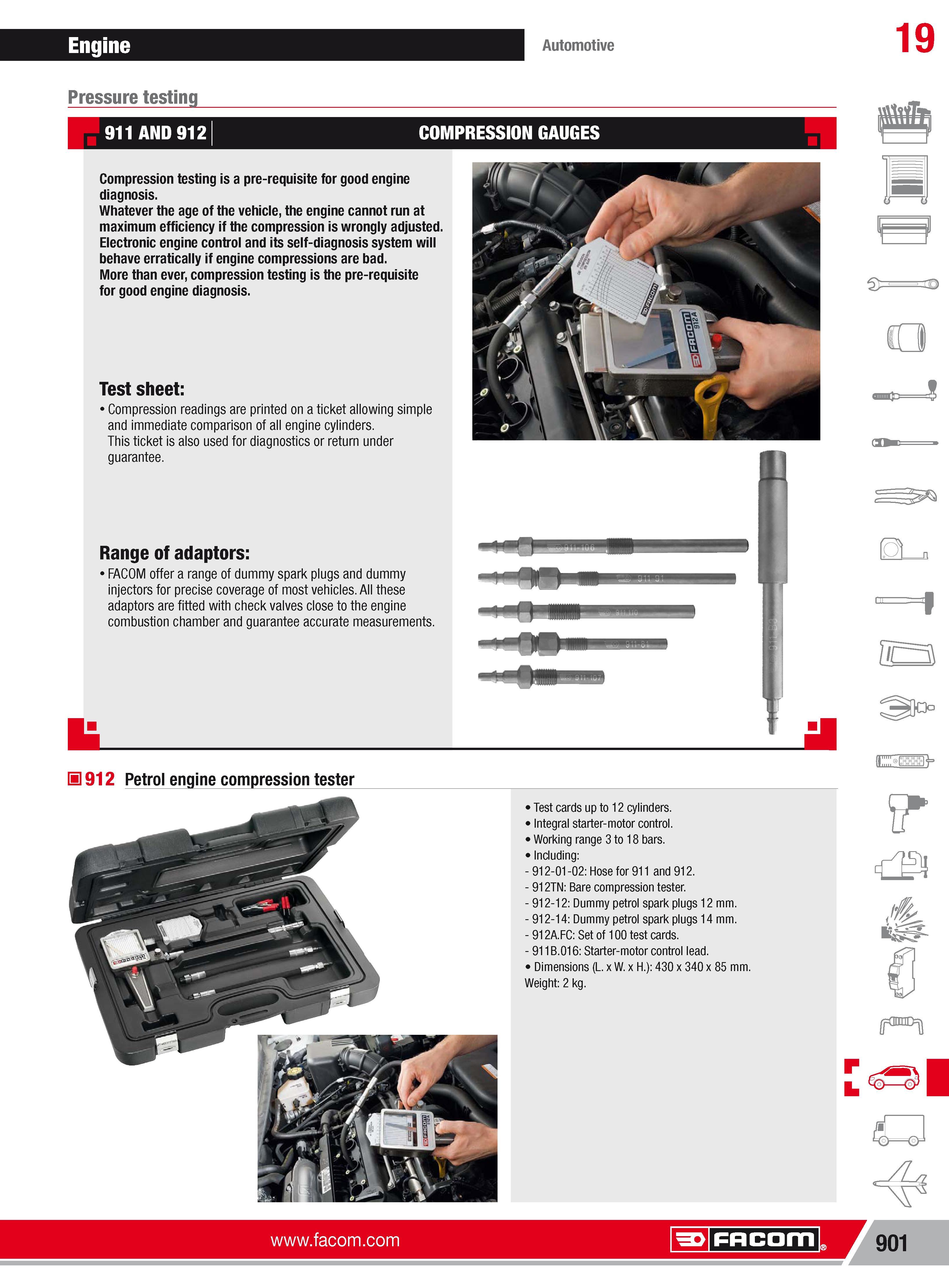

Engine Automotive 19 Pressure testing COMPRESSION GAUGES Compression testing is a pre-requisite for good engine diagnosis. Whatever the age of the vehicle the engine cannot run at maximum efficiency if the compression is wrongly adjusted. Electronic engine control and its self-diagnosis system will behave erratically if engine compressions are bad. More than ever compression testing is the pre-requisite for good engine diagnosis. Test sheet Compression readings are printed on a ticket allowing simple and immediate comparison of all engine cylinders. This ticket is also used for diagnostics or return under guarantee. Range of adaptors FACOM offer a range of dummy spark plugs and dummy injectors for precise coverage of most vehicles. All these adaptors are fitted with checkvalves close to the engine combustion chamber and guarantee accurate measurements. H 912 Petrol engine compression tester Test cards upto12 cylinders. Integral starter-motor control. Working range 3to18 bars. Including 912-01-02 Hose for 911 and 912. 912TN Bare compression tester. 912-12 Dummy petrol spark plugs 12 mm. 912-14 Dummy petrol spark plugs 14 mm. 912A.FC Set of 100 test cards. 911B.016 Starter-motor control lead. Dimensions (L.xW.x H.):430x340x 85 mm. Weight 2 kg. Facom 901
