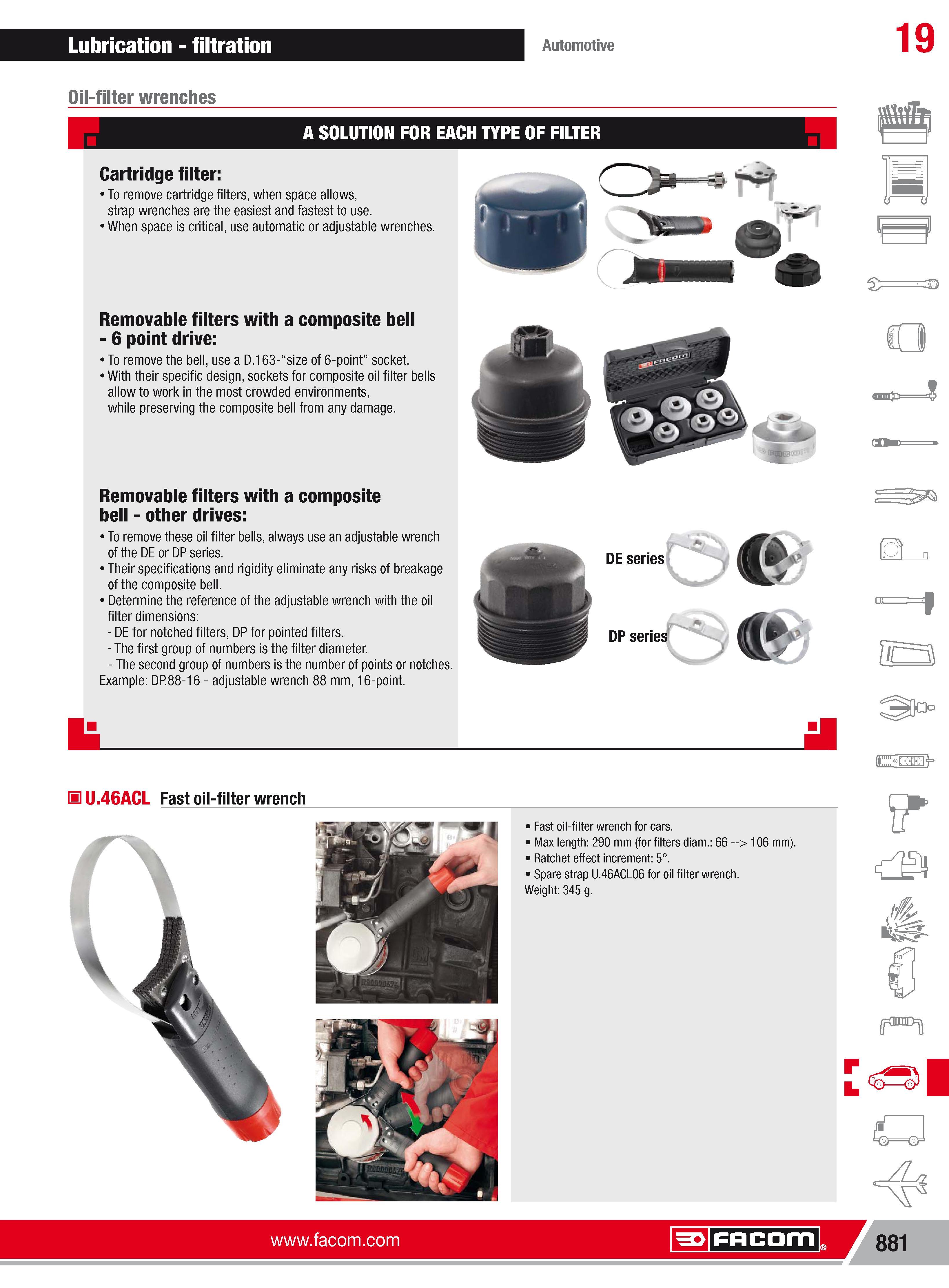

907 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.881

Каталог FACOM 2013 Инструмент Оборудование Стр. 881 0907 ENG Lab2u

Lubrication filtration Automotive 19 Oil-filter wrenches A SOLUTION FOR EACH TYPE OF FILTER Cartridge filter To remove cartridge filters when space allows strap wrenches are the easiest and fastest to use. When space is critical use automatic or adjustable wrenches. Removable filters with a composite bell 6 point drive To remove the bell use a D.163-size of 6-point socket. With their specific design sockets for composite oil filter bells allow to work in the most crowded environments while preserving the composite bell from any damage. Removable filters with a composite bell other drives To remove these oil filter bells always use an adjustable wrench of the DE or DP series. Their specifications and rigidity eliminate any risks of breakage of the composite bell. Determine the reference of the adjustable wrench with the oil filterdimensions DE for notched filters DP for pointed filters. The first group of numbers is the filter diameter. The second group of numbers is the number of points or notches. Example DP.88-16- adjustable wrench 88 mm 16-point. 3 DE series DP series ll U.46ACL Fast oil-filter wrench V Fast oil-filter wrench for cars. Max length 290 mm (forfilters diam. 66 106 mm). Ratchet effect increment 5. Spare strap U.46ACL06 for oil filter wrench. Weight 345 g. Facom 881
