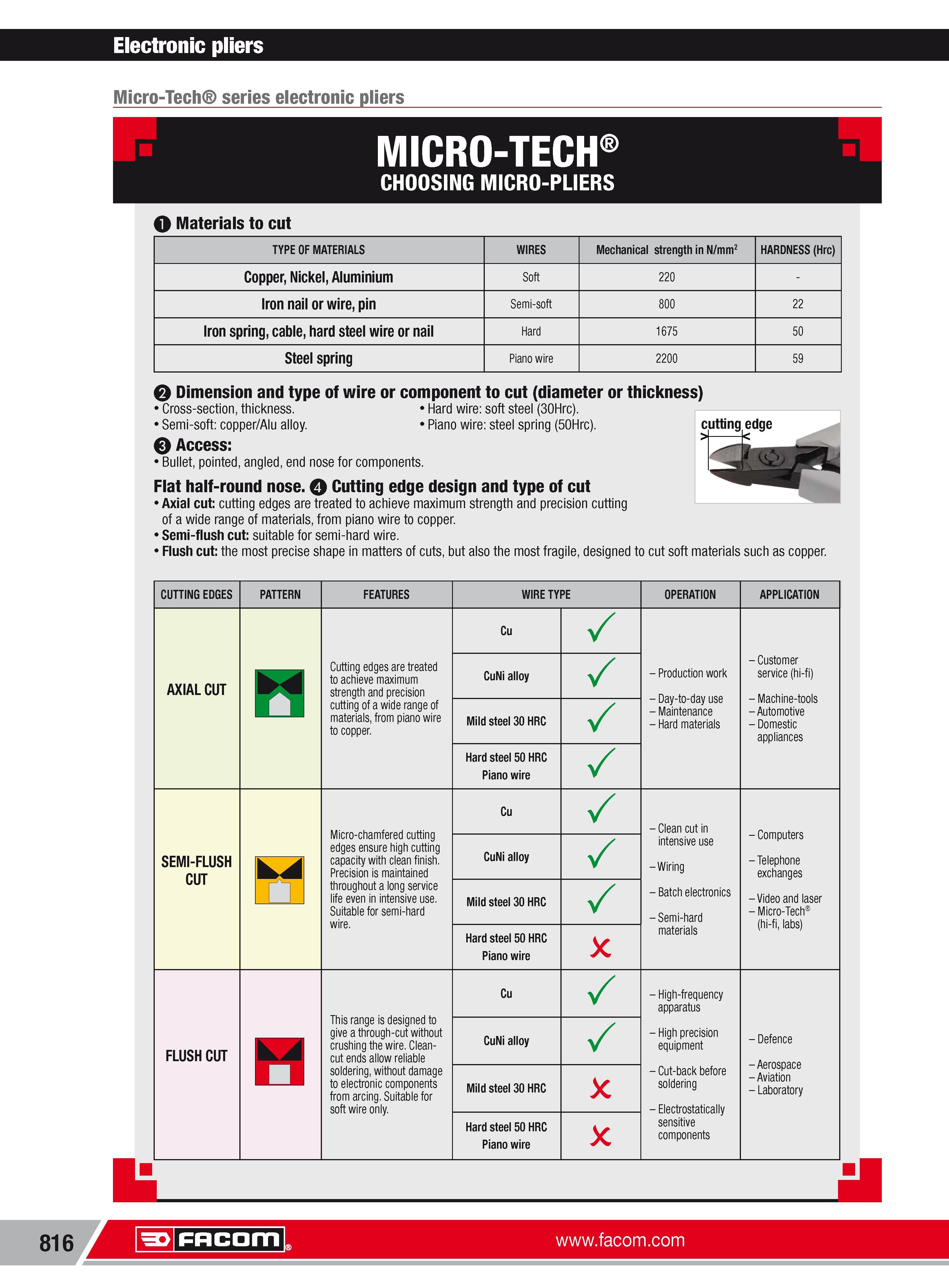

842 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.816

Каталог FACOM 2013 Инструмент Оборудование Стр. 816 0842 ENG Lab2u

Electronic pliers Micro-Tech series electronic pliers r MICRO-TECH CHOOSING MICRO-PLIERS O Materials to cut TYPE OF MATERIALS WIRES Mechanical strength in N mm2 HARDNESS (Hrc) Copper Nickel Aluminium Soft 220 Iron nail or wire pin Semi-soft 800 22 Iron spring cable hard steel wire or nail Hard 1675 50 Steel spring Piano wire 2200 59 cutting edge Dimension and type of wire or component to cut (diameter or thickness) Cross-section thickness. Hard wire soft steel (30Hrc). Semi-soft copper Alu alloy. Piano wire steel spring (50Hrc). 0 Access Bullet pointed angled end nose for components. Flat half-round nose. O Cutting edge design and type of cut Axial cut cutting edges are treated to achieve maximum strength and precision cutting of a wide range of materials from piano wire to copper. Semi-flush cut suitable for semi-hard wire. Flush cut the most precise shape in matters of cuts but also the most fragile designed to cut soft materials such as copper. CUTTING EDGES PATTERN FEATURES WIRE TYPE OPERATION APPLICATION Cu Cutting edges are treated to achieve maximum strength and precision Production work Day-to-day use Maintenance Customer service (hi-fi) Machine-tools -Automotive AXIAL CUT CuNi alloy cutting of a wide range of materials from piano wire to copper. Mild steel 30 HRC Hard materials Domestic appliances Hard steel 50 HRC Piano wire Micro-chamfered cutting edges ensure high cutting Cu Clean cut in Computers SEMI-FLUSH CUT CuNi alloy intensive use capacity with clean finish. Precision is maintained -Wiring -Telephone exchanges m throughout a long service life even in intensive use. Mild steel 30 HRC Batch electronics -Video and laser Suitable for semi-hard wire. -Semi-hard Micro-Tech (hi-fi labs) Hard steel 50 HRC Piano wire X materials This range is designed to give a through-cut without Cu High-frequency apparatus CuNi alloy High precision Defence -Aerospace -Aviation FLUSH CUT crushing the wire. Clean-cut ends allow reliable equipment n soldering without damage to electronic components from arcing. Suitable for soft wire only. Mild steel 30 HRC i Cut-back before soldering Electrostatically sensitive components X Laboratory Hard steel 50 HRC Piano wire X 816 Facom
