835 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.809

Каталог FACOM 2013 Инструмент Оборудование Стр. 809 0835 ENG Lab2u

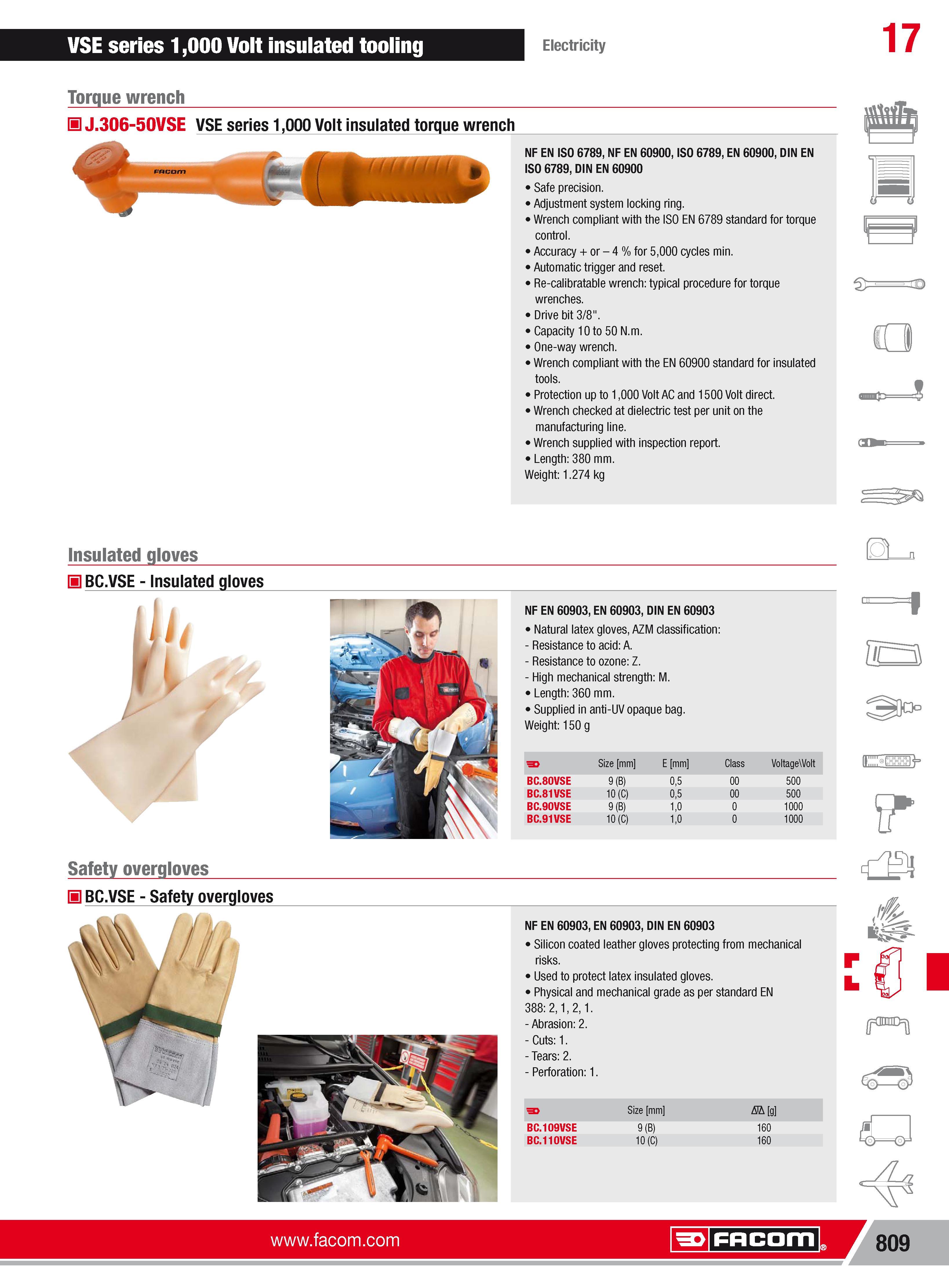

VSE series 1000 Volt insulated tooling Electricity 17 Torque wrench H J.306-50VSE VSE series 1000 Volt insulated torque wrench NF EN ISO 6789 NF EN 60900 ISO 6789 EN 60900 DIN EN ISO 6789 DIN EN 60900 Safe precision. Adjustment system locking ring. Wrench compliant with the ISO EN 6789 standard for torque control. Accuracy + or-4 for 5000 cycles min. Automatic trigger and reset. Re-calibratable wrench typical procedure for torque wrenches. Drive bit 3 8". Capacity 10to50 N.m. One-way wrench. Wrench compliant with the EN 60900 standard for insulated tools. Protection up to 1000 Volt AC and 1500 Volt direct. Wrench checked at dielectric test per unit on the manufacturing line. Wrench supplied with inspection report. Length 380 mm. Weight 1.274 kg 4 cr- -Hr. Insulated gloves H BC.VSE Insulated gloves NF EN 60903 EN 60903 DIN EN 60903 Natural latex gloves AZM classification Resistance to acid A. Resistance to ozone Z. High mechanical strength M. Length 360 mm. Supplied in anti-UV opaque bag. Weight 150 g Safety overgloves H BC.VSE Safety overgloves NF EN 60903 EN 60903 DIN EN 60903 Silicon coated leather gloves protecting from mechanical risks. Used to protect latex insulated gloves. Physical and mechanical grade as per standard EN 388 2121. -Abrasion 2. Cuts 1. Tears 2. Perforation 1. Size mm E mm Class Voltage Volt BC.80VSE 9(B) 05 00 500 BC.81VSE 10(C) 05 00 500 BC.90VSE 9(B) 10 0 1000 BC.91VSE 10(C) 10 0 1000 Size mm Nh g BC.109VSE 9(B) 160 BC.110VSE 10(C) 160 Facom 809
