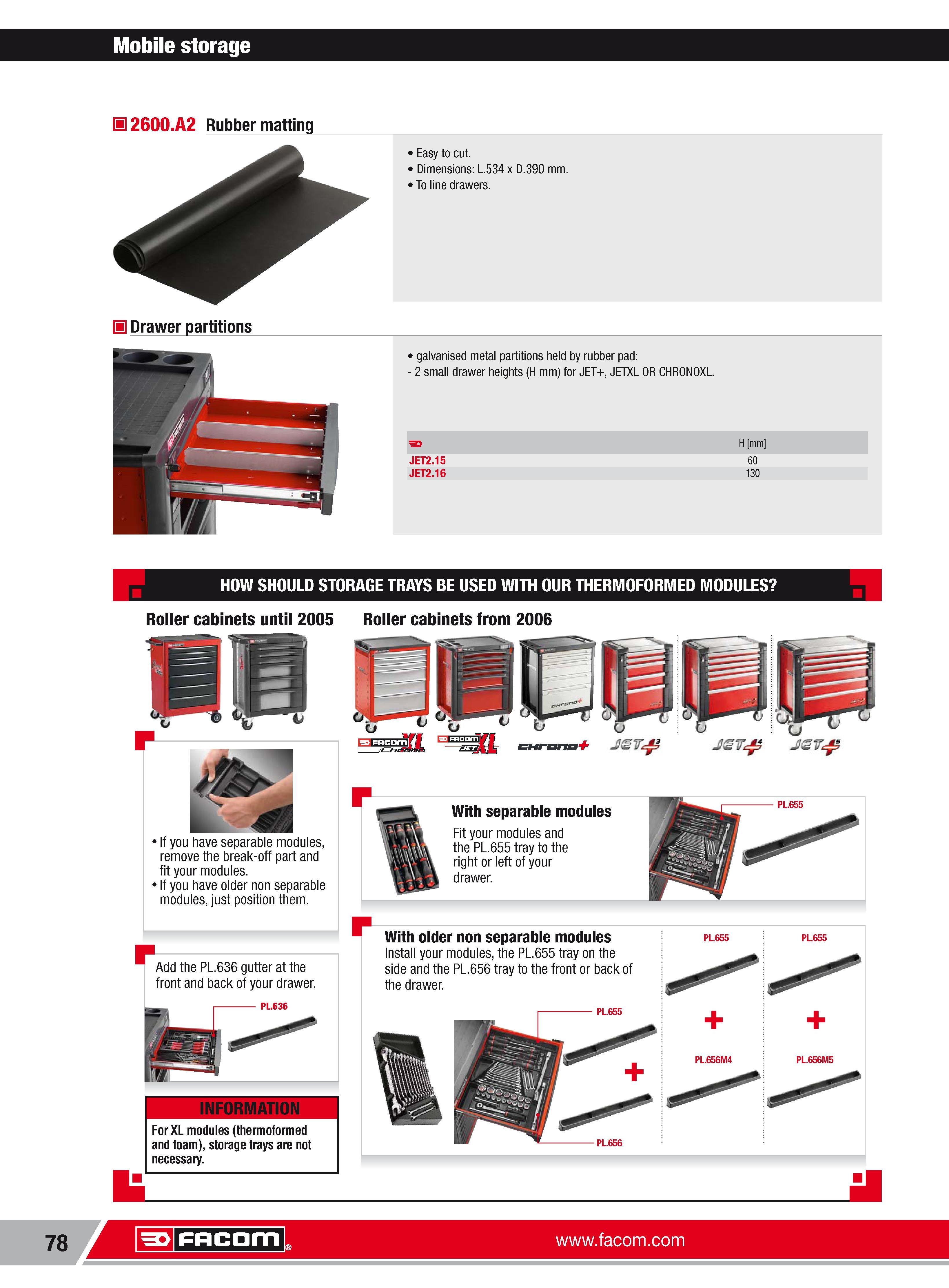

Mobile storage H2600.A2 Rubber matting H Drawer partitions Easy to cut. Dimensions L.534 x D.390 mm. To line drawers. galvanised metal partitions held by rubber pad 2 small drawer heights (H mm) for JET+ JETXL OR CHRONOXL. 3 H mm JET2.15 60 JET2.16 130 HOW SHOULD STORAGE TRAYS BE USED WITH OUR THERMOFORMED MODULES Roller cabinets until 2005 Roller cabinets from 2006 If you have separable modules remove the break-off part and fit yourmodules. If you have older non separable modules just position them. With separable modules Fit your modules and the PL.655 tray to the right or left of your drawer. Add the PL.636 gutter at the front and back of your drawer. PL.636 For XL modules (thermoformed and foam) storage trays are not necessary. With older non separable modules Install your modules the PL.655 tray on the side and the PL.656 tray to the front or back of the drawer. PL.656 PL.655 PL.656M4 PL.655 PL.656M5 78 Facom
