100 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.74

Каталог FACOM 2013 Инструмент Оборудование Стр. 74 0100 ENG Lab2u

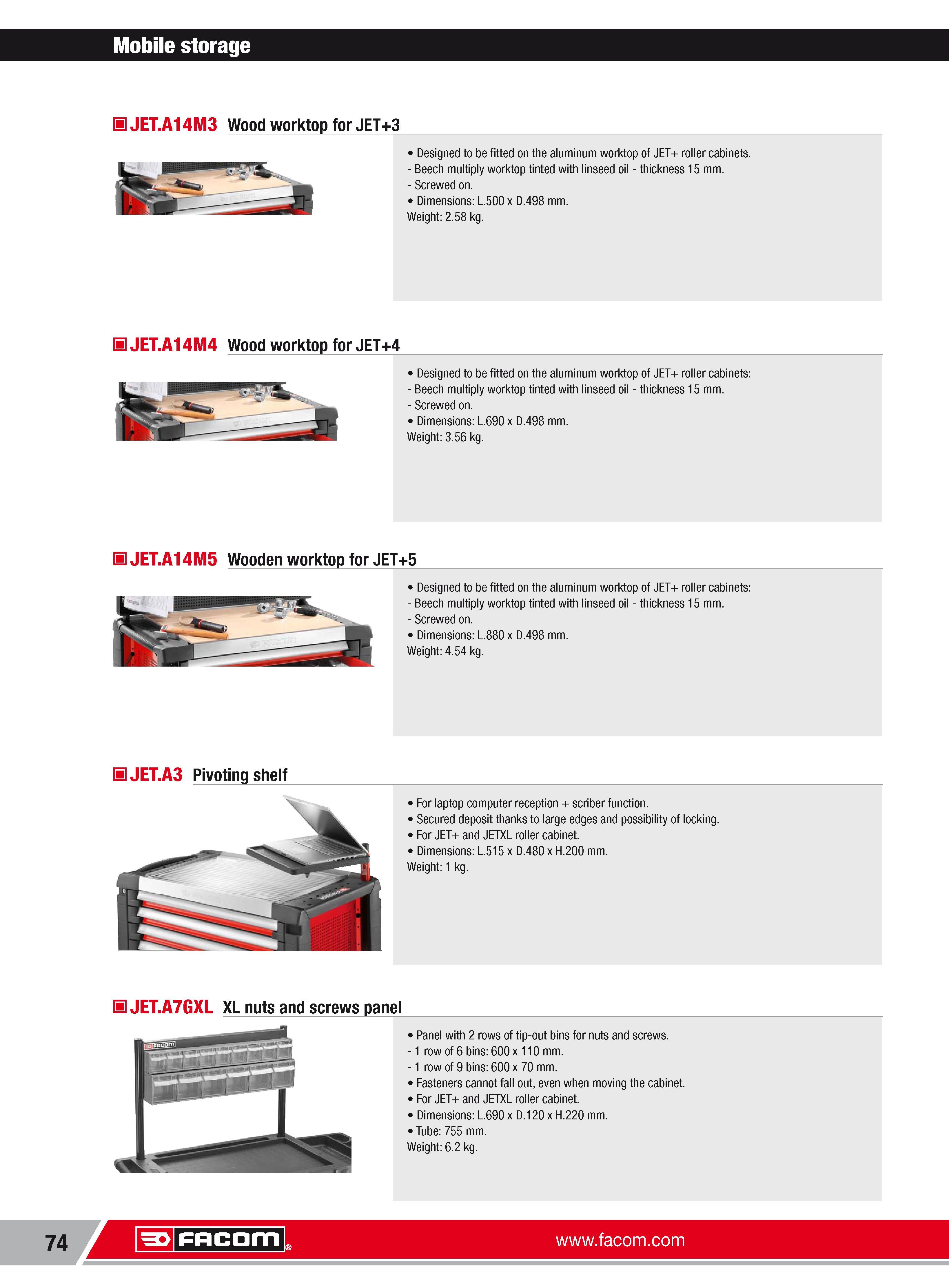

Mobile storage H JET.A14M3 Wood worktop for JET+3 Designed to be fitted on the aluminum worktop of JET+ roller cabinets. Beech multiply worktop tinted with linseed oil thickness 15 mm. Screwed on. Dimensions L.500 x D.498 mm. Weight 2.58 kg. H JET.A14M4 Wood worktop for JET+4 Designed to be fitted on the aluminum worktop of JET+ roller cabinets Beech multiply worktop tinted with linseed oil thickness 15 mm. Screwed on. Dimensions L.690 x D.498 mm. Weight 3.56 kg. JET.A14M5 Wooden worktop for JET+5 Designed to be fitted on the aluminum worktop of JET+ roller cabinets Beech multiply worktop tinted with linseed oil thickness 15 mm. Screwed on. Dimensions L.880 x D.498 mm. Weight 4.54 kg. HJET.A3 Pivoting shelf For laptop computer reception + scriber function. Secured deposit thanks to large edges and possibility of locking. For JET+ and JETXL roller cabinet. Dimensions L.515 x D.480 x H.200 mm. Weight 1 kg. JET.A7GXL XL nuts and screws panel Panel with 2 rows of tip-out bins for nuts and screws. -1 row of 6 bins 600 x 110 mm. -1 row of 9 bins 600 x 70 mm. Fasteners cannot fall out even when moving the cabinet. For JET+ and JETXL roller cabinet. Dimensions L.690 xD.120x H.220 mm. Tube 755 mm. Weight 6.2 kg. 74 Facom
