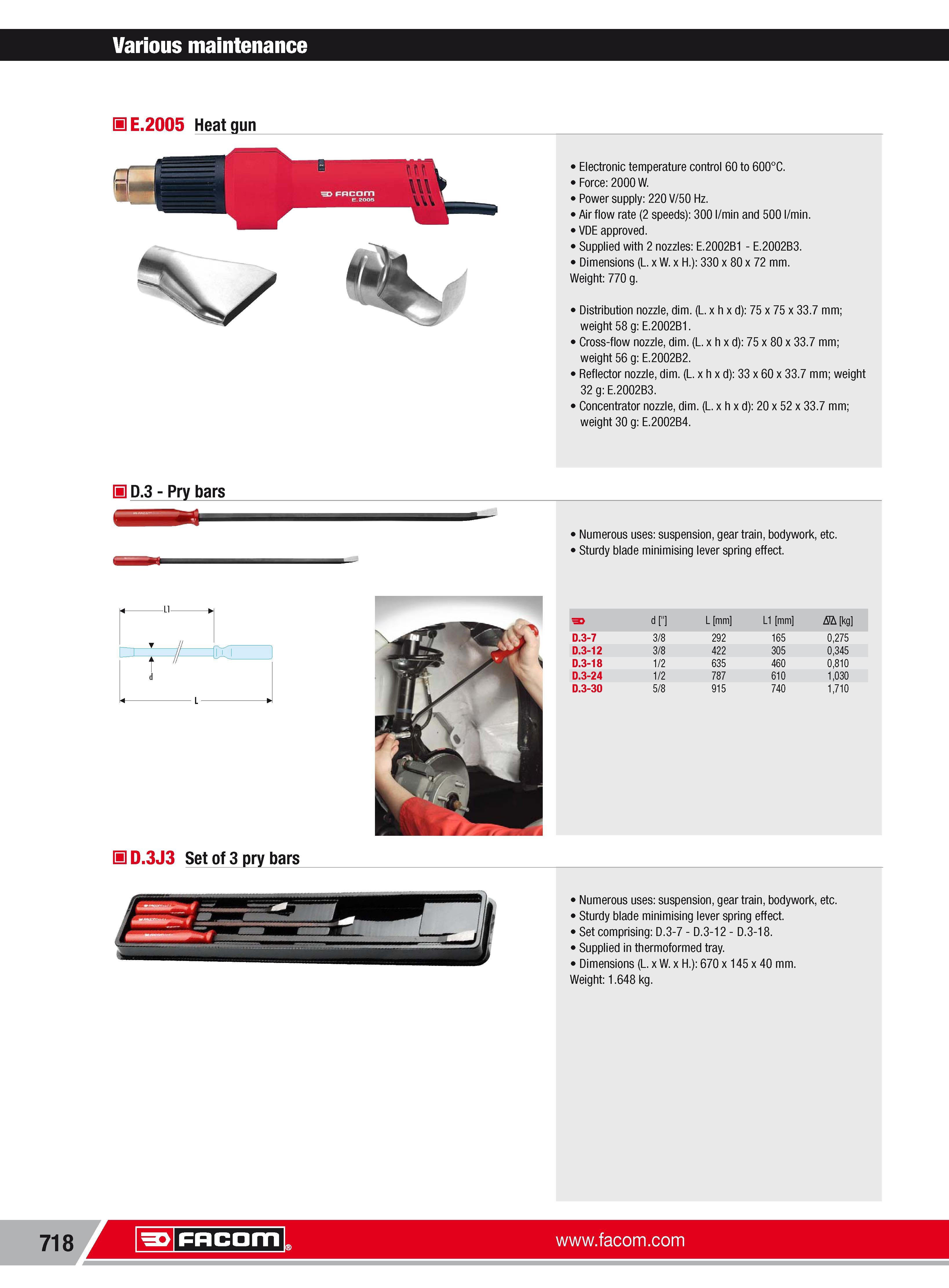

744 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.718

Каталог FACOM 2013 Инструмент Оборудование Стр. 718 0744 ENG Lab2u

Various maintenance HE.2005 Heat gun Electronic temperature control 60 to 600oC. Force 2000 W. Power supply 220 V 50 Hz. Air flow rate (2 speeds) 300 l min and 500 l min. VDE approved. Supplied with 2 nozzles E.2002B1 E.2002B3. Dimensions (L.xW.x H.) 330x80x72 mm. Weight 770 g. Distribution nozzle dim. (L. xhx d) 75x75x 33.7 mm; weight 58 g E.2002B1. Cross-flow nozzle dim. (L. xhx d) 75x80x 33.7 mm; weight 56 g E.2002B2. Rejector nozzle dim. (L. xhx d) 33x60x 33.7 mm; weight 32 g E.2002B3. Concentrator nozzle dim. (L. xhx d) 20x52x 33.7 mm; weight 30 g E.2002B4. H D.3 Pry bars L1 Numerous uses suspension gear train bodywork etc. Sturdy blade minimising lever spring effect. d " L mm L1 mm Nh kg D.3-7 3 8 292 165 0275 D.3-12 3 8 422 305 0345 D.3-18 1 2 635 460 0810 D.3-24 1 2 787 610 1030 D.3-30 5 8 915 740 1710 HD.3J3 Set of 3 pry bars Numerous uses suspension gear train bodywork etc. Sturdy blade minimising lever spring effect. Set comprising D.3-7 D.3-12 D.3-18. Supplied in thermoformed tray. Dimensions (L.xW.x H.) 670x 145x40 mm. Weight 1.648 kg. 718 Facom d
