737 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.711

Каталог FACOM 2013 Инструмент Оборудование Стр. 711 0737 ENG Lab2u

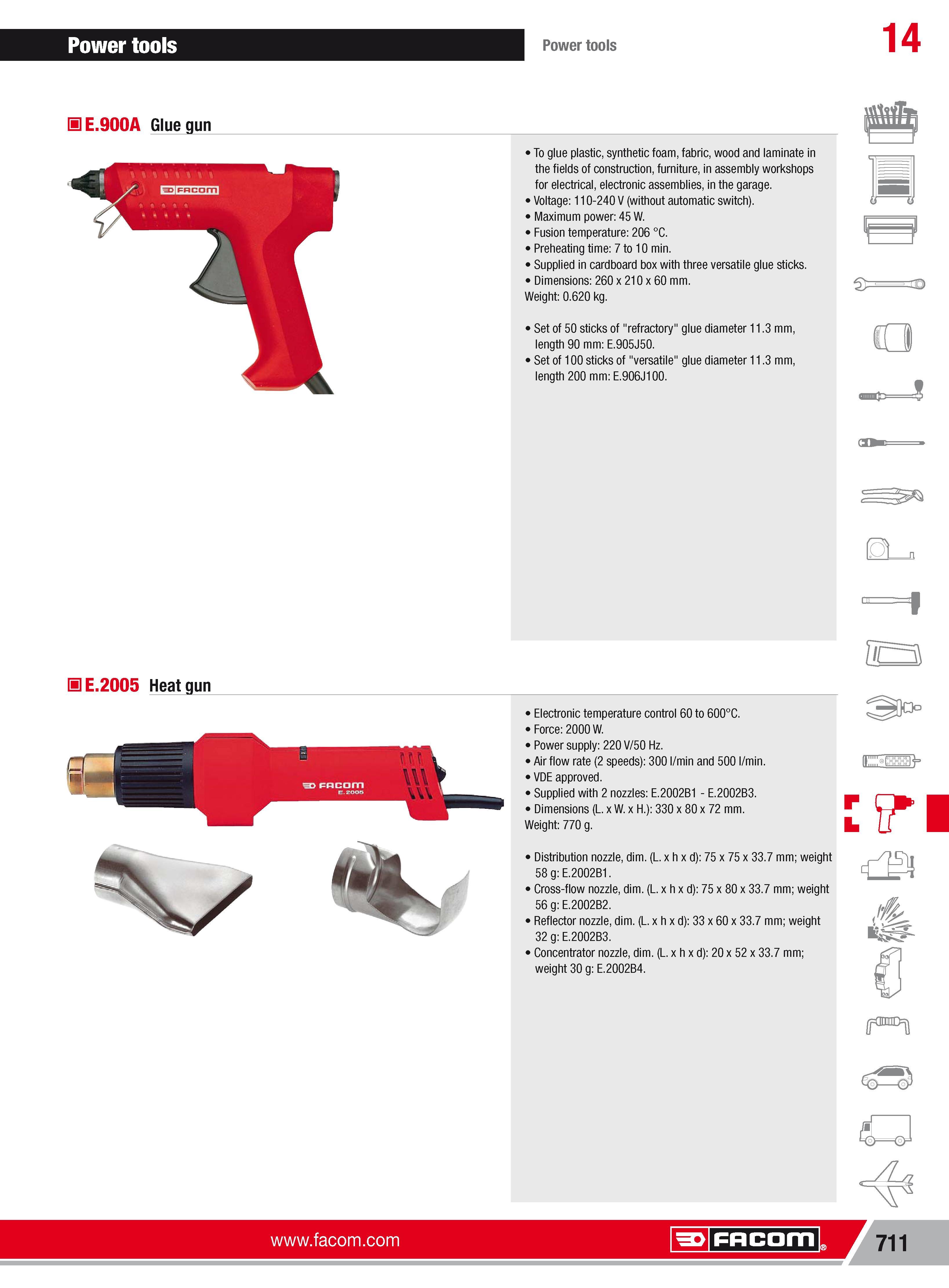

Power tools Power tools 14 HE.900A Glue gun To glue plastic synthetic foam fabric wood and laminate in the fields of construction furniture in assembly workshops for electrical electronic assemblies in the garage. Voltage 110-240 V (without automatic switch). Maximum power 45 W. Fusion temperature 206 C. Preheating time 7to10 min. Supplied in cardboard box with three versatile glue sticks. Dimensions 260 x210x60 mm. Weight 0.620 kg. Set of 50 sticks of "refractory" glue diameter 11.3 mm length 90 mm E.905J50. Set of 100 sticks of "versatile" glue diameter 11.3 mm length 200 mm E.906J100. 4 HE.2005 Heat gun Electronic temperature control 60 to 600oC. Force 2000 W. Power supply 220 V 50 Hz. Air flow rate (2 speeds) 300 l min and 500 l min. VDE approved. Supplied with 2 nozzles E.2002B1 E.2002B3. Dimensions (L.xW.x H.) 330x80x72 mm. Weight 770 g. Distribution nozzle dim. (L. xhx d) 75x 75x 33.7 mm; weight 58g:E.2002B1. Cross-flow nozzle dim. (L. xhx d) 75x80x 33.7 mm; weight 56 g E.2002B2. Reflector nozzle dim. (L. xhx d) 33x60x 33.7 mm; weight 32 g E.2002B3. Concentrator nozzle dim. (L. xhx d) 20x 52x 33.7 mm; weight 30 g E.2002B4. Facom 711
