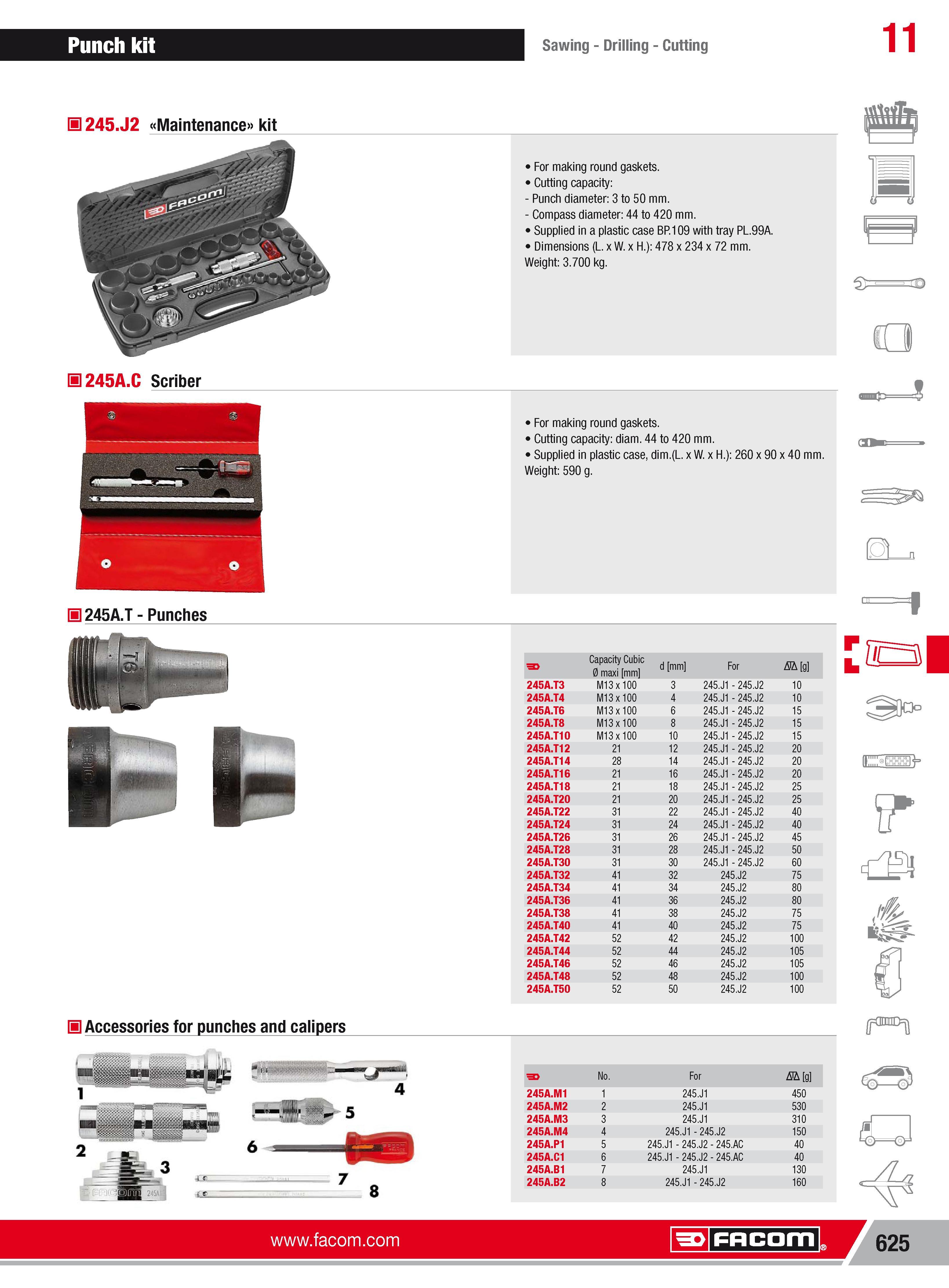

Punch kit Sawing Drilling Cutting 11 H 245.J2 Maintenance kit H245A.C Scriber H 245A.T Punches For making round gaskets. Cutting capacity Punch diameter 3 to 50 mm. Compass diameter 44 to 420 mm. Supplied in a plastic case BP.109 with tray PL.99A. Dimensions (L.xW.x H.) 478x 234x 72 mm. Weight 3.700 kg. s c For making round gaskets. Cutting capacity diam. 44 to 420 mm. Supplied in plastic case dim.(L. xW.x H. Weight 590 g. 260x90x40 mm. Capacity Cubic 0 maxi mm d mm For Nh g 245A.T3 M13x100 3 245.J1 245.J2 10 245A.T4 M13x100 4 245.J1 245.J2 10 245A.T6 M13x100 6 245.J1 245.J2 15 245A.T8 M13x100 8 245.J1 245.J2 15 245A.T10 M13x100 10 245.J1 245.J2 15 245A.T12 21 12 245.J1 245.J2 20 245A.T14 28 14 245.J1 245.J2 20 245A.T16 21 16 245.J1 245.J2 20 245A.T18 21 18 245.J1 245.J2 25 245A.T20 21 20 245.J1 245.J2 25 245A.T22 31 22 245.J1 245.J2 40 245A.T24 31 24 245.J1 245.J2 40 245A.T26 31 26 245.J1 245.J2 45 245A.T28 31 28 245.J1 245.J2 50 245A.T30 31 30 245.J1 245.J2 60 245A.T32 41 32 245.J2 75 245A.T34 41 34 245.J2 80 245A.T36 41 36 245.J2 80 245A.T38 41 38 245.J2 75 245A.T40 41 40 245.J2 75 245A.T42 52 42 245.J2 100 245A.T44 52 44 245.J2 105 245A.T46 52 46 245.J2 105 245A.T48 52 48 245.J2 100 245A.T50 52 50 245.J2 100 IE3 H Accessories for punches and calipers No. For Nh g 245A.M1 1 245.J1 450 245A.M2 2 245.J1 530 245A.M3 3 245.J1 310 245A.M4 4 245.J1 245.J2 150 245A.P1 5 245.J1 245.J2 245.AC 40 245A.C1 6 245.J1 245.J2 245.AC 40 245A.B1 7 245.J1 130 245A.B2 8 245.J1 245.J2 160 Facom 625 Facom
